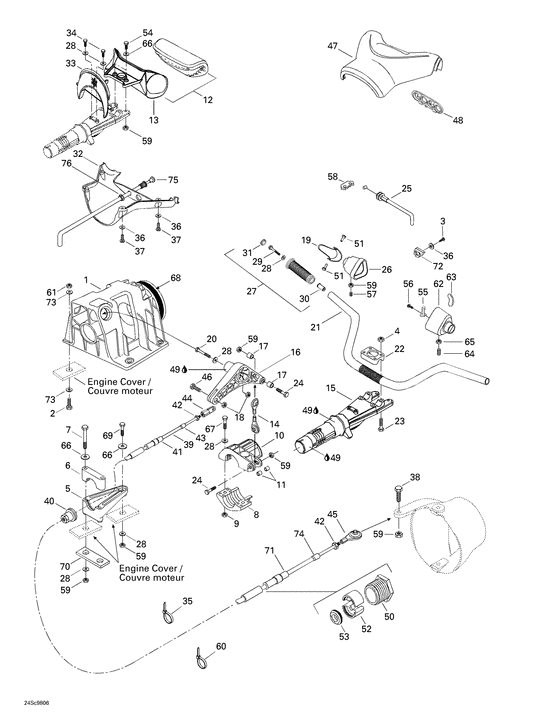

07- steering system Diagram Bombardier XP
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
277000617
Support direct.*support-steer.
|
277000617 |
— | ||
|
2
|
2
210100013
Screw-hex.cap din.931a2
|
210100013 |
— | ||
| replacement | |||||
|
2
|
2
207083560 Screw-hex.cap din.931a2 |
207083560 |
US $19 |
||
|
3
|
3
211100004
Screw-tapp.pan hd.ph.din.7981b-a2
|
211100004 |
— | ||
| replacement | |||||
|
3
|
3
209630960 Screw-tapp.pan hd.ph.din.7981c-a2 |
209630960 |
US $5.35 |
||
|
4
|
4
212000002
Nut-stop elastic din.985a2
|
212000002 |
— | ||
| replacement | |||||
|
4
|
4
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
5
|
5
277000737
Support cable *support-cable
|
277000737 |
— | ||
|
6
|
6
277000162
Palier support *thrust support
|
277000162 |
— | ||
|
7
|
7
215667060
Screw-hex.cap din.931a2
|
215667060 |
— | ||
| replacement | |||||
|
7
|
7
207067060 Screw-hex.cap din.931a2 |
207067060 |
US $72.40 |
||
|
8
|
8
277000519
Palier bras *thrust-arm
Includes 8 - 9.; |
277000519 |
— | ||
| replacement | |||||
|
8
|
8
277001473
Palier bras *thrust-arm
Includes 8 - 9.; |
277001473 |
— | ||
|
9
|
9
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
9
|
9
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
10
|
10
277000620
Bras tige dir. *arm-stem stee.
Includes 10 - 11.; |
277000620 |
— | ||
|
11
|
11
291000176
Entretoise *spacer
|
291000176 |
— | ||
|
12
|
12
277000627
Tampon guidon *pad-handle
Includes 12 - 13.; |
277000627 |
— | ||
|
13
|
13
277000687 Support tampon *support-pad |
277000687 |
US $19.33 |
||
|
14
|
14
277000369
Joint rotule *joint-ball
|
277000369 |
— | ||
| replacement | |||||
|
14
|
14
277000829 Joint rotule *joint-ball |
277000829 |
US $60.13 |
||
|
15
|
15
277000562400
Tige direction *stem-steering
|
277000562400 |
— | ||
|
16
|
16
277000772 Levier en l *lever-lIncludes 16 - 18.; |
277000772 |
US $25.45 |
||
|
17
|
17
291000176
Entretoise *spacer
|
291000176 |
— | ||
|
18
|
18
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
18
|
18
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
19
|
19
277000214
Manette acc. *handle-throttl
|
277000214 |
— | ||
| replacements | |||||
|
19
|
19
277000872 Log.man.acc. *housing-thrott |
277000872 |
US $26.49 |
||
|
19
|
19
277001485 Manette acc. *throttle handle |
277001485 |
US $17.82 |
||
|
20
|
20
210000004
Screw-hex.cap din.933a2
|
210000004 |
— | ||
| replacement | |||||
|
20
|
20
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
21
|
21
277000305
Guidon *bar-handle
|
277000305 |
— | ||
| replacements | |||||
|
21
|
21
277001450 Guidon *bar-handle |
277001450 |
US $149.89 |
||
|
21
|
21
295500691 Black handle grip kit |
295500691 |
US $36.72 |
||
|
22
|
22
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
23
|
23
215685060
Screw-hex.cap din.931a2
|
215685060 |
— | ||
| replacement | |||||
|
23
|
23
207085060 Screw-hex.cap din.931a2 |
207085060 |
US $10.65 |
||
|
24
|
24
215664060
Screw-hex.cap din.931a2
|
215664060 |
— | ||
| replacement | |||||
|
24
|
24
207064060 Screw-hex.cap din.931a2 |
207064060 |
US $21.80 |
||
|
25
|
25
277000755
Cable accelerat*cable-throttle
|
277000755 |
— | ||
|
26
|
26
277000285
Log.man.acc. *housing-thrott
|
277000285 |
— | ||
| replacements | |||||
|
26
|
26
277000872 Log.man.acc. *housing-thrott |
277000872 |
US $26.49 |
||
|
26
|
26
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
26
|
26
250000036 Screw-socket set m6x16 ss304-a2 |
250000036 |
US $16.30 |
||
|
27
|
27
295500110 Black handle grip kitIncludes 27 - 31.; |
295500110 |
US $45.80 |
||
|
28
|
28
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
28
|
28
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
29
|
29
211000031
Screw-plastite hex.wr.hd.unsl
|
211000031 |
— | ||
| replacement | |||||
|
29
|
29
243164560 Screw-plastite hex.wr.hd.unsl |
243164560 |
US $14.95 |
||
|
31
|
31
277000203 Capuchon gaine *cap-grip black |
277000203 |
US $20.02 |
||
|
32
|
32
277000625 Couvre guidon *cover-stee.inf |
277000625 |
US $111.13 |
||
|
33
|
33
277000549 Plaque mar.noir*plate-mar.blac |
277000549 |
US $21.39 |
||
|
34
|
34
211000036 Screw-forming hex.hd. |
211000036 |
US $10.65 |
||
|
35
|
35
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
36
|
36
213200004
Washer-flat din.125a-a2
|
213200004 |
— | ||
| replacement | |||||
|
36
|
36
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
37
|
37
211000033
Screw-pt.hex.flange k40 x 16
|
211000033 |
— | ||
| replacement | |||||
|
37
|
37
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
38
|
38
215663560
Screw-hex.cap din.931a2
|
215663560 |
— | ||
| replacement | |||||
|
38
|
38
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
39
|
39
277000773
Cable direction*cable-steering
Includes 39 - 43.; |
277000773 |
— | ||
| replacement | |||||
|
39
|
39
277001324 Cable direction*cable-steeringIncludes 39 - 43.; |
277001324 |
US $240.87 |
||
|
40
|
40
277000782 Bouton ajust. *knob-ajust. |
277000782 |
US $22.39 |
||
|
41
|
41
277000776
Embout grand *boot-large
|
277000776 |
— | ||
|
42
|
42
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
43
|
43
277000777
Embout petit *boot-small
|
277000777 |
— | ||
|
44
|
44
277000774
Joint a rotule *joint-ball
|
277000774 |
— | ||
| replacement | |||||
|
44
|
44
277001180 Joint a rotule *ball joint |
277001180 |
US $40.92 |
||
|
45
|
45
277000775 Joint a rotule *joint-ball |
277000775 |
US $58.48 |
||
|
46
|
46
211000022 Screw-hex.cap special |
211000022 |
US $27.86 |
||
|
47
|
47
277000623
Couvre guidon *cover-stee.sup
Includes 47 - 48.; |
277000623 |
— | ||
| replacement | |||||
|
47
|
47
277000833
Couvre guidon *cover-stee.sup
Includes 47 - 48.; |
277000833 |
— | ||
|
48
|
48
277000674
Plaque guidon *plug-stor.cov.
|
277000674 |
— | ||
| replacement | |||||
|
48
|
48
277001394 Plaque guidon *plate-steering |
277001394 |
US $27.29 |
||
|
49
|
49
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
50
|
50
277000784
Barrure cable *lock-cable
|
277000784 |
— | ||
| replacement | |||||
|
50
|
50
277001729 STEERING CABLE LOCK |
277001729 |
from US $14.20 |
||
|
51
|
51
277000381 Goupille *pin |
277000381 |
US $11.15 |
||
|
52
|
52
277000783
Demi-bague *half-ring
|
277000783 |
— | ||
|
53
|
53
293830063 Rondelle caout.*rubber washer |
293830063 |
US $24.30 |
||
|
54
|
54
210000006
Screw-hex.cap din.931a2
|
210000006 |
— | ||
| replacement | |||||
|
54
|
54
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
55
|
55
277000219
Plaque de retenue
|
277000219 |
— | ||
|
56
|
56
211000032
Screw-tapp.pan hd.ph.din.7981c-a2
|
211000032 |
— | ||
| replacement | |||||
|
56
|
56
209631360 Screw-tapp.pan hd.ph.din.7981c-a2 |
209631360 |
US $9.80 |
||
|
57
|
57
211000039
Screw-set socket din.914a2
|
211000039 |
— | ||
| replacement | |||||
|
57
|
57
206361260
Screw-set socket din.914a2
|
206361260 |
— | ||
|
58
|
58
277000279 Patte verrouil.*lock-tab |
277000279 |
US $45.65 |
||
|
59
|
59
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
59
|
59
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
60
|
60
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
61
|
61
212000002
Nut-stop elastic din.985a2
|
212000002 |
— | ||
| replacement | |||||
|
61
|
61
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
62
|
62
277000498
Log.gauche ass.*housing-assy.
Includes 62 - 65.; |
277000498 |
— | ||
| replacements | |||||
|
62
|
62
277000877 Log.gauche ass.*housing-assy.Includes 62 - 65.; |
277000877 |
US $66.77 |
||
|
62
|
62
250000036 Screw-socket set m6x16 ss304-a2Includes 62 - 65.; |
250000036 |
US $16.30 |
||
|
63
|
63
277000497 Bouton de vts *knob-vts |
277000497 |
US $60.95 |
||
|
64
|
64
211000039
Screw-set socket din.914a2
|
211000039 |
— | ||
| replacement | |||||
|
64
|
64
206361260
Screw-set socket din.914a2
|
206361260 |
— | ||
|
65
|
65
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
65
|
65
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
66
|
66
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
66
|
66
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
67
|
67
210000005
Screw-hex.cap din.933a2
|
210000005 |
— | ||
| replacement | |||||
|
67
|
67
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
68
|
68
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
68
|
68
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
69
|
69
215663560
Screw-hex.cap din.931a2
|
215663560 |
— | ||
| replacement | |||||
|
69
|
69
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
70
|
70
291000079 Plaque renfort *plate-reinf. |
291000079 |
US $14.67 |
||
|
71
|
71
277000776
Embout grand *boot-large
|
277000776 |
— | ||
|
72
|
72
293450153 Ajout *insert |
293450153 |
US $12.19 |
||
|
73
|
73
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
74
|
74
277000777
Embout petit *boot-small
|
277000777 |
— | ||
|
75
|
75
270000341 Cable etrang. *cable-chokeIncludes 75 - 76.; |
270000341 |
US $98.40 |
||
|
76
|
76
211100030
Nut-hexagonal hi-lex
|
