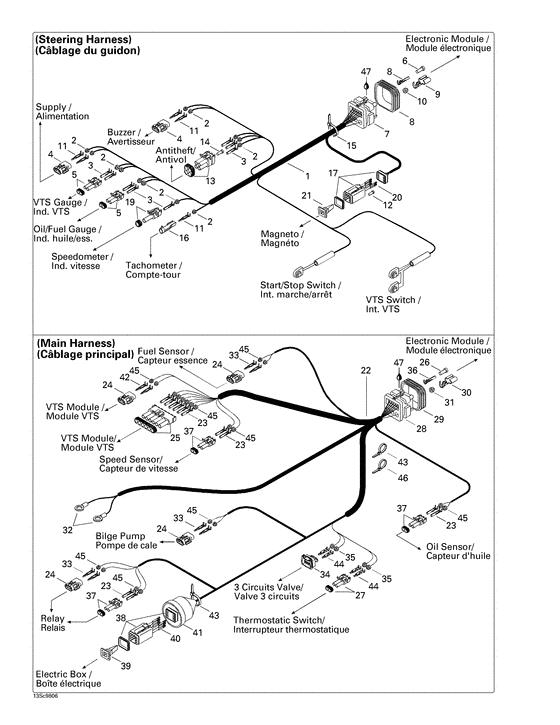

10- electrical harness Diagram Bombardier XP
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278001227
Cablage guidon *harness-steer.
Includes 1 - 21.; |
278001227 |
— | ||
|
2
|
2
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
3
|
3
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
4
|
4
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
5
|
5
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
6
|
6
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
7
|
7
278001062
Bloc 26circ.mal*housing-tab
Includes 7 - 8.; |
278001062 |
— | ||
|
8
|
8
278001307 Joint de fil *seal-wire |
278001307 |
US $15.27 |
||
|
9
|
9
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
10
|
10
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
11
|
11
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
12
|
12
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
13
|
13
278000891 Bloc 4 circ.mal*housing-tab |
278000891 |
US $13.21 |
||
|
14
|
14
278000216 Joint de fil *seal-wire |
278000216 |
US $21.15 |
||
|
15
|
15
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
16
|
16
278000161 Bloc 1 circ.fem*housing-tab |
278000161 |
US $9.40 |
||
|
17
|
17
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
18
|
18
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
19
|
19
278000219 Bloc 1 circ.mal*housing-tab |
278000219 |
US $13.60 |
||
|
20
|
20
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
21
|
21
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
22
|
22
278001228
Cablage princ. *harness-main
Includes 22 - 46.; |
278001228 |
— | ||
|
23
|
23
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
24
|
24
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
25
|
25
278000221 Bloc 6 circ.mal*housing-tab |
278000221 |
US $17.29 |
||
|
26
|
26
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
27
|
27
278001005 Bloc 2 circ.mal*housing-tab |
278001005 |
US $21.42 |
||
|
28
|
28
278001063
Bloc 26circ.mal*housing-tab
Includes 28 - 29.; |
278001063 |
— | ||
|
29
|
29
278001307 Joint de fil *seal-wire |
278001307 |
US $15.27 |
||
|
30
|
30
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
31
|
31
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
32
|
32
409003200
Cosse a anneau *barrel-open
|
409003200 |
— | ||
|
33
|
33
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
34
|
34
278001003 Bloc 2 circ.mal*housing-tab |
278001003 |
US $41.77 |
||
|
35
|
35
278000999 Joint de fil *seal-wire |
278000999 |
US $21.15 |
||
|
36
|
36
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
37
|
37
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
38
|
38
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
39
|
39
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
40
|
40
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
41
|
41
570150700
Prot.inter. *boot-switch
|
570150700 |
— | ||
|
42
|
42
409004300 Cosse male *terminal-male |
409004300 |
US $36.20 |
||
|
43
|
43
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
44
|
44
278000998 Cosse femelle *terminal-femelle |
278000998 |
US $58.70 |
||
|
45
|
45
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
46
|
46
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
47
|
47
293800051
Lubrifiant - deoxit, 250 ml
|
293800051 |
— |
