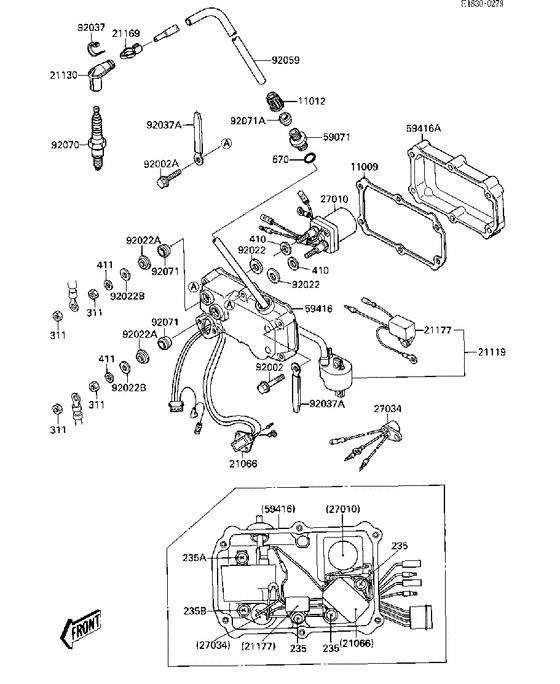

Ignition System Diagram Kawasaki JET SKI 300 JS300-B
- Engine Capacity
- 300
- Year
- 1988
- Commercial Name
- JS300-B
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-3711 GASKET,ELECTRIC CASEGasket,electric case; |
11009-3711 |
from US $13.12 |
||
|
11012
|
11012
11012-3005 CAP |
11012-3005 |
from US $5.39 |
||
|
21066
|
21066
21066-3701 REGULATOR-VOLTAGE |
21066-3701 |
from US $205.92 |
||
|
21119
|
21119
21119-3707 IGNITER |
21119-3707 |
from US $424.01 |
||
|
21130
|
21130
21130-1006
Cap,spark plug
|
21130-1006 |
— | ||
|
21169
|
21169
21169001 TERMINAL,PLUG CAPTerminal,plug cap; |
21169001 |
from US $10.61 |
||
|
21177
|
21177
21177-3701 CONTROLLER |
21177-3701 |
from US $108.54 |
||
|
27010
|
27010
27010-3703 SWITCH,STARTER RELAYSwitch,starter relay; |
27010-3703 |
from US $144.32 |
||
|
27034
|
27034
27034-3002
RELAY
Relay,stop switch; |
27034-3002 |
— | ||
|
59071
|
59071
59071-3001 JOINT |
59071-3001 |
from US $5.39 |
||
|
59416
|
59416
59416-3702 CASE-ELECTRICAL,FRCase-electric,fr; |
59416-3702 |
from US $106.38 |
||
|
59416A
|
59416A
59416-3703 CASE-ELECTRICAL,RRCase-electric,rr; |
59416-3703 |
from US $70.16 |
||
|
92002
|
92002
92002-3715 BOLT,6X35Bolt,6x35; |
92002-3715 |
from US $5.07 |
||
|
92002A
|
92002A
92002-3720
BOLT,6X65
Bolt,6x65; |
92002-3720 |
— | ||
|
92022
|
92022
92022-3035 WASHER,10.5X24X2.5 |
92022-3035 |
from US $2.85 |
||
|
92022A
|
92022A
92022-3708 WASHER |
92022-3708 |
US $1.76 |
||
|
92022B
|
92022B
92022-3709 WASHER,6.5X19X2Washer,6.5x19x2; |
92022-3709 |
US $2.34 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92037A
|
92037A
92037-3736 CLAMP,L=100Clamp,l=100; |
92037-3736 |
from US $3.33 |
||
|
92059
|
92059
92059-3820 TUBE |
92059-3820 |
from US $9.95 |
||
| replacement | |||||
|
92059
|
92059
92190-3707 TUBE |
92190-3707 |
from US $9.66 |
||
|
92070
|
92070
92070-3003 SPARK PLUG B7ESPlug-spark,b7es(ngk); |
92070-3003 |
from US $3.11 |
||
| replacement | |||||
|
92070
|
92070
B7ES SPARK PLUG B7ESPlug-spark,b7es(ngk); |
B7ES |
US $16.12 |
||
|
92071
|
92071
92071-3004 GROMMET |
92071-3004 |
from US $3.17 |
||
|
92071A
|
92071A
92071-527 GROMMET |
92071-527 |
from US $5.70 |
||
|
235
|
235
235B0616
SCREW-PAN-WP-CROS
|
235B0616 |
— | ||
| replacement | |||||
|
235
|
235
235AA0616 SCREW-PAN-WP-CROS |
235AA0616 |
from US $1.24 |
||
|
235A
|
235A
235B0620 SCREW-PAN-WP-CROS,6X2 |
235B0620 |
from US $1.43 |
||
| replacement | |||||
|
235A
|
235A
235AA0620 SCREW-PAN-WP-CROS,6X2 |
235AA0620 |
US $1.24 |
||
|
235B
|
235B
235B0625 SCREW-PAN-WP-CROS |
235B0625 |
US $1.31 |
||
|
311
|
311
311R0600 NUT,6M/MNut-hex,6mm; |
311R0600 |
from US $1.09 |
||
|
410
|
410
410B1000
W-PLAIN-S
Washer-plain-small,10mm; |
410B1000 |
— | ||
| replacement | |||||
|
410
|
410
410AA1000 W-PLAIN-SWasher-plain-small,10mm; |
410AA1000 |
from US $0.81 |
||
|
411
|
411
411S0600 WASHERWasher-plain,6mm; |
411S0600 |
from US $1.74 |
||
|
670
|
670
670B2016 O RING,16MMO ring,16mm; |
670B2016 |
from US $3.20 |
||
