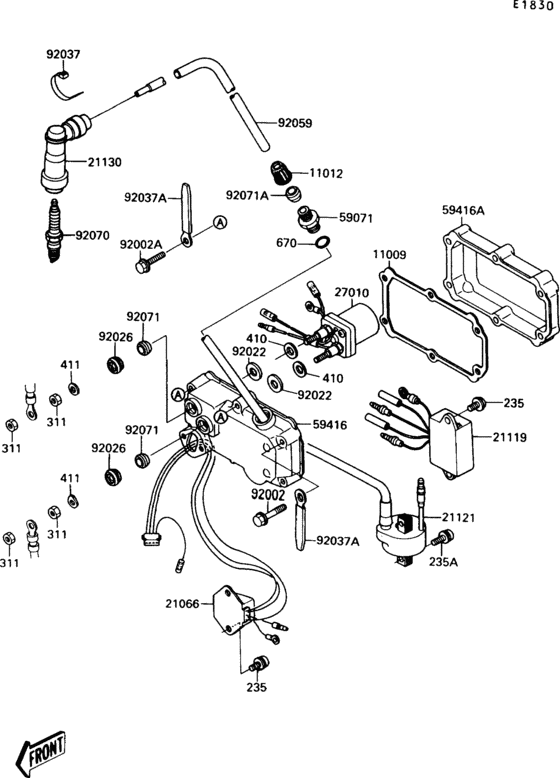

Ignition System Diagram Kawasaki JET SKI 300 JS300-B
- Engine Capacity
- 300
- Year
- 1990
- Commercial Name
- JS300-B
- Sales region
- General
- Frame
- JS300B 601251 - 999999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
235
|
235
235AA0616 SCREW-PAN-WP-CROS |
235AA0616 |
from US $1.24 |
||
|
235A
|
235A
235AA0620 SCREW-PAN-WP-CROS,6X2 |
235AA0620 |
US $1.24 |
||
|
311
|
311
311R0600 NUT,6M/M |
311R0600 |
from US $1.09 |
||
|
410
|
410
410AA1000 W-PLAIN-S |
410AA1000 |
from US $0.81 |
||
|
411
|
411
411S0600 WASHER |
411S0600 |
from US $1.74 |
||
|
670
|
670
670B2016 O RING,16MM |
670B2016 |
from US $3.20 |
||
|
11012
|
11012
11012-3005 CAP |
11012-3005 |
from US $5.39 |
||
|
21066
|
21066
21066-3707 REGULATOR-VOLTAGE |
21066-3707 |
from US $197.12 |
||
|
21130
|
21130
21130-1062 Cap-spark plug |
21130-1062 |
from US $25.88 |
||
|
59071
|
59071
59071-3001 JOINT |
59071-3001 |
from US $5.39 |
||
|
92002
|
92002
92002-3715 BOLT,6X35 |
92002-3715 |
from US $5.07 |
||
|
92022
|
92022
92022-3035 WASHER,10.5X24X2.5 |
92022-3035 |
from US $2.85 |
||
|
92026
|
92026
92026-3703 SPACER |
92026-3703 |
from US $3.33 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92037A
|
92037A
92037-3736 CLAMP,L=100 |
92037-3736 |
from US $3.33 |
||
|
92059
|
92059
92190-3707 TUBE |
92190-3707 |
from US $9.66 |
||
|
92070
|
92070
E9207-0014
B6es (ngk sparkplug)
|
E9207-0014 |
— | ||
|
92071
|
92071
92071-3004 GROMMET |
92071-3004 |
from US $3.17 |
||
|
92071A
|
92071A
92071-527 GROMMET |
92071-527 |
from US $5.70 |
