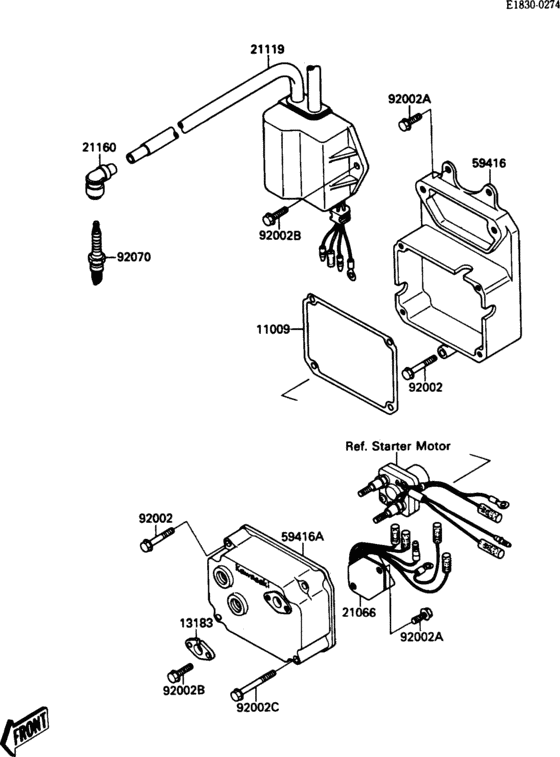

Ignition System Diagram Kawasaki JET SKI 650SX JS650-A
- Engine Capacity
- 650
- Year
- 1988
- Commercial Name
- JS650-A
- Sales region
- General
- Frame
- JS650A 100601 - 999999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- JS650-A
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13183
|
13183
13183-3712 PLATE |
13183-3712 |
US $16.63 |
||
|
21066
|
21066
21066-3703 REGULATOR-VOLTAGE |
21066-3703 |
from US $171.77 |
||
|
21119
|
21119
21119-3711 IGNITER |
21119-3711 |
from US $602.80 |
||
|
21160
|
21160
21130-2060 CAP-PLUG |
21130-2060 |
from US $11.02 |
||
|
92002
|
92002
92002-3716 Bolt |
92002-3716 |
from US $3.80 |
||
|
92002A
|
92002A
92002-3728 BOLT,6X16 |
92002-3728 |
from US $3.17 |
||
|
92002B
|
92002B
92002-3755 BOLT,6X20 |
92002-3755 |
from US $3.17 |
||
|
92002C
|
92002C
92002-3772 Bolt |
92002-3772 |
from US $4.82 |
||
|
92070
|
92070
E9207-0014
B6es (ngk sparkplug)
|
E9207-0014 |
— |
