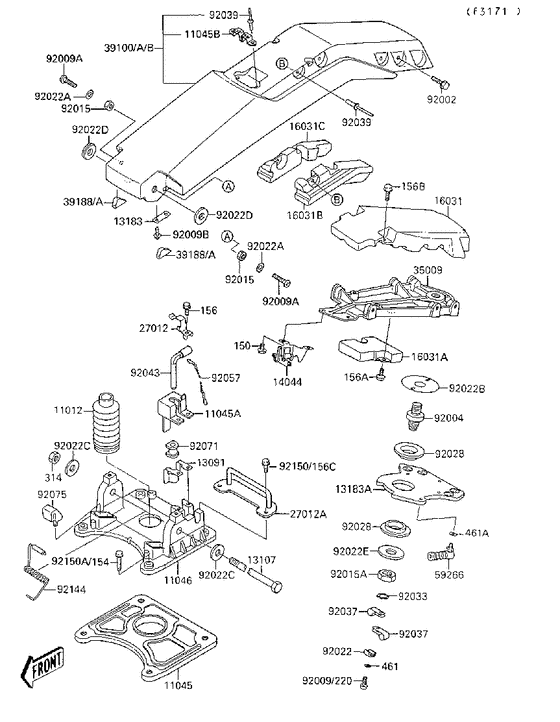

Handle pole Diagram Kawasaki JET SKI 650SX JS650-A
- Engine Capacity
- 650
- Year
- 1989
- Commercial Name
- JS650-A
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- JS650-A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
59176514 COVER-STEERING CABLE |
59176514 |
US $21.24 |
||
|
11045
|
11045
11045-3722 BRACKET,BACK-UP PLATEBracket,back-up plate; |
11045-3722 |
from US $44.41 |
||
|
11045A
|
11045A
11045-3728 BRACKET,POLE STOPPERBracket,pole stopper; |
11045-3728 |
from US $4.77 |
||
|
11045B
|
11045B
11045-3733 BRACKET,HANDLE POLE PBracket,handle pole pad; |
11045-3733 |
from US $5.47 |
||
|
11046
|
11046
11046-3715 BRACKET,PIVOT SHAFTBracket,pivot shaft; |
11046-3715 |
US $155.07 |
||
| replacement | |||||
|
11046
|
11046
11047-3756 BRACKET,PIVOT SHAFTBracket,pivot shaft; |
11047-3756 |
US $155.07 |
||
|
13091
|
13091
13091-3717 HOLDER |
13091-3717 |
from US $4.99 |
||
|
13107
|
13107
13107-3709 SHAFT,PIVOTShaft,pivot; |
13107-3709 |
from US $39.35 |
||
|
13183
|
13183
13183-3720 PLATE |
13183-3720 |
from US $1.55 |
||
|
13183A
|
13183A
13183-3755 PLATE,HANDLEBARPlate,handlebar; |
13183-3755 |
from US $142.88 |
||
|
14044
|
14044
14044-3001 HOLDER,CABLE |
14044-3001 |
from US $24.19 |
||
|
16031
|
16031
16031-3715 FLOAT |
16031-3715 |
from US $15.77 |
||
|
16031A
|
16031A
16031-3737 FLOAT CENTERFloat,cnt; |
16031-3737 |
from US $7 |
||
|
16031B
|
16031B
16031-3738 FLOAT,L.HFloat,lh; |
16031-3738 |
US $7.20 |
||
|
16031C
|
16031C
16031-3752 FLOAT,R.H.Float,rh; |
16031-3752 |
from US $8.32 |
||
|
27012
|
27012
27012-3717 HOOK |
27012-3717 |
from US $4.99 |
||
|
27012A
|
27012A
27012-3733 HOOK,ENGINE HOODHook,engine hood; |
27012-3733 |
US $37.55 |
||
|
35009
|
35009
35009-3702 BRACE |
35009-3702 |
US $108.67 |
||
| replacement | |||||
|
35009
|
35009
35009-3705 BRACE |
35009-3705 |
from US $108.67 |
||
|
39100
|
39100
39100-3706-F3 HANDLE,POLE ASSYPole-comp-handle,m.u.blue; |
39100-3706-F3 |
US $530.96 |
||
| replacement | |||||
|
39100
|
39100
39100-3707-8Z HANDLE,POLE ASSYPole-comp-handle,m.u.blue; |
39100-3707-8Z |
US $530.96 |
||
|
39100A
|
39100A
39100-3706-H1 POLE-COMP-HANDLE,S.REPole-comp-handle,s.red; |
39100-3706-H1 |
US $529.87 |
||
| replacement | |||||
|
39100A
|
39100A
39100-3707-H1 POLE-COMP-HANDLE,S.REPole-comp-handle,s.red; |
39100-3707-H1 |
US $529.87 |
||
|
39188
|
39188
39188-3701 TAPETape,(red); |
39188-3701 |
US $1.22 |
||
|
39188A
|
39188A
39188-3703 TAPE,(BLUE)Tape,(blue); |
39188-3703 |
from US $1.82 |
||
|
59266
|
59266
59266-3701 JOINT-BALL |
59266-3701 |
US $60.97 |
||
| replacement | |||||
|
59266
|
59266
59266-3707 JOINT-BALL |
59266-3707 |
from US $51.31 |
||
|
92002
|
92002
92002-3763 BOLT,6X12Bolt,6x12; |
92002-3763 |
from US $3.17 |
||
|
92004
|
92004
92004-3713 STUD |
92004-3713 |
US $61.94 |
||
|
92009A
|
92009A
92009-3738 SCREW |
92009-3738 |
from US $0.43 |
||
|
92009B
|
92009B
92011-562 SCREW 0.16X0.5 |
92011-562 |
from US $1.90 |
||
|
92015
|
92015
92015-3015 NUT |
92015-3015 |
from US $0.43 |
||
|
92015A
|
92015A
92015-3746 NUTNut,18mm; |
92015-3746 |
from US $11.43 |
||
|
92022
|
92022
92022-3014 WASHER,CLAMPWasher,clamp; |
92022-3014 |
from US $3.48 |
||
|
92022A
|
92022A
92022-3042 WASHER |
92022-3042 |
from US $0.63 |
||
|
92022B
|
92022B
92022-3716 WASHER |
92022-3716 |
US $12.51 |
||
|
92022C
|
92022C
92022-3738 WASHER,15X34X2.0Washer,15x34x2.0; |
92022-3738 |
from US $4.75 |
||
|
92022D
|
92022D
92022-3741 WASHER,15X36X4.5Washer,15x36x4.5; |
92022-3741 |
from US $3.33 |
||
|
92022E
|
92022E
92022-571 WASHER |
92022-571 |
from US $25.73 |
||
|
92028
|
92028
92028-3726 BUSHING |
92028-3726 |
US $17.58 |
||
|
92033
|
92033
92033-3710 RING-SNAPRing-snap,15mm; |
92033-3710 |
from US $3.33 |
||
|
92037
|
92037
92037-3007 CLAMP,LEAD WIREClamp,lead wire; |
92037-3007 |
from US $5.86 |
||
|
92039
|
92039
92039-3701 RIVET |
92039-3701 |
from US $1.01 |
||
|
150
|
150
150R0612 BOLT-WS,6X12Bolt-ws,6x12; |
150R0612 |
from US $3.13 |
||
|
154
|
154
154R0830 BOLT-WP-SMALL,8X30Bolt-wp-small,8x30; |
154R0830 |
from US $1.58 |
||
|
156
|
156
156R0510 BOLT-WP,5X10Bolt-wp,5x10; |
156R0510 |
from US $1.55 |
||
|
156A
|
156A
156R0512 BOLT-WP,5X12Bolt-wp,5x12; |
156R0512 |
from US $1.43 |
||
|
156B
|
156B
156R0514 BOLT-WP,5X14Bolt-wp,5x14; |
156R0514 |
US $1.24 |
||
|
156C
|
156C
156R0612 BOLT-WP,6X12Bolt-wp,6x12; |
156R0612 |
from US $1.27 |
||
|
220
|
220
220R0516 SCREW-PAN-CROS |
220R0516 |
from US $1.27 |
||
|
314
|
314
314R1400 NUT-HEX-FINE,14MMNut-hex-fine,14mm; |
314R1400 |
from US $2.06 |
||
|
461
|
461
461S0500 WASHER-SPRING,5MMWasher-spring,5mm; |
461S0500 |
from US $0.82 |
||
|
461A
|
461A
461S0600 WASHER-SPRING,6MMWasher-spring,6mm; |
461S0600 |
from US $0.95 |
||
|
92043
|
92043
92043-3714 PIN,POLE STOPPERPin,pole stopper; |
92043-3714 |
US $20.64 |
||
|
92057
|
92057
92057-3704 CHAIN,COVERChain,cover,l=100; |
92057-3704 |
from US $15.52 |
||
|
92071
|
92071
92071-3752 GROMMET |
92071-3752 |
from US $2.56 |
||
|
92075
|
92075
92075-3742
DAMPER,POLE STOPPER
Damper,pole stopper; |
92075-3742 |
— | ||
|
92144
|
92144
92144-3716
SPRING,HANDLE POLE
Spring,handle pole; |
92144-3716 |
— | ||
