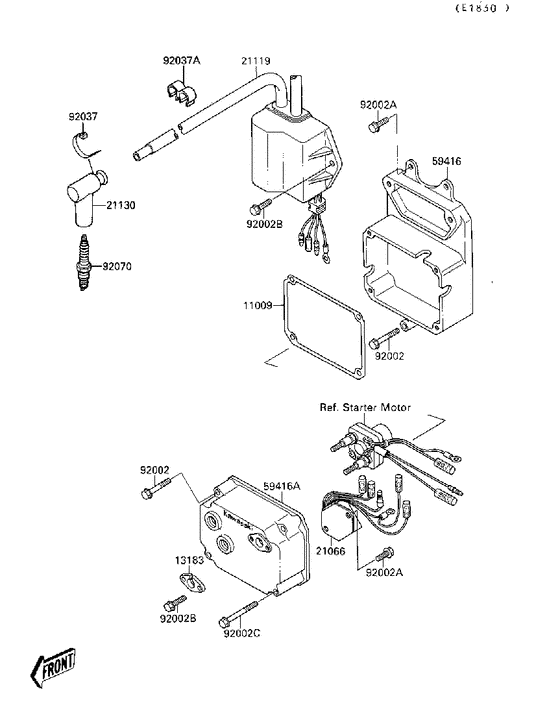

Ignition System Diagram Kawasaki JET SKI 650SX JS650-A
- Engine Capacity
- 650
- Year
- 1989
- Commercial Name
- JS650-A
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- JS650-A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-3733 GASKET,ELECTRIC CASEGasket,electric case; |
11009-3733 |
US $12.17 |
||
| replacement | |||||
|
11009
|
11009
11060-3707 GASKET,ELECTRIC CASEGasket,electric case; |
11060-3707 |
US $17.74 |
||
|
13183
|
13183
13183-3712 PLATE |
13183-3712 |
US $16.63 |
||
|
21066
|
21066
21066-3703 REGULATOR-VOLTAGE |
21066-3703 |
from US $171.77 |
||
|
21119
|
21119
21119-3711 IGNITER |
21119-3711 |
from US $602.80 |
||
|
21130
|
21130
21130-1062 Cap-spark plug |
21130-1062 |
from US $25.88 |
||
|
59416
|
59416
59416-3707 CASE-ELECTRIC,RRCase-electric,rr; |
59416-3707 |
from US $78.10 |
||
|
59416A
|
59416A
59416-3708 CASE-ELECTRIC,FRCase-electric,fr; |
59416-3708 |
from US $69.71 |
||
|
92002
|
92002
92002-3716 BoltBolt,6x40; |
92002-3716 |
from US $3.80 |
||
|
92002A
|
92002A
92002-3728 BOLT,6X16Bolt,6x16; |
92002-3728 |
from US $3.17 |
||
|
92002B
|
92002B
92002-3755 BOLT,6X20Bolt,6x20; |
92002-3755 |
from US $3.17 |
||
|
92002C
|
92002C
92002-3772 BoltBolt,6x55; |
92002-3772 |
from US $4.82 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92037A
|
92037A
92037-1603 ClampClamp,hose; |
92037-1603 |
from US $3.17 |
||
|
92070
|
92070
92070-3701 SPARK PLUG BR7ESPlug-spark,br7es(ngk); |
92070-3701 |
from US $3.11 |
||
