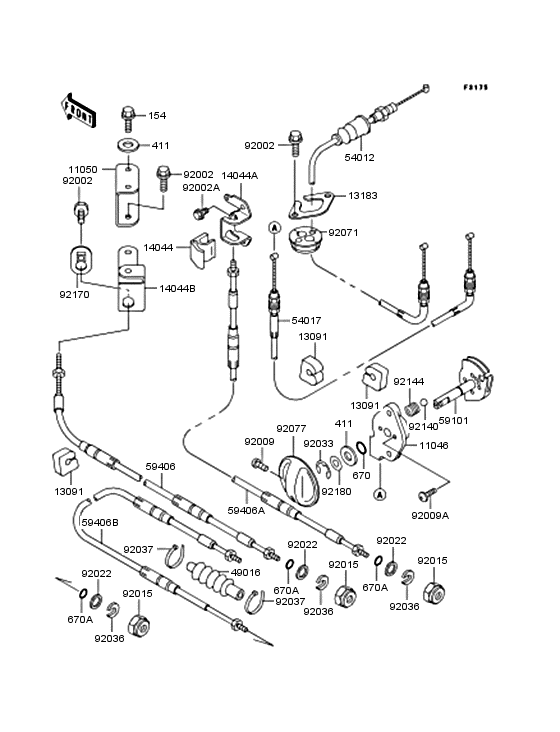

Cables Diagram Kawasaki JET SKI 750 STX JT750-C
- Engine Capacity
- 750
- Year
- 1998
- Commercial Name
- JT750-C
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JT750BE 000001 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
154
|
154
154R0830 BOLT-WP-SMALL,8X30ボルト(コガタヒラツキ)，8X30 |
154R0830 |
from US $1.58 |
||
|
411
|
411
411S0800 WASHERヒラザガネ(ミガキマル)，8MM |
411S0800 |
from US $1.74 |
||
|
670
|
670
670B1508 O RING,8MMO リング(ウンドウヨウ)，8MM |
670B1508 |
from US $1.63 |
||
|
670A
|
670A
670B2011 O RINGO リング(ウンドウヨウ)，11MM |
670B2011 |
from US $1.75 |
||
|
11046
|
11046
11046-3712 BRACKET,STARTER CABLEブラケツト，スタ-タ ケ-ブル |
11046-3712 |
from US $16 |
||
|
11050
|
11050
11050-3728 BRACKET,CABLE HOLDERブラケツト，ケ-ブル ホルダ |
11050-3728 |
from US $36.72 |
||
|
13091
|
13091
13091-3712 HOLDERホルダ |
13091-3712 |
from US $3.64 |
||
|
13183
|
13183
13183-3810 Plateプレ-ト |
13183-3810 |
from US $9.27 |
||
| replacement | |||||
|
13183
|
13183
13272-3729 PLATEプレ-ト |
13272-3729 |
from US $8.55 |
||
|
14044A
|
14044A
14044-3717 HOLDER-CABLE,STEERINGホルダ(ケ-ブル)，ステアリング |
14044-3717 |
from US $20.02 |
||
|
14044B
|
14044B
14044-3732 HOLDER-CABLEホルダ(ケ-ブル) |
14044-3732 |
from US $43.47 |
||
|
14044
|
14044
14044-3714 HOLDER-CABLE STRGホルダ(ケ-ブル)，ステアリング |
14044-3714 |
from US $3.01 |
||
|
49016
|
49016
49016-3702 COVER-SEALカバ-(シ-ル)，チルト ケ-ブル |
49016-3702 |
from US $4.12 |
||
|
54012
|
54012
54012-3744 CABLE-THROTTLEケ-ブル(スロツトル) |
54012-3744 |
from US $43.02 |
||
|
54017
|
54017
54017-3729 CABLE-STARTERケ-ブル(スタ-タ) |
54017-3729 |
from US $31.46 |
||
|
59101
|
59101
59101-3704 REELリ-ル，スタ-タ ケ-ブル |
59101-3704 |
from US $26.71 |
||
|
59406
|
59406
59406-3736 CABLE-STRGケ-ブル(ステア) |
59406-3736 |
from US $156.53 |
||
|
59406A
|
59406A
59406-3764 CABLE-STRG,REVERSEケ-ブル(ステア)，リバ-ス |
59406-3764 |
from US $150.48 |
||
|
59406B
|
59406B
59406-3765 CABLE-STRGケ-ブル(ステア)，チルト |
59406-3765 |
from US $150.17 |
||
|
92002
|
92002
92002-3728 BOLT,6X16ボルト，6X16 |
92002-3728 |
from US $3.17 |
||
|
92002A
|
92002A
92002-3763 BOLT,6X12ボルト，6X12 |
92002-3763 |
from US $3.17 |
||
|
92009
|
92009
92009-3729 SCREW,4X8スクリユ-，4X8 |
92009-3729 |
from US $5.07 |
||
|
92009A
|
92009A
92009-3789 SCREW,5X16スクリユ-，5X16 |
92009-3789 |
from US $1.85 |
||
|
92015
|
92015
92015-526 NUT 20 M/Mナツト，20MM |
92015-526 |
from US $20.79 |
||
|
92022
|
92022
92022-535 WASHERワツシヤ |
92022-535 |
from US $5.07 |
||
|
92033
|
92033
92033-3704 RING-SNAP,7MMリング(スナツプ)，7MM |
92033-3704 |
from US $1.85 |
||
|
92036
|
92036
92036-501 RING-SNAP,7.7X17.5X3.サ-クリツプ |
92036-501 |
from US $8.59 |
||
| replacement | |||||
|
92036
|
92036
92033-3737 RING-SNAP,7.7X17.5X3.サ-クリツプ |
92033-3737 |
from US $3.48 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAPクランプ |
92037-1173 |
from US $2.69 |
||
|
92071
|
92071
92071-3790 GROMMET,HARNESSグロメツト，ハ-ネス |
92071-3790 |
from US $7.44 |
||
|
92077
|
92077
92077-3728 KNOBノブ |
92077-3728 |
from US $16.88 |
||
|
92140
|
92140
92140-3702 BALLボ-ル，3MM |
92140-3702 |
from US $3.33 |
||
|
92144
|
92144
92144-3712 SPRINGスプリング |
92144-3712 |
from US $1.49 |
||
|
92170
|
92170
92170-3756 CLAMP,CABLEクランプ，ケ-ブル |
92170-3756 |
from US $11 |
||
|
92180
|
92180
92180-3702 SHIM,8.5X18X0.15シム，8.5X18X0.15 |
92180-3702 |
from US $4.23 |
||
