	Description	OEM Part #	Price
150	150 150R0614 BOLT-WS,6X14 ボルト(バネツキ)，6X14	150R0614	from US $3.96
225	225 225R0516 SCREW-PAN-WSP-CROS,5X ナベコネジ(バネヒラツキ+ジアナ，5X16	225R0516	from US $1.43
11009A	11009A 11009-3790 GASKET ガスケツト	11009-3790	from US $2.32
11009	11009 11009-3020 GASKET,FUEL TANK CAP ガスケツト，タンクキヤツプ	11009-3020	from US $10.14
11047	11047 11047-3761 BRACKET,FUEL FILTER ブラケツト，フユ-エルフイルタ	11047-3761	from US $22.72
	replacement
11047	11047 11052-3715 BRACKET,FUEL FILTER ブラケツト，フユ-エルフイルタ	11052-3715	from US $18.31
11050	11050 11050-3720 BRACKET ブラケツト	11050-3720	from US $14.76
13091	13091 13091-3758 HOLDER,TUBE ホルダ，チユ-ブ	13091-3758	from US $9.22
13091A	13091A 13091-3795 HOLDER ホルダ，フイルタ	13091-3795	from US $7.60
	replacement
13091A	13091A 13280-3705 HOLDER,FUEL FILTER ホルダ，フイルタ	13280-3705	US $8.55
49019	49019 49019-3708 FILTER-FUEL フイルタ(フユ-エル)	49019-3708	from US $63.73
49019A	49019A 49019-3710 FILTER-FUEL フイルタ(フユ-エル)	49019-3710	from US $90.06
49019B	49019B 49019-3712 FILTER-FUEL フイルタ(フユ-エル)	49019-3712	from US $59.42
49057	49057 49057-3001 VALVE-RELIEF バルブ(リリ-フ)	49057-3001	from US $47.12
	replacement
49057	49057 49057-0002 VALVE-RELIEF バルブ(リリ-フ)	49057-0002	from US $40.39
51004	51004 51004-3718 TANK,FUEL タンク(フユ-エル)	51004-3718	from US $128.84
51023	51023 51023-3718 Fuel Tap タツプアツシ，フユ-エル	51023-3718	from US $112.20
	replacement
51023	51023 51023-3738 Fuel Tap タツプアツシ，フユ-エル	51023-3738	from US $103.67
51049	51049 51049-3714 CAP,TANK,FUEL キヤツプ(タンク)，フユ-エル	51049-3714	from US $43.10
59231	59231 59231-3001 FILLER,FUEL TANK フイラ，フユ-エルタンク	59231-3001	from US $13.15
92002	92002 92002-3755 BOLT,6X20 ボルト，6X20	92002-3755	from US $3.17
92009	92009 92009-3729 SCREW,4X8 スクリユ-，4X8	92009-3729	from US $5.07
92009A	92009A 92009-3789 SCREW,5X16 スクリユ-，5X16	92009-3789	from US $1.85
92011	92011 92011-562 SCREW 0.16X0.5 ナベコネジ	92011-562	from US $1.90
92022	92022 92022-3710 WASHER ワツシヤ，6.5X20X1.5	92022-3710	from US $2.85
92022A	92022A 92022-563 WASHER ワツシヤ	92022-563	from US $1.56
92037	92037 92037-1173 CLAMP,SPARK PLUG CAP クランプ	92037-1173	from US $2.69
92037A	92037A 92037-3009 HOSE CLAMP クランプ	92037-3009	from US $4.69
92057	92057 92057-3704 CHAIN,COVER チエ-ン，カバ-，L=100	92057-3704	from US $15.52
92072	92072 92072-031 BAND,MIDDLE バンド，L=149	92072-031	from US $3.01
92077	92077 92077-3728 KNOB ノブ	92077-3728	from US $16.88
92190	92190 92190-3799 TUBE,TANK-BREATHER チユ-ブ，タンク - ブリ-ザ	92190-3799	from US $10.66
92190A	92190A 92190-3889 Tube,"res",5.8x10.8x4 チユ-ブ，"RES"，5.8X10.8X420	92190-3889	US $13.21
	replacement
92190A	92190A 92191-3720 TUBE,5.8X10.8X800,WHI チユ-ブ，"RES"，5.8X10.8X420	92191-3720	from US $23.29
92190B	92190B 92190-3890 Tube,"on",5.8x10.8x42 チユ-ブ，"ON"，5.8X10.8X420	92190-3890	US $13.21
	replacement
92190B	92190B 92191-3720 TUBE,5.8X10.8X800,WHI チユ-ブ，"ON"，5.8X10.8X420	92191-3720	from US $23.29
92190C	92190C 92190-3893 TUBE,5.8X10.8X540 チユ-ブ，5.8X10.8X540	92190-3893	from US $6.93
	replacement
92190C	92190C 92191-3720 TUBE,5.8X10.8X800,WHI チユ-ブ，5.8X10.8X540	92191-3720	from US $23.29
92190D	92190D 92190-3898 TUBE, FUEL FILLER チユ-ブ，フユ-エルフイラ-	92190-3898	from US $35.24
92190E	92190E 92190-3903 TUBE,"RETURN",CARB-TA チユ-ブ，"RETURN"，キヤブ - タンク	92190-3903	US $9.29
92191	92191 92191-3729 TUBE チユ-ブ，フイルタ(キヤブ)	92191-3729	from US $18.45
92191A	92191A 92191-3730 TUBE,TAP-FILTER チユ-ブ，タツプ(フイルタ)	92191-3730	from US $16.54

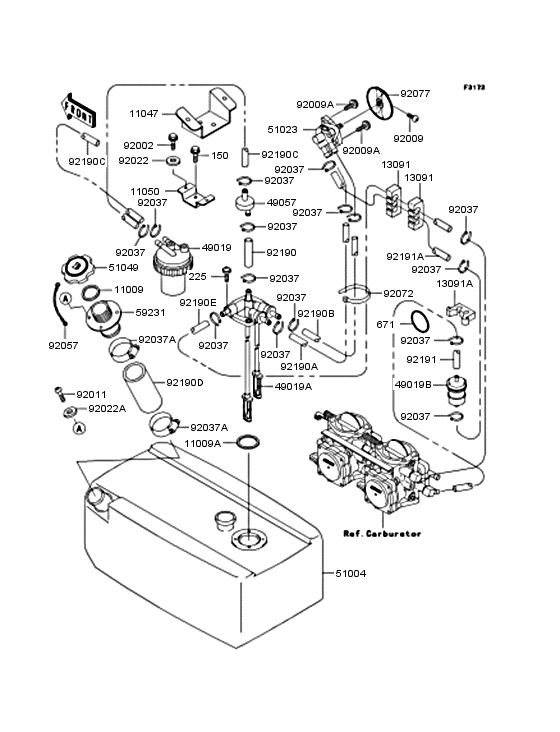

Fuel tank Diagram Kawasaki JET SKI 750 STX JT750-C Jet White (8C) Japan 13798414-790119

Fuel tank Diagram Kawasaki JET SKI 750 STX JT750-C Jet White (8C) Japan 13798414-790119
