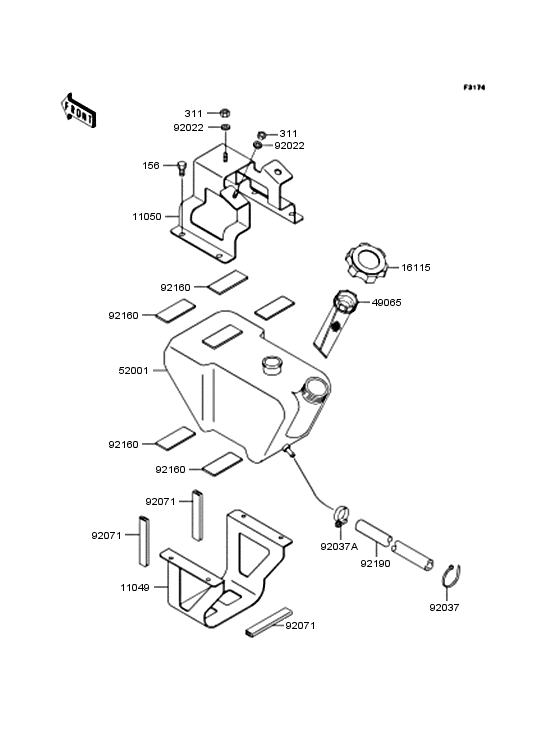

Oil tank Diagram Kawasaki JET SKI 750 STX JT750-C
- Engine Capacity
- 750
- Year
- 1998
- Commercial Name
- JT750-C
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JT750BE 000001 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
156
|
156
156R0614
BOLT-WP,6X14
ボルト(ヒラツキ)，6X14 |
156R0614 |
— | ||
|
311
|
311
311R0600 NUT,6M/Mロツカク ナツト，6MM |
311R0600 |
from US $1.09 |
||
|
11049
|
11049
11049-3760 BRACKETブラケツト |
11049-3760 |
from US $64.08 |
||
|
11050
|
11050
11050-3725 BRACKETブラケツト |
11050-3725 |
from US $76.12 |
||
|
16115
|
16115
16115-3714 CAP-OIL FILLERキヤツプ(オイルフイラ) |
16115-3714 |
US $51.82 |
||
| replacement | |||||
|
16115
|
16115
16115-3720 CAP-OIL FILLERキヤツプ(オイルフイラ) |
16115-3720 |
from US $41.44 |
||
|
49065
|
49065
49065-3702 FILTER-OILフイルタ(オイル) |
49065-3702 |
from US $14 |
||
|
52001
|
52001
52001-3730 TANK-OILタンク(オイル) |
52001-3730 |
from US $35.84 |
||
|
92022
|
92022
92022-3710 WASHERワツシヤ，6.5X20X1.5 |
92022-3710 |
from US $2.85 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAPクランプ |
92037-1173 |
from US $2.69 |
||
|
92037A
|
92037A
92037-3726 CLAMPクランプ |
92037-3726 |
from US $3.96 |
||
|
92071
|
92071
92071-1198 GROMMETグロメツト |
92071-1198 |
from US $3.62 |
||
|
92160
|
92160
92160-3880 DAMPER,WATER MUFFERダンパ，ウオ-タ マフラ |
92160-3880 |
from US $4.59 |
||
|
92190
|
92190
92190-3864 TUBE,5.8X10.8X370チユ-ブ，5.8X10.8X370 |
92190-3864 |
from US $13.72 |
||
