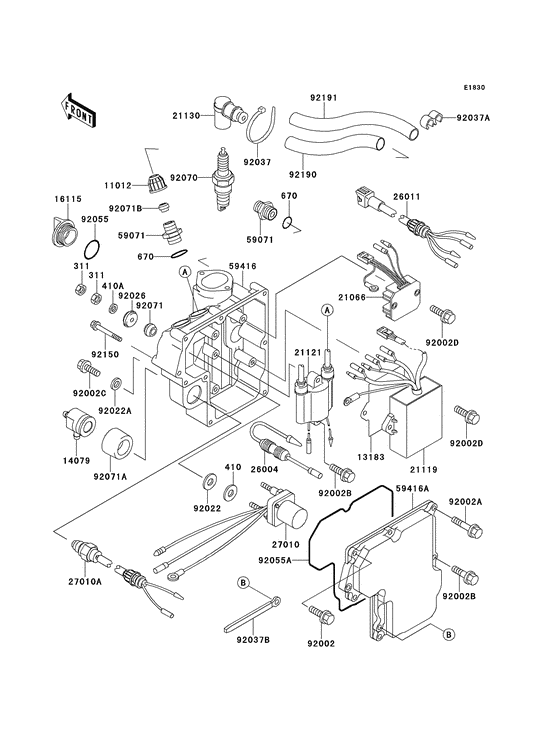

Ignition System Diagram Kawasaki JET SKI 750 SXi JS750-B
- Engine Capacity
- 750
- Year
- 1997
- Commercial Name
- JS750-B
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311R0600 NUT,6M/MNut-hex,6mm; |
311R0600 |
from US $1.09 |
||
|
410
|
410
410B1000
W-PLAIN-S
Washer-plain-small,10mm; |
410B1000 |
— | ||
| replacement | |||||
|
410
|
410
410AA1000 W-PLAIN-SWasher-plain-small,10mm; |
410AA1000 |
from US $0.81 |
||
|
410A
|
410A
410S0600 WASHERWasher-plain-small,6mm; |
410S0600 |
from US $0.95 |
||
|
670
|
670
670B2016 O RING,16MMO ring,16mm; |
670B2016 |
from US $3.20 |
||
|
11012
|
11012
11012-3005 CAP |
11012-3005 |
from US $5.39 |
||
|
13183
|
13183
13183-3811 PLATE |
13183-3811 |
from US $6.81 |
||
|
14079
|
14079
14079-3712 HOLDER-ASSY |
14079-3712 |
US $119.38 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
21066
|
21066
21066-3709 REGULATOR-VOLTAGE |
21066-3709 |
from US $158.58 |
||
| replacement | |||||
|
21066
|
21066
21066-0799 REGULATOR-VOLTAGE |
21066-0799 |
from US $167.90 |
||
|
21119
|
21119
21119-3738 IGNITER |
21119-3738 |
from US $620.73 |
||
|
21121
|
21121
21121-3712 COIL-IGNITION |
21121-3712 |
from US $118.19 |
||
|
21130
|
21130
21130-3706 Cap-spark plug |
21130-3706 |
from US $41.14 |
||
|
26004
|
26004
26004-3712 FUSE-ASSY |
26004-3712 |
from US $43.68 |
||
|
26011
|
26011
26011-3792 WIRE-LEAD |
26011-3792 |
from US $113.10 |
||
|
27010
|
27010
27010-3724 SWITCH,STARTER RELAYSwitch,starter relay; |
27010-3724 |
US $102.89 |
||
| replacement | |||||
|
27010
|
27010
27010-3760 SWITCH,STARTER RELAYSwitch,starter relay; |
27010-3760 |
from US $81.23 |
||
|
27010A
|
27010A
27010-3725 SWITCH,WATER SENSORSwitch,water sensor; |
27010-3725 |
US $87.96 |
||
|
59071
|
59071
59071-3001 JOINT |
59071-3001 |
from US $5.39 |
||
|
59416
|
59416
59416-3725 CASE-ELECTRIC |
59416-3725 |
US $229.42 |
||
| replacement | |||||
|
59416
|
59416
59416-3757 CASE-ELECTRIC,LWR |
59416-3757 |
from US $75.29 |
||
|
59416A
|
59416A
59416-3726 CASE-ELECTRIC,UPP |
59416-3726 |
US $127.46 |
||
| replacement | |||||
|
59416A
|
59416A
59416-3758 CASE-ELECTRIC,UPP |
59416-3758 |
US $75.40 |
||
|
92002
|
92002
92002-3714 BOLT,6X25Bolt,6x25; |
92002-3714 |
from US $3.33 |
||
|
92002A
|
92002A
92002-3716 BoltBolt,6x40; |
92002-3716 |
from US $3.80 |
||
|
92002B
|
92002B
92002-3726 BOLT,6X30Bolt,6x30; |
92002-3726 |
from US $3.17 |
||
|
92002C
|
92002C
92002-3728 BOLT,6X16Bolt,6x16; |
92002-3728 |
from US $3.17 |
||
|
92002D
|
92002D
92002-3755 BOLT,6X20Bolt,6x20; |
92002-3755 |
from US $3.17 |
||
|
92022
|
92022
92022-3035 WASHER,10.5X24X2.5 |
92022-3035 |
from US $2.85 |
||
|
92022A
|
92022A
92022-567 WASHER |
92022-567 |
from US $3.01 |
||
|
92026
|
92026
92026-3703 SPACER |
92026-3703 |
from US $3.33 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92037A
|
92037A
92037-1603 ClampClamp,hose; |
92037-1603 |
from US $3.17 |
||
|
92037B
|
92037B
92037-3736 CLAMP,L=100Clamp,l=100; |
92037-3736 |
from US $3.33 |
||
|
92055
|
92055
92055-049 O-RING,31MMRing-o,31.5x2.6; |
92055-049 |
from US $3.37 |
||
|
92055A
|
92055A
92055-3731 RING-O,ELECTRIC CASERing-o,electric case; |
92055-3731 |
from US $17.74 |
||
|
92070
|
92070
92070-2078
Plug-spark,ngk br8es
Plug-spark,br8es(ngk),solid; |
92070-2078 |
— | ||
| replacements | |||||
|
92070
|
92070
BR8ES SPARK PLUG BR8ESPlug-spark,br8es(ngk),solid; |
BR8ES |
US $25.92 |
||
|
92070
|
92070
E9207-020-78 Br8es solid ngk sparkplugPlug-spark,br8es(ngk),solid; |
E9207-020-78 |
US $3.04 |
||
|
92071
|
92071
92071-3004 GROMMET |
92071-3004 |
from US $3.17 |
||
|
92071A
|
92071A
92071-3782 GROMMET |
92071-3782 |
from US $9.66 |
||
|
92071B
|
92071B
92071-527 GROMMET |
92071-527 |
from US $5.70 |
||
|
92150
|
92150
92150-3763 BOLT,6X85Bolt,6x85; |
92150-3763 |
from US $7.44 |
||
|
92190
|
92190
92190-3961 TUBE,8X10X175Tube,8x10x175; |
92190-3961 |
from US $4.82 |
||
|
92191
|
92191
92191-3706 TUBETube,8x10x265; |
92191-3706 |
from US $8.51 |
||
