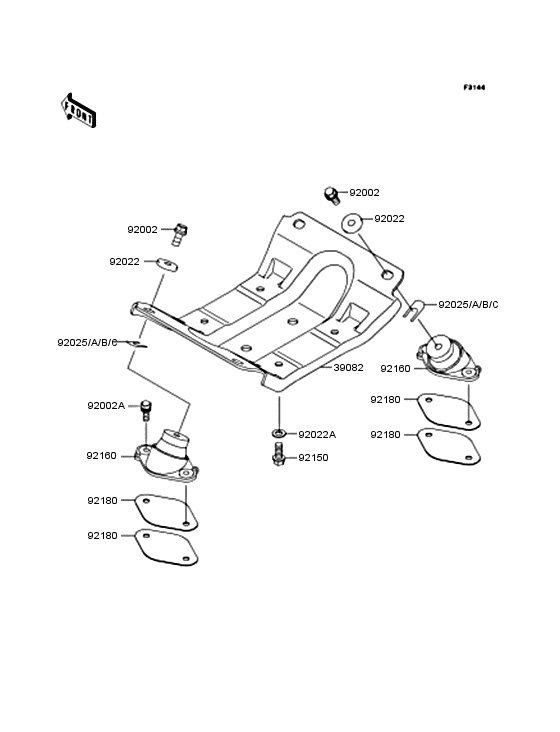

Engine mount Diagram Kawasaki JET SKI 800 SX-R JS800-A
- Engine Capacity
- 800
- Year
- 2003
- Commercial Name
- JS800-A
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JS800AE 000001 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39082
|
39082
39082-3723 MOUNT-ENGINEマウント(エンジン) |
39082-3723 |
from US $112.54 |
||
|
92002
|
92002
92002-3770 BOLT,10X25ボルト，10X25 |
92002-3770 |
from US $7.92 |
||
|
92002A
|
92002A
92002-3774 BOLT,8X25ボルト，8X25 |
92002-3774 |
from US $5.39 |
||
|
92022
|
92022
92022-3023 WASHER,O32XO10.5X4Tワツシヤ，32X10.5X4 |
92022-3023 |
from US $8.87 |
||
|
92022A
|
92022A
92022-3742 WASHERワツシヤ，10.2X20X1.5 |
92022-3742 |
from US $3.01 |
||
|
92025
|
92025
92025-3705 SHIM,T=0.3MMシム，T=0.3MM |
92025-3705 |
from US $2.58 |
||
|
92025A
|
92025A
92025-3706 SHIM,T=0.5MMシム，T=0.5MM |
92025-3706 |
from US $2.58 |
||
|
92025B
|
92025B
92025-3707 SHIM,T=1.0MMシム，T=1.0MM |
92025-3707 |
from US $3.42 |
||
|
92025C
|
92025C
92025-3708 SHIM,T=1.5MMシム，T=1.5MM |
92025-3708 |
from US $4.59 |
||
|
92150
|
92150
92150-3842 BOLT,10X25ボルト，10X25 |
92150-3842 |
from US $5.20 |
||
|
92160
|
92160
92160-3761 DAMPER,ENGINE MOUNTダンパ，エンジン マウント |
92160-3761 |
from US $119.68 |
||
| replacement | |||||
|
92160
|
92160
92161-3788 DAMPER,ENGINE MOUNTダンパ，エンジン マウント |
92161-3788 |
from US $85.27 |
||
|
92180
|
92180
92180-3715 SHIM,T=1.0シム，T=1.0 |
92180-3715 |
from US $9.98 |
||
