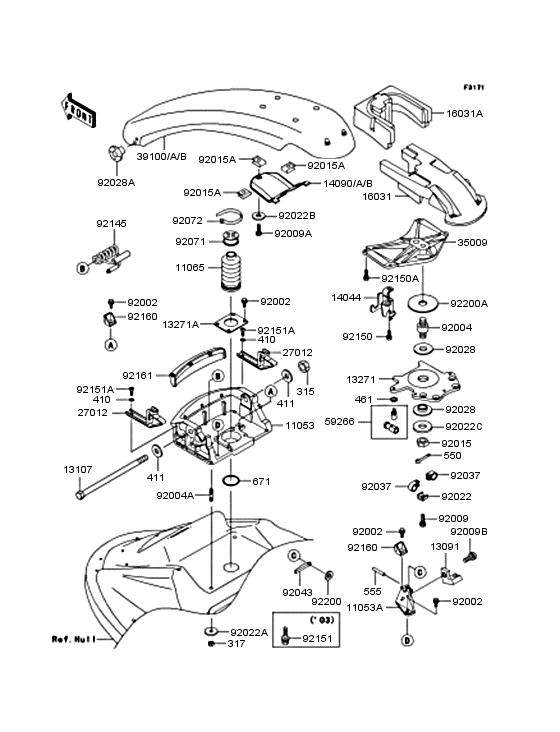

Handle pole Diagram Kawasaki JET SKI 800 SX-R JS800-A
- Engine Capacity
- 800
- Year
- 2003
- Commercial Name
- JS800-A
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JS800AE 000001 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
315
|
315
315R1400 NUT-HEX-FINE,14MMロツカク ナツト(コガタ ホソメ)，14MM |
315R1400 |
from US $1.27 |
||
|
317
|
317
317R0800 NUTロツカク ナツト(コガタ) |
317R0800 |
from US $0.96 |
||
|
410
|
410
410S0600 WASHERヒラザガネ(コガタマル)，6MM |
410S0600 |
from US $0.95 |
||
|
411
|
411
411S1400 WASHERヒラザガネ(ミガキマル)，14MM |
411S1400 |
from US $3.80 |
||
| replacement | |||||
|
411
|
411
92200-1847 WASHER-PLAIN,15X30X2.ヒラザガネ(ミガキマル)，14MM |
92200-1847 |
from US $5.07 |
||
|
461
|
461
461S0600 WASHER-SPRING,6MMバネザガネ，6MM |
461S0600 |
from US $0.95 |
||
|
550
|
550
550S4040 PIN-COTTER,4X40ワリ ピン，4X40 |
550S4040 |
from US $1.27 |
||
| replacement | |||||
|
550
|
550
92041-0011 COTTERワリ ピン，4X40 |
92041-0011 |
from US $6.34 |
||
|
555
|
555
555B0325 PIN-SPRING,3X25スプリング ピン，3X25 |
555B0325 |
from US $2.53 |
||
|
671
|
671
671B2540 0 RING,40MMO リング(コテイヨウ)，40MM |
671B2540 |
from US $3.48 |
||
|
92071
|
92071
92071-3788 GROMMETグロメツト |
92071-3788 |
from US $10.45 |
||
|
92072
|
92072
92072-1239 BAND,L=188バンド，L=188 |
92072-1239 |
from US $1.90 |
||
|
92145
|
92145
92145-3720 SPRINGスプリング |
92145-3720 |
from US $63.13 |
||
|
92150
|
92150
92150-3714 BOLT,6X16ボルト，6X16 |
92150-3714 |
from US $8.40 |
||
|
92150A
|
92150A
92150-3758 BOLT,6X20ボルト，6X20 |
92150-3758 |
from US $3.64 |
||
|
92151
|
92151
92151-3767 BOLT,8X29ボルト，8X29 |
92151-3767 |
from US $6.18 |
||
|
92151A
|
92151A
92151-3770 BOLT,SOCKET,6X16ボルト，ソケツト，6X16 |
92151-3770 |
from US $1.43 |
||
|
92160
|
92160
92160-3790 DAMPERダンパ |
92160-3790 |
from US $6.01 |
||
| replacement | |||||
|
92160
|
92160
92161-1919 DAMPERダンパ |
92161-1919 |
from US $8.08 |
||
|
92161
|
92161
92161-3743 DAMPERダンパ |
92161-3743 |
from US $25.42 |
||
|
92200
|
92200
92200-3723 WASHER,3.5X12X1ワツシヤ，3.5X12X1 |
92200-3723 |
from US $3.33 |
||
|
92200A
|
92200A
92200-3725 WASHERワツシヤ，20.5X80X3 |
92200-3725 |
from US $12.04 |
||
