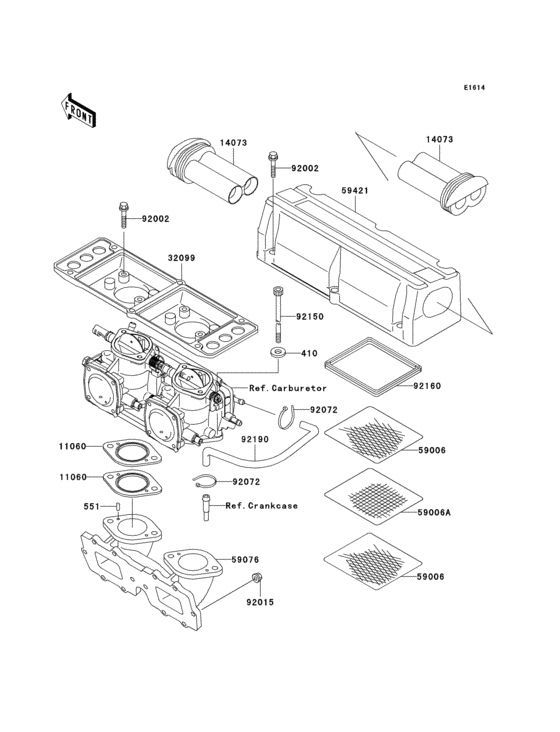

Flame arrester Diagram Kawasaki JET SKI 800 SX-R JS800-A
- Engine Capacity
- 800
- Year
- 2011
- Commercial Name
- JS800-A
- Sales region
- Australia
- Colour
- Jet White (8C)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
410
|
410
410S0800 WASHER |
410S0800 |
from US $0.95 |
||
|
551
|
551
551R0416 PIN-DOWEL |
551R0416 |
from US $3.64 |
||
|
11060
|
11060
11060-3761 GASKET,CARBURETOR |
11060-3761 |
from US $8.71 |
||
|
14073
|
14073
14073-3733 DUCT |
14073-3733 |
from US $24.68 |
||
|
32099
|
32099
32099-3801 CASE |
32099-3801 |
US $91.70 |
||
|
59006
|
59006
59006-3707 ARRESTER-FLAME |
59006-3707 |
from US $23.34 |
||
|
59006A
|
59006A
59006-3708 ARRESTER-FLAME |
59006-3708 |
from US $13.46 |
||
|
59076
|
59076
59076-3730 MANIFOLD-INTAKE |
59076-3730 |
from US $207.64 |
||
|
59421
|
59421
59421-3733 COVER-INTAKE |
59421-3733 |
from US $59.54 |
||
|
92002
|
92002
92002-3726 BOLT,6X30 |
92002-3726 |
from US $3.17 |
||
|
92015
|
92015
92015-1385 NUT,CAP,6MM |
92015-1385 |
from US $2.69 |
||
|
92072
|
92072
92072-3874 BAND |
92072-3874 |
from US $2.38 |
||
|
92150
|
92150
92150-3852 BOLT,SOCKET,8X85 |
92150-3852 |
from US $13.46 |
||
|
92160
|
92160
92160-3704 DAMPER |
92160-3704 |
from US $14.57 |
||
|
92190
|
92190
92190-3965 TUBE |
92190-3965 |
from US $12.04 |
