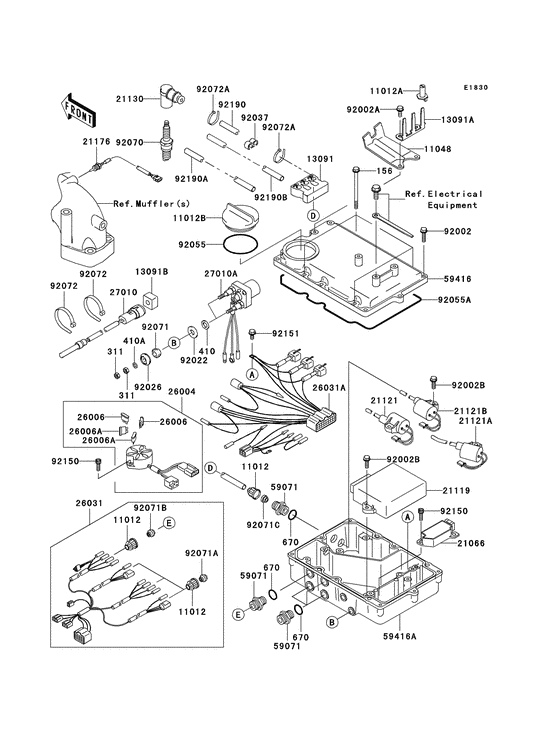

Ignition System Diagram Kawasaki JET SKI 900 STX JT900-E
- Engine Capacity
- 900
- Year
- 2004
- Commercial Name
- JT900-E
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- JT900-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-3005 CAP |
11012-3005 |
from US $5.39 |
||
|
11012A
|
11012A
11012-3768 CAPCap,holder; |
11012-3768 |
from US $6.34 |
||
|
11012B
|
11012B
11012-3791 CAP |
11012-3791 |
from US $9.83 |
||
|
11048
|
11048
11048-3770 BRACKET |
11048-3770 |
from US $27.38 |
||
|
13091
|
13091
13091-3785 HOLDER |
13091-3785 |
from US $14.44 |
||
|
13091A
|
13091A
13091-3800 HOLDER |
13091-3800 |
from US $10.49 |
||
|
13091B
|
13091B
13091-3804 HOLDER |
13091-3804 |
from US $4.91 |
||
|
21066
|
21066
21066-3712 REGULATOR-VOLTAGE |
21066-3712 |
from US $162.62 |
||
|
21119
|
21119
21119-3763 IGNITER |
21119-3763 |
US $676.63 |
||
|
21121
|
21121
21121-3708 COIL-IGNITION,#1Coil-ignition,#1; |
21121-3708 |
US $112.80 |
||
|
21121A
|
21121A
21121-3709 COIL-IGNITION,#2Coil-ignition,#2; |
21121-3709 |
US $152.59 |
||
|
21121B
|
21121B
21121-3710 COIL-IGNITION,#3Coil-ignition,#3; |
21121-3710 |
from US $146.66 |
||
|
21130
|
21130
21130-3706 Cap-spark plug |
21130-3706 |
from US $41.14 |
||
|
21176
|
21176
21176-3758 Sensor,water TempSensor,water temp; |
21176-3758 |
from US $100.53 |
||
|
26004
|
26004
26004-3719 FUSE-ASSY |
26004-3719 |
US $45.93 |
||
|
26006
|
26006
26006-1007 FUSE,BLADE,10A,REDFuse,10a-r; |
26006-1007 |
from US $3.33 |
||
|
26006A
|
26006A
26006-1060 FUSE,BLADE,3A,PURPLEFuse,3a-p; |
26006-1060 |
from US $4.12 |
||
|
26031
|
26031
26031-3709 HARNESS,CASE-HARNESSHarness,case-harness; |
26031-3709 |
from US $155.58 |
||
|
26031A
|
26031A
26031-3713 HARNESS,IGNITERHarness,igniter; |
26031-3713 |
from US $125.36 |
||
|
27010
|
27010
27010-3744 SWITCH |
27010-3744 |
from US $141.67 |
||
|
27010A
|
27010A
27010-3760 SWITCH,STARTER RELAYSwitch,starter relay; |
27010-3760 |
from US $81.23 |
||
|
59071
|
59071
59071-3001 JOINT |
59071-3001 |
from US $5.39 |
||
|
59416
|
59416
59416-3760 CASE-ELECTRIC,UPPCase-electric,upp; |
59416-3760 |
from US $78.53 |
||
|
59416A
|
59416A
59416-3764 CASE-ELECTRIC,LWRCase-electric,lwr; |
59416-3764 |
from US $74.43 |
||
|
92002
|
92002
92002-3714 BOLT,6X25Bolt,6x25; |
92002-3714 |
from US $3.33 |
||
|
92002A
|
92002A
92002-3728 BOLT,6X16Bolt,6x16; |
92002-3728 |
from US $3.17 |
||
|
92002B
|
92002B
92002-3755 BOLT,6X20Bolt,6x20; |
92002-3755 |
from US $3.17 |
||
|
92022
|
92022
92022-3035 WASHER,10.5X24X2.5 |
92022-3035 |
from US $2.85 |
||
|
92026
|
92026
92026-3703 SPACER |
92026-3703 |
from US $3.33 |
||
|
92037
|
92037
92037-1603 ClampClamp,hose; |
92037-1603 |
from US $3.17 |
||
|
92055
|
92055
92055-1292 RING-O |
92055-1292 |
from US $4.75 |
||
|
92055A
|
92055A
92055-3738
RING-O,ELECTRIC
Ring-o,electric; |
92055-3738 |
— | ||
|
92070
|
92070
92070-1157 SPARK PLUG BR9ESPlug-spark,br9es(ngk),solid; |
92070-1157 |
from US $3.11 |
||
|
92071
|
92071
92071-3004 GROMMET |
92071-3004 |
from US $3.17 |
||
|
92071A
|
92071A
92071-3786 GROMMET |
92071-3786 |
from US $6.34 |
||
|
92071B
|
92071B
92071-3804 GROMMET |
92071-3804 |
from US $3.01 |
||
|
92071C
|
92071C
92071-527 GROMMET |
92071-527 |
from US $5.70 |
||
|
92072
|
92072
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.90 |
||
|
92072A
|
92072A
92072-3871 BAND,L=99Band,l=99; |
92072-3871 |
from US $2.22 |
||
|
92150
|
92150
92150-3775 BoltBolt,socket,6x18; |
92150-3775 |
from US $3.17 |
||
|
156
|
156
156R0690 BOLT-WP |
156R0690 |
from US $3.17 |
||
|
311
|
311
311R0600 NUT,6M/MNut-hex,6mm; |
311R0600 |
from US $1.09 |
||
|
410
|
410
410B1000
W-PLAIN-S
Washer-plain-small,10mm; |
410B1000 |
— | ||
| replacement | |||||
|
410
|
410
410AA1000 W-PLAIN-SWasher-plain-small,10mm; |
410AA1000 |
from US $0.81 |
||
|
410A
|
410A
410S0600 WASHERWasher-plain-small,6mm; |
410S0600 |
from US $0.95 |
||
|
670
|
670
670B2016 O RING,16MMO ring,16mm; |
670B2016 |
from US $3.20 |
||
|
92151
|
92151
92151-3788 BoltBolt,6x14; |
92151-3788 |
from US $1.27 |
||
|
92190
|
92190
92190-3707 TUBETube,high tension,l=330; |
92190-3707 |
from US $9.66 |
||
|
92190A
|
92190A
92190-3942 TUBE,8X10X565Tube,8x10x565; |
92190-3942 |
from US $5.63 |
||
|
92190B
|
92190B
92190-3943 TUBE,8X10X425Tube,8x10x425; |
92190-3943 |
from US $4.34 |
||
