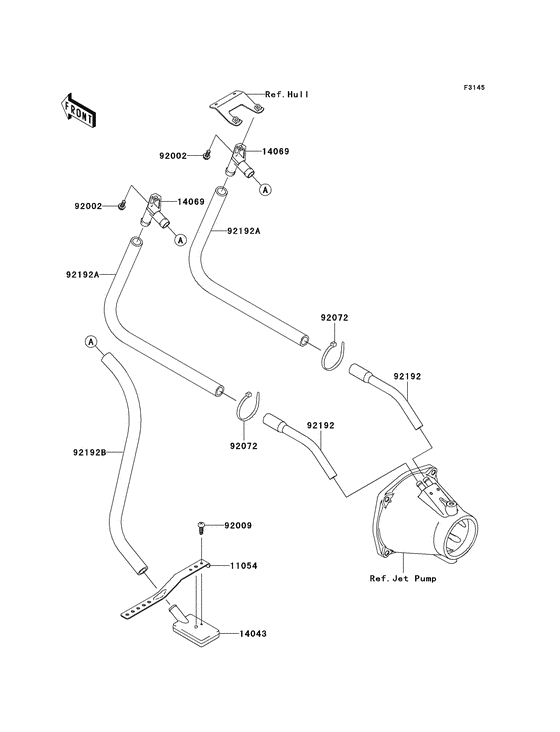

Bilge system Diagram Kawasaki JET SKI STX JT1500-C
- Engine Capacity
- 1500
- Year
- 2008
- Commercial Name
- JT1500-C
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- JT1500-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11054
|
11054
11054-3703 BRACKET,LH&RHBracket,lh&rh; |
11054-3703 |
from US $12.37 |
||
| replacement | |||||
|
11054
|
11054
11056-3721 BRACKET,LH&RHBracket,lh&rh; |
11056-3721 |
from US $15.03 |
||
|
14043
|
14043
14043-3711 FILTER |
14043-3711 |
from US $6.97 |
||
|
14069
|
14069
14069-3708 BREATHER |
14069-3708 |
from US $9.84 |
||
|
92002
|
92002
92002-3728 BOLT,6X16Bolt,6x16; |
92002-3728 |
from US $3.17 |
||
|
92009
|
92009
92009-3762 SCREWScrew,tapping,4x14; |
92009-3762 |
from US $2.53 |
||
|
92072
|
92072
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.90 |
||
|
92192
|
92192
92192-3753 TUBE,HULL-NOZZLETube,hull-nozzle; |
92192-3753 |
from US $17.58 |
||
|
92192A
|
92192A
92192-3754 TUBE,BREATHER-HULLTube,breather-hull; |
92192-3754 |
from US $25.14 |
||
|
92192B
|
92192B
92192-3755 TUBE,FILTER-BREATHERTube,filter-breather; |
92192-3755 |
from US $49.56 |
||
