	Description	OEM Part #	Price
155	155 155R0850 BOLT-WSP-SMALL,8X50 Bolt-wsp-small,8x50;	155R0850	from US $2.69
550	550 550S3035 PIN-COTTER,3X35 Pin-cotter,3x35;	550S3035	from US $1.11
11054	11054 11054-3710 BRACKET,HANDLE PAD Bracket,handle pad;	11054-3710	from US $24.34
11055	11055 11055-3709 BRKT,THROTTLE JS0703 Bracket,throttle lever;	11055-3709	from US $6.18
13107	13107 13107-3740 SHAFT	13107-3740	from US $7.13
13107A	13107A 13107-3795 SHAFT	13107-3795	from US $20.43
13107B	13107B 13107-3803 SHAFT,HANDLE HOLDER P Shaft,handle holder pivot;	13107-3803	from US $46.53
13151	13151 13151-3722 SWITCH-COMP,STOP&STAR Switch-comp,stop&start;	13151-3722	from US $364.45
13168	13168 13168-3754 LEVER	13168-3754	from US $13.16
39058	39058 39058-3744-6Z HANDLE-COMP,F.BLACK Handle-comp,f.black;	39058-3744-6Z	from US $188.12
39063	39063 39063-3727 HOUSING-CONTROL	39063-3727	from US $19.01
39074	39074 39074-3726 LEVER-ASSY-THROTTLE	39074-3726	from US $71.21
39075	39075 39075-3714 LEVER-THROTTLE	39075-3714	from US $30.07
39087	39087 39087-3735-6Z PAD-HANDLE,F.BLACK Pad-handle,f.black;	39087-3735-6Z	from US $190.06
39087A	39087A 39087-3737-6Z PAD-HANDLE,F.BLACK Pad-handle,f.black;	39087-3737-6Z	from US $30.80
	replacement
39087A	39087A 39087-0007-6Z PAD-HANDLE,F.BLACK ブラツク; ハンドル Pad-handle,f.black;	39087-0007-6Z	from US $35.97
39156	39156 39156-3845 PAD,HANDLE Pad,handle;	39156-3845	from US $82.96
	replacements
39156	39156 39156-3851 PAD,HANDLE Pad,handle;	39156-3851	from US $62.71
39156	39156 39156-1752 PAD Pad,handle;	39156-1752	from US $71.91
46012	46012 46012-3730 HOLDER-HANDLE,LWR Holder-handle,lwr;	46012-3730	from US $118.54
46012A	46012A 46012-3732 HOLDER-HANDLE,UPP Holder-handle,upp;	46012-3732	from US $64.19
	replacement
46012A	46012A 46012-3733 HOLDER-HANDLE,UPP Holder-handle,upp;	46012-3733	from US $80.58
46102	46102 46102-3733 ROD,HANDLE POSITION Rod,handle position;	46102-3733	from US $20.43
92002	92002 92002-3763 BOLT,6X12 Bolt,6x12;	92002-3763	from US $3.17
92002A	92002A 92002-3774 BOLT,8X25 Bolt,8x25;	92002-3774	from US $5.39
92009	92009 92009-3781 SCREW,6X20 Screw,6x20;	92009-3781	from US $4.75
92009A	92009A 92009-3836 SCREW Screw,5x30;	92009-3836	from US $3.01
92009B	92009B 92009-3837 SCREW Screw,6x30;	92009-3837	from US $3.17
92015	92015 92015-3805 NUT,CASTLE,14MM Nut,castle,14mm;	92015-3805	from US $23.94
92022	92022 92022-3738 WASHER,15X34X2.0 Washer,15x34x2.0;	92022-3738	from US $4.75
92028	92028 92028-3743 BUSHING	92028-3743	from US $8.08
92033	92033 92033-3723 RING-SNAP	92033-3723	from US $2.53
92037	92037 92037-503 CLAMP,HANDLE PIPE Clamp,handlebar;	92037-503	from US $12.04
92039	92039 92039-3787 RIVET	92039-3787	from US $1.90
92039A	92039A 92039-3788 RIVET	92039-3788	from US $1.43
92072	92072 92072-0105 BAND,L=188.85 Band,l=188.85;	92072-0105	from US $1.43
92072A	92072A 92072-3816 BAND,TETHER SWITCH Band,tether switch;	92072-3816	from US $54.67
	replacements
92072A	92072A 92072-3809 BAND,TETHER SWITCH Band,tether switch;	92072-3809	from US $48.02
92072A	92072A 92072-0891 Band,Tether Switch Band,tether switch;	92072-0891	from US $48.02
92144	92144 92144-3749 SPRING	92144-3749	from US $3.17
92145	92145 92145-3723 SPRING	92145-3723	from US $2.85
92191	92191 92191-3792 TUBE,VINYL,22X350 Tube,22x24x200;	92191-3792	from US $16.95
92200	92200 92200-3738 WASHER	92200-3738	from US $2.53
92200A	92200A 92200-3802 WASHER,21X34X2 Washer,21x34x2;	92200-3802	from US $3.01

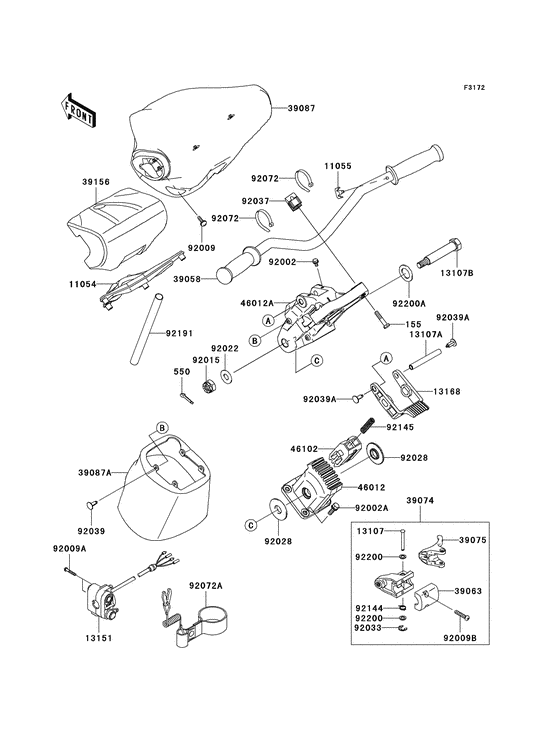

Handlebar Diagram Kawasaki JET SKI STX JT1500-F U.S.A. 10371690-683061

Handlebar Diagram Kawasaki JET SKI STX JT1500-F U.S.A. 10371690-683061
