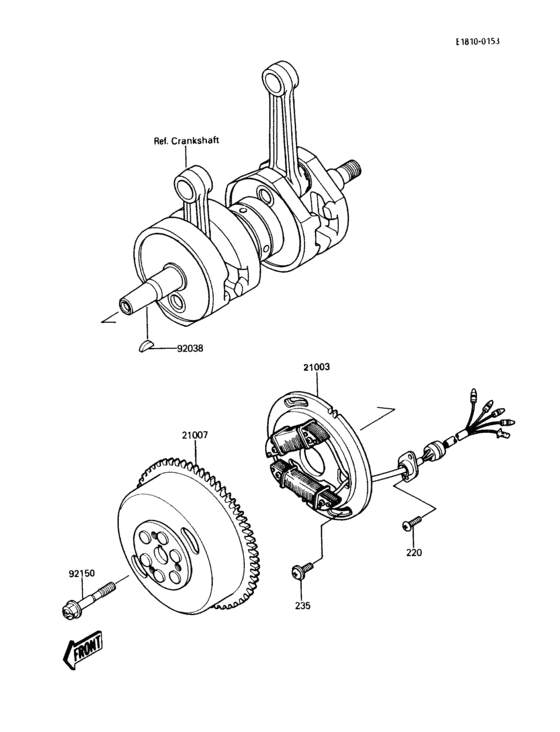

Generator Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1988
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Colour
- 00
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0512
SCREW-PAN-CROS
|
220B0512 |
— | ||
| replacement | |||||
|
220
|
220
220AA0512 SCREW-PAN-CROS |
220AA0512 |
from US $0.78 |
||
|
235
|
235
235B0616
SCREW-PAN-WP-CROS
|
235B0616 |
— | ||
| replacement | |||||
|
235
|
235
235AA0616 SCREW-PAN-WP-CROS |
235AA0616 |
from US $1.24 |
||
|
21003
|
21003
21003-3707 STATOR |
21003-3707 |
from US $460.53 |
||
|
21007
|
21007
21007-3702 ROTOR, MAGNETO |
21007-3702 |
US $481.03 |
||
| replacement | |||||
|
21007
|
21007
21007-3709 ROTOR, MAGNETO |
21007-3709 |
from US $481.03 |
||
|
92038
|
92038
92038-001 WOODRUFF KEY |
92038-001 |
from US $3.73 |
||
|
92150
|
92150
92150-3701 BOLT |
92150-3701 |
from US $21.08 |
||
