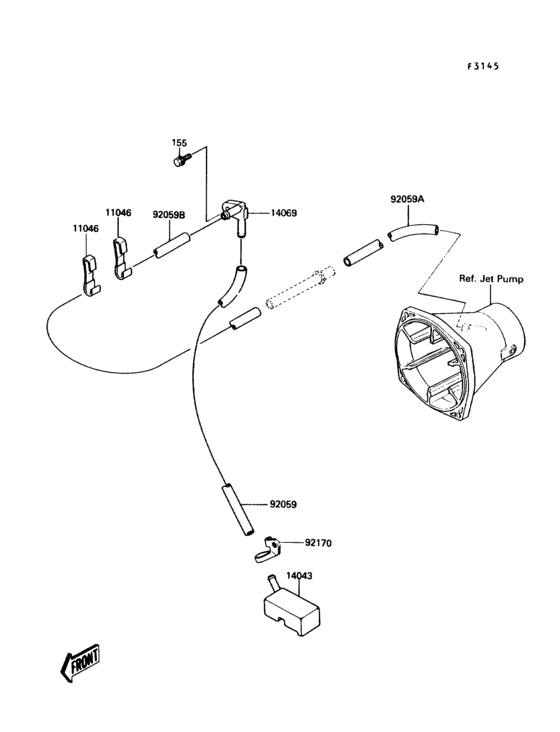

Bilge system Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1989
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Colour
- Jet White (8C)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
155
|
155
155R0825 BOLT-WSP-SMALL,8X25 |
155R0825 |
US $1.43 |
||
|
11046
|
11046
11046-3817 BRACKET,CLAMP |
11046-3817 |
from US $6.66 |
||
|
14043
|
14043
14043-3703 FILER,BILGE |
14043-3703 |
US $12.04 |
||
|
14069
|
14069
14069-3705 BREATHER BILGE |
14069-3705 |
US $5.39 |
||
|
92059
|
92059
92059-3855 TUBE |
92059-3855 |
from US $8.33 |
||
|
92059A
|
92059A
92059-3894 TUBE |
92059-3894 |
US $11.40 |
||
|
92059B
|
92059B
92059-3895 TUBE,13X19X380 |
92059-3895 |
from US $11.03 |
||
|
92170
|
92170
92170-3717 CLAMP,BILGE FILTER |
92170-3717 |
from US $9.22 |
