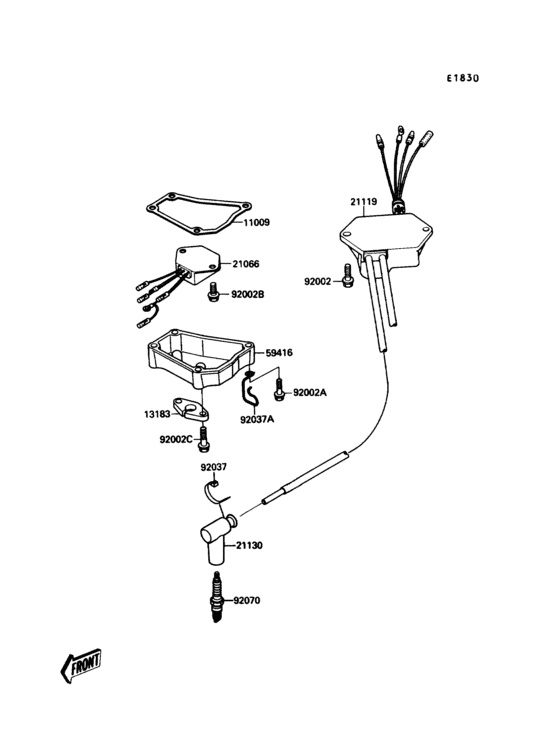

Ignition System Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1989
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Colour
- Jet White (8C)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-3738 GASKET |
11009-3738 |
US $10.60 |
||
| replacement | |||||
|
11009
|
11009
11060-3708 GASKET |
11060-3708 |
US $10.60 |
||
|
13183
|
13183
13183-3712 PLATE |
13183-3712 |
US $16.63 |
||
|
21066
|
21066
21066-3703 REGULATOR-VOLTAGE |
21066-3703 |
from US $171.77 |
||
|
21119
|
21119
21119-3712 IGNITER |
21119-3712 |
from US $487.26 |
||
|
21130
|
21130
21130-1062 Cap-spark plug |
21130-1062 |
from US $25.88 |
||
|
59416
|
59416
59416-3709 CASE-ELECTRIC |
59416-3709 |
from US $30.73 |
||
|
92002
|
92002
92002-3714 BOLT,6X25 |
92002-3714 |
from US $3.33 |
||
|
92002A
|
92002A
92002-3716 BOLT |
92002-3716 |
from US $3.80 |
||
|
92002B
|
92002B
92002-3728 BOLT,6X16 |
92002-3728 |
from US $3.17 |
||
|
92002C
|
92002C
92002-3755 BOLT,6X20 |
92002-3755 |
from US $3.17 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92037A
|
92037A
92037-3739 CLAMP |
92037-3739 |
from US $4.32 |
||
|
92070
|
92070
92070-3701 SPARK PLUG BR7ES |
92070-3701 |
from US $3.11 |
||
