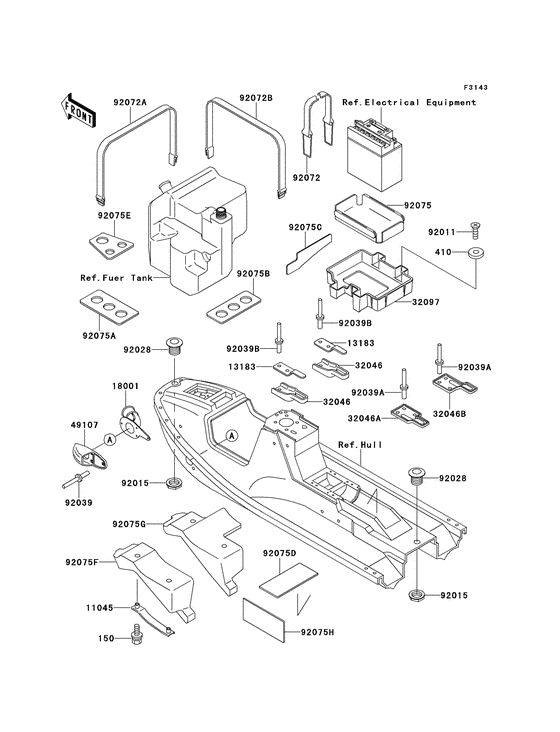

Hull fittings Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1991
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
150
|
150
150R0622 BOLT-WSBolt-ws,6x22; |
150R0622 |
from US $3.33 |
||
|
410
|
410
410S0600 WASHERWasher-plain-small,6mm; |
410S0600 |
from US $0.95 |
||
|
11045
|
11045
11045-3763 BRACKETBracket,water muffler; |
11045-3763 |
from US $13.19 |
||
|
13183
|
13183
13183-3721 PLATE,SEAT,FRPlate,seat,fr; |
13183-3721 |
from US $4.64 |
||
|
18001
|
18001
18001-3719 MUFFLER,TAILMuffler,tail; |
18001-3719 |
from US $64.12 |
||
|
32046
|
32046
32046-3704 BRACKET-SEAT,FRBracket-seat,fr; |
32046-3704 |
US $7.92 |
||
|
32046A
|
32046A
32046-3705 BRACKET-SEAT,CNT,LHBracket-seat,cnt,lh; |
32046-3705 |
from US $9.70 |
||
|
32046B
|
32046B
32046-3706 BRACKET-SEAT,CNT,RHBracket-seat,cnt,rh; |
32046-3706 |
from US $8.62 |
||
|
32097
|
32097
32097-3702 CASE-BATTERY |
32097-3702 |
from US $7.69 |
||
|
49107
|
49107
49107-3703 COVER-EXHAUST PIPE |
49107-3703 |
from US $51.39 |
||
|
92011
|
92011
92011-561 SCREW 0.22 X 0.563Screw,tapping; |
92011-561 |
US $0.95 |
||
|
92015
|
92015
92015-3779 BUSHING ASSY, WHITE |
92015-3779 |
US $10.64 |
||
| replacement | |||||
|
92015
|
92015
13325-3704 BUSHING ASSY, WHITE |
13325-3704 |
from US $9.82 |
||
|
92028
|
92028
92028-3734 Bushing |
92028-3734 |
US $10.64 |
||
| replacement | |||||
|
92028
|
92028
13325-3704 BUSHING ASSY, WHITE |
13325-3704 |
from US $9.82 |
||
|
92039
|
92039
92039-3002 RIVET |
92039-3002 |
from US $3.37 |
||
|
92039A
|
92039A
92039-3714 RIVET |
92039-3714 |
from US $0.79 |
||
|
92039B
|
92039B
92039-3730 RIVET |
92039-3730 |
from US $4.77 |
||
|
92072
|
92072
92072-3706 BAND,BATTERY,L=366Band,battery,l=366; |
92072-3706 |
from US $27.23 |
||
|
92072A
|
92072A
92072-3709 BAND,L=538Band,l=544; |
92072-3709 |
US $33.36 |
||
|
92072B
|
92072B
92072-3712 BAND,L=468Band,l=479; |
92072-3712 |
from US $28.80 |
||
|
92075
|
92075
92075-3714 DAMPERDamper,battery; |
92075-3714 |
US $18.53 |
||
|
92075A
|
92075A
92075-3727 DAMPER,FUEL TANK,LHDamper,fuel tank,lh; |
92075-3727 |
from US $29.83 |
||
|
92075B
|
92075B
92075-3729 DAMPER,FUEL TANK,RHDamper,fuel tank,rh; |
92075-3729 |
from US $26.10 |
||
|
92075C
|
92075C
92075-3738 DAMPER,FUEL TANKDamper,fuel tank; |
92075-3738 |
from US $15.03 |
||
|
92075D
|
92075D
92075-3750 DAMPERDamper,fire extinguisher; |
92075-3750 |
from US $14.94 |
||
|
92075E
|
92075E
92075-3751 DAMPER,FUEL TANKDamper,fuel tank; |
92075-3751 |
from US $24.32 |
||
|
92075F
|
92075F
92075-3761 DAMPERDamper,water muffler,lh; |
92075-3761 |
from US $172.24 |
||
|
92075G
|
92075G
92075-3762 DAMPERDamper,water muffler,rh; |
92075-3762 |
from US $181.78 |
||
|
92075H
|
92075H
92075-522 DAMPER,3.OTX90X200Damper,muffler; |
92075-522 |
from US $11.57 |
||
