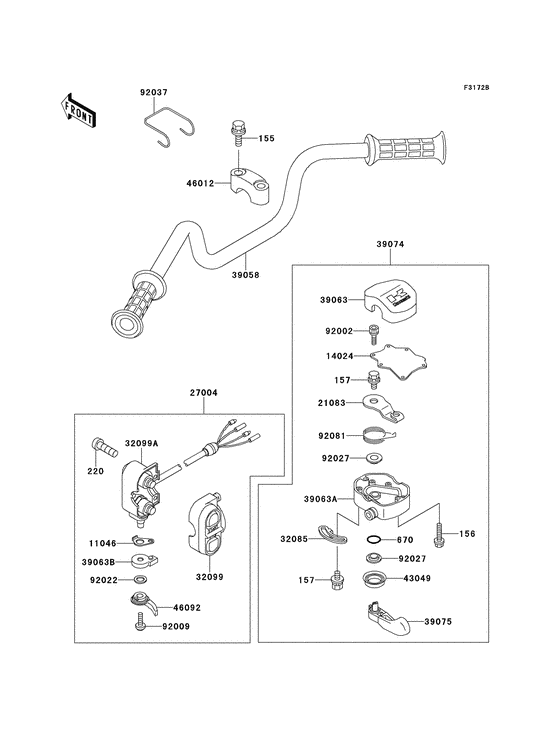

Handlebar Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1994
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
155
|
155
155R0835 BOLT-WSP-SMALL,8X35Bolt-wsp-small,8x35; |
155R0835 |
from US $1.90 |
||
|
156
|
156
156R0525 BOLT-WP,5X25Bolt-wp,5x25; |
156R0525 |
from US $1.58 |
||
|
157
|
157
157R0512 BOLT-WSP,5X12Bolt-wsp,5x12; |
157R0512 |
from US $1.58 |
||
|
220
|
220
220R0530 SCREW-PAN-CROS,5X30Screw-pan-cros,5x30; |
220R0530 |
from US $1.43 |
||
|
670
|
670
670B1508 O RING,8MMO ring,8mm; |
670B1508 |
from US $1.63 |
||
|
11046
|
11046
11046-3707 BRACKET |
11046-3707 |
from US $10.42 |
||
|
14024
|
14024
14024-3701 COVER,THROTTLE LEVERCover,throttle lever; |
14024-3701 |
from US $26.60 |
||
|
21083
|
21083
21083-3701 ARM,THROTTLE LEVERArm,throttle lever; |
21083-3701 |
from US $9.98 |
||
|
27004
|
27004
27004-3724 SWITCH-ASSY,STOP&STARSwitch-assy,stop&start; |
27004-3724 |
from US $335.32 |
||
|
32085
|
32085
32085-3709 STOPPER |
32085-3709 |
from US $7.96 |
||
|
32099
|
32099
32099-3777 CASE,FR,SWITCHCase,fr,switch; |
32099-3777 |
from US $57.29 |
||
|
32099A
|
32099A
32099-3778 CASE,RR,SWITCHCase,rr,switch; |
32099-3778 |
from US $224.46 |
||
|
39058
|
39058
39058-3710 HANDLE-COMP |
39058-3710 |
from US $184.18 |
||
| replacement | |||||
|
39058
|
39058
39058-3740 HANDLE-COMP |
39058-3740 |
US $184.18 |
||
|
39063
|
39063
39063-3713 HOUSING-CONTROL,UPPHousing-control,upp; |
39063-3713 |
from US $47.56 |
||
|
39063A
|
39063A
39063-3714 HOUSING-CONTROL,LWRHousing-control,lwr; |
39063-3714 |
from US $65.02 |
||
|
39063B
|
39063B
39063-3717 HOUSING-CONTROL,STARTHousing-control,starter cable; |
39063-3717 |
from US $6.91 |
||
|
39074
|
39074
39074-3714 LEVER-ASSY-THROTTLE |
39074-3714 |
US $268.62 |
||
| replacements | |||||
|
39074
|
39074
14024-3701 COVER,THROTTLE LEVER |
14024-3701 |
from US $26.60 |
||
|
39074
|
39074
156R0525 BOLT-WP,5X25 |
156R0525 |
from US $1.58 |
||
|
39074
|
39074
157R0512 BOLT-WSP,5X12 |
157R0512 |
from US $1.58 |
||
|
39074
|
39074
32085-3709 STOPPER |
32085-3709 |
from US $7.96 |
||
|
39074
|
39074
39063-3713 HOUSING-CONTROL,UPP |
39063-3713 |
from US $47.56 |
||
|
39074
|
39074
39063-3714 HOUSING-CONTROL,LWR |
39063-3714 |
from US $65.02 |
||
|
39074
|
39074
39075-3708 LEVER-THROTTLE |
39075-3708 |
from US $56.36 |
||
|
39074
|
39074
670B1508 O RING,8MM |
670B1508 |
from US $1.63 |
||
|
39074
|
39074
92002-3751 BOLT,SOCKET,3X10 |
92002-3751 |
from US $3.82 |
||
|
39074
|
39074
92027-3704 COLLAR,THROTTLE LEVER |
92027-3704 |
from US $3.13 |
||
|
39074
|
39074
92081-3702 SPRING,THROTTLE LEVER |
92081-3702 |
from US $4.64 |
||
|
39075
|
39075
39075-3708 LEVER-THROTTLE |
39075-3708 |
from US $56.36 |
||
|
43049
|
43049
43049-3701 PACKING,THROTTLE LEVEPacking,throttle lever; |
43049-3701 |
from US $5.54 |
||
|
46012
|
46012
46012-3720 HOLDER-HANDLE,UPPHolder-handle,upp; |
46012-3720 |
from US $13.62 |
||
|
46092
|
46092
46092-3703 LEVER-GRIP,STARTERLever-grip,starter; |
46092-3703 |
from US $8.30 |
||
|
92002
|
92002
92002-3751 BOLT,SOCKET,3X10Bolt,socket,3x10; |
92002-3751 |
from US $3.82 |
||
|
92009
|
92009
92009-3713 SCREW,5X10Screw,5x10; |
92009-3713 |
from US $3.29 |
||
|
92022
|
92022
92022-3735 WASHER,WAVEWasher,wave; |
92022-3735 |
from US $3.85 |
||
|
92027
|
92027
92027-3704 COLLAR,THROTTLE LEVERCollar,throttle lever; |
92027-3704 |
from US $3.13 |
||
|
92037
|
92037
92037-3734 CLAMP,CABLEClamp,cable; |
92037-3734 |
from US $4.64 |
||
|
92081
|
92081
92081-3702 SPRING,THROTTLE LEVERSpring,throttle lever return; |
92081-3702 |
from US $4.64 |
||
