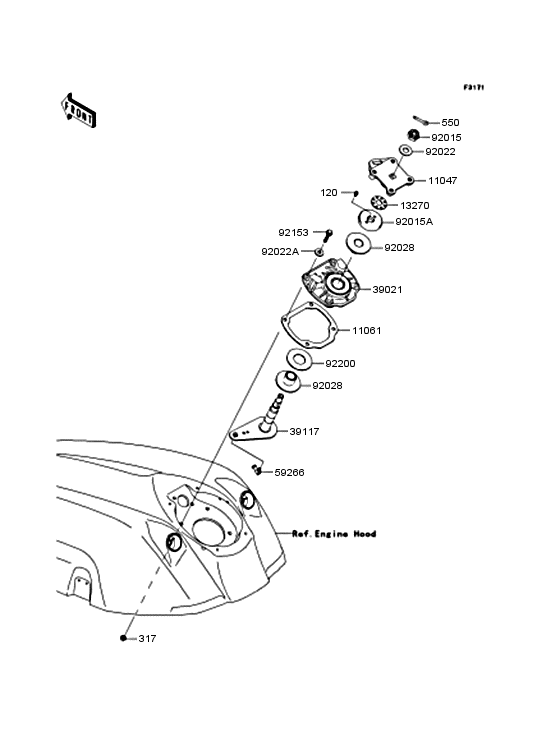

Handle pole Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 2005
- Commercial Name
- JF650-A
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JS800AE 000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120R0510 BOLT-SOCKET,5X10ボルト(ロツカクアナ)，5X10 |
120R0510 |
from US $0.95 |
||
|
317
|
317
317R0800 NUTロツカク ナツト(コガタ) |
317R0800 |
from US $0.96 |
||
|
550
|
550
550S3035 PIN-COTTER,3X35ワリ ピン，3X35 |
550S3035 |
from US $1.11 |
||
|
11047
|
11047
11047-3759 BRACKET,HANDLE HOLDERブラケツト，ハンドル ホルダ |
11047-3759 |
from US $84.22 |
||
|
11061
|
11061
11061-3741 ガスケツト，ハンドル ポール ブラケツトガスケツト，ハンドル ポール ブラケツト |
11061-3741 |
US $11.09 |
||
|
13270
|
13270
13270-3808 PLATE,STEERING NUTプレ-ト，ステアリング ナツト |
13270-3808 |
from US $5.86 |
||
|
39021
|
39021
39021-3717 ブラケツト(ハンドルポ-ル)ブラケツト(ハンドルポ-ル) |
39021-3717 |
US $139.28 |
||
|
39117
|
39117
39117-3717 シヤフト(ステア)シヤフト(ステア) |
39117-3717 |
US $248.29 |
||
|
59266
|
59266
59266-3707 JOINT-BALLジヨイント(ボ-ル) |
59266-3707 |
from US $51.31 |
||
|
92015
|
92015
92015-3805 NUT,CASTLE,14MMナツト，キヤツスル，14MM |
92015-3805 |
from US $23.94 |
||
|
92015A
|
92015A
92015-3854 NUT,STEERING SHAFT,20ナツト，ステアリング，20MM |
92015-3854 |
from US $69.56 |
||
| replacement | |||||
|
92015A
|
92015A
92210-3799 NUT,STEERING SHAFT,20ナツト，ステアリング，20MM |
92210-3799 |
from US $58.49 |
||
|
92022
|
92022
92022-3738 WASHER,15X34X2.0ワツシヤ，15X34X2.0 |
92022-3738 |
from US $4.75 |
||
|
92022A
|
92022A
92022-3744 WASHERワツシヤ，8.4X23X2.5 |
92022-3744 |
from US $3.01 |
||
|
92028
|
92028
92028-3748 BUSHING,STEERINGブツシング，ステアリング |
92028-3748 |
from US $18.37 |
||
|
92153
|
92153
92153-3726 ボルト，8x40ボルト，8X40 |
92153-3726 |
US $3.17 |
||
|
92200
|
92200
92200-3718 WASHER,32.5X70X2ワツシヤ，32.5X70X2 |
92200-3718 |
from US $11.88 |
||
