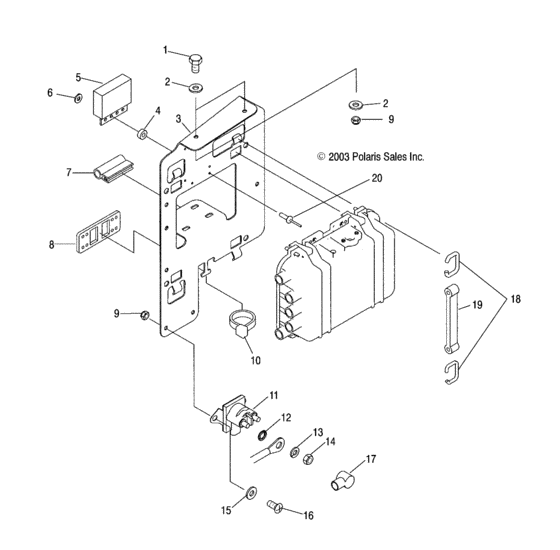

Electrical box mounting (W045297DA/IA/IB) Diagram Polaris FREEDOM
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517798 Scr,m6x1,0x25 ss |
7517798 |
US $1.93 |
||
|
2
|
2
7555839
Washer, flat, s,s,(10)
|
7555839 |
— | ||
|
3
|
3
5246640
Brkt-emm/e-box
|
5246640 |
— | ||
|
4
|
4
7556091 Spacer |
7556091 |
US $2.45 |
||
|
5
|
5
4010615
Lr 85,ext, mount,lamp driver
|
4010615 |
— | ||
|
6
|
6
7556218
Rivet-burr 1/8" al
|
7556218 |
— | ||
|
7
|
7
5521616
Bumper-brkt
|
5521616 |
— | ||
|
8
|
8
5246708 Anchor-cable tie,large |
5246708 |
US $26.60 |
||
|
9
|
9
7546704
Nut, nylok, ss,
|
7546704 |
— | ||
|
10
|
10
7080598 Cable tie,21,25 inch |
7080598 |
US $5.11 |
||
|
11
|
11
4011043
Solenoid-starter,waterprf,diod
|
4011043 |
— | ||
|
12
|
12
7556261
Washer-lock,m6,external,ss
|
7556261 |
— | ||
|
13
|
13
7552613
Washer, lock
|
7552613 |
— | ||
|
14
|
14
7546705 Nut, 6 mm,,s,s, |
7546705 |
US $2.45 |
||
|
15
|
15
7555836 Washer |
7555836 |
US $2.28 |
||
|
16
|
16
7517717 Scr-m6x1,0x12 ph/pan hd-ss (10) |
7517717 |
US $1.89 |
||
|
17
|
17
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
18
|
18
5243775
Hook,strap,narrow
|
5243775 |
— | ||
|
19
|
19
5411456
Strap
|
5411456 |
— | ||
|
20
|
20
7661042 Rivet-pop (50) |
7661042 |
US $1.89 |
