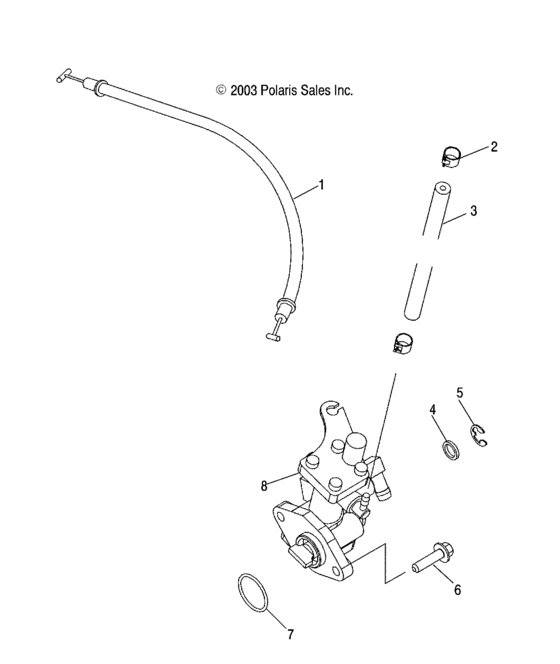

Oil pump (W045297DA/IA/IB) Diagram Polaris FREEDOM
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7081022
Cable-oil pump w/thick neck
|
7081022 |
— | ||
|
2
|
2
7080603 Clamp |
7080603 |
US $2.45 |
||
|
3
|
3
8450061-60
Line, oil
|
8450061-60 |
— | ||
|
4
|
4
7555944 Washer(10) |
7555944 |
US $2.35 |
||
|
5
|
5
7710427 Ring-e,ret, |
7710427 |
US $3.75 |
||
|
6
|
6
7516605 Bolt(10) |
7516605 |
US $1.89 |
||
|
7
|
7
5411293
O-ring
|
5411293 |
— | ||
|
8
|
8
2540073
Pump,oil
Incl. 7; |
2540073 |
— |
