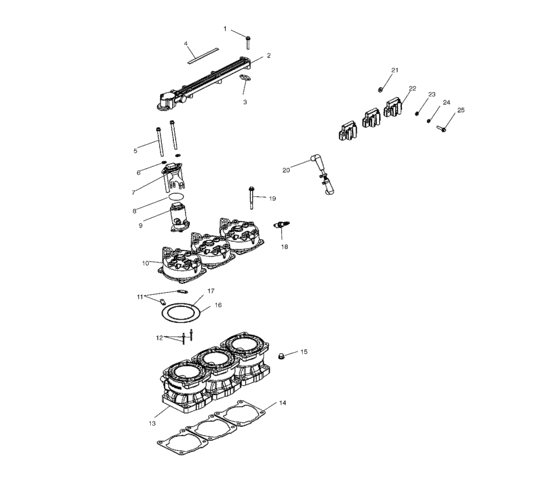

Manifold/ignition (W035098CA/W035098IA) Diagram Polaris GENESIS I
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7516806 Bolt |
7516806 |
US $6.69 |
||
|
2
|
2
1202217-329
Asm., manifold, water
|
1202217-329 |
— | ||
|
3
|
3
5830061
Gasket,water manif,
|
5830061 |
— | ||
|
4
|
4
7075383
Decal, warning
|
7075383 |
— | ||
|
5
|
5
7517832
Scr-omc,special,pds
|
7517832 |
— | ||
|
6
|
6
7555835
Washer, flat, s,s,,(10)
|
7555835 |
— | ||
|
7
|
7
5247092
Cap
|
5247092 |
— | ||
|
8
|
8
5412393
O-ring-1,475idx,210 cs#2-325
|
5412393 |
— | ||
|
9
|
9
1253370
Injector
|
1253370 |
— | ||
|
10
|
10
3021176-093
Head, cylinder
MAG;CNTR; |
3021176-093 |
— | ||
| replacement | |||||
|
10
|
10
2201940
Kit-head cylinder 3021176
MAG;CNTR; |
2201940 |
— | ||
|
10
|
10
3021188-093
Head, cylinder
PTO; |
3021188-093 |
— | ||
| replacement | |||||
|
10
|
10
2201939
Kit-head cylinder 3021188
PTO; |
2201939 |
— | ||
|
11
|
11
5244008
Restrictor-dfi cyl head
|
5244008 |
— | ||
|
12
|
12
7661072
Rivet,(50)5/32-alum
|
7661072 |
— | ||
|
13
|
13
3021017
Cylinder-84mm,pwc
|
3021017 |
— | ||
|
14
|
14
5830123
Gasket,cyl.base
|
5830123 |
— | ||
|
15
|
15
7547021 Nut |
7547021 |
US $4.43 |
||
|
16
|
16
5412232 O-ring-4.98x5.129x.07-1.489 |
5412232 |
US $10.61 |
||
|
17
|
17
5411573
O-ring-90mmx94mmx2mm,hi-temp
|
5411573 |
— | ||
|
18
|
18
3070189
Spark-plug-ngk,dfi pzfr6h (4)
|
3070189 |
— | ||
|
19
|
19
7518031
Bolt-m8x1,25x75-hx/fl-ss,w/nys
|
7518031 |
— | ||
|
20
|
20
4010185-30
Asm., wire, spark plug
|
4010185-30 |
— | ||
|
21
|
21
7556118
Washer
|
7556118 |
— | ||
|
22
|
22
4010184
Coil,ignition,omc
|
4010184 |
— | ||
|
23
|
23
7555836 Washer |
7555836 |
US $2.28 |
||
|
24
|
24
7555949 Washer,lock |
7555949 |
US $3.75 |
||
|
25
|
25
7516817
Screw
|
7516817 |
— | ||
