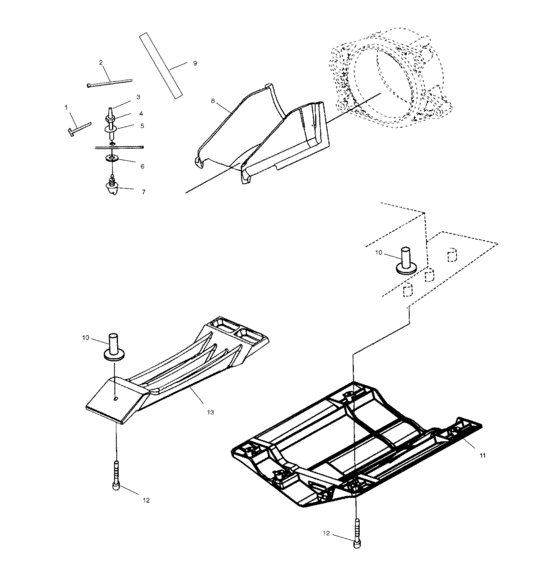

Water inlet (W035098CA/W035098IA) Diagram Polaris GENESIS I
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
7080483
Cable tie,4 inch
|
7080483 |
— | ||
2
|
2
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
3
|
3
8450070-235 Pitot line,90deg formed,235cm, |
8450070-235 |
US $30.08 |
||
replacement | |||||
3
|
3
8450070-277
New Genuine Part
|
8450070-277 |
— | ||
4
|
4
7547003 Nut |
7547003 |
US $1.89 |
||
5
|
5
7555873
Washer,flat,nylon(10)
|
7555873 |
— | ||
6
|
6
5810879 Gasket, pitot |
5810879 |
US $1.89 |
||
7
|
7
5431634 Fitting,pilot,molded |
5431634 |
US $15.02 |
||
8
|
8
5433011 Scoop-inlet |
5433011 |
US $33.76 |
||
9
|
9
7081117
Velcro-tie strap,1/2"x6"
|
7081117 |
— | ||
10
|
10
5132471
Insert,1/4-20x1,0
|
5132471 |
— | ||
11
|
11
5631130-329
Plate-ride,bk
|
5631130-329 |
— | ||
12
|
12
7517707 Screw |
7517707 |
US $5.64 |
||
13
|
13
5630886 Grate-inlet |
5630886 |
US $129.43 |
