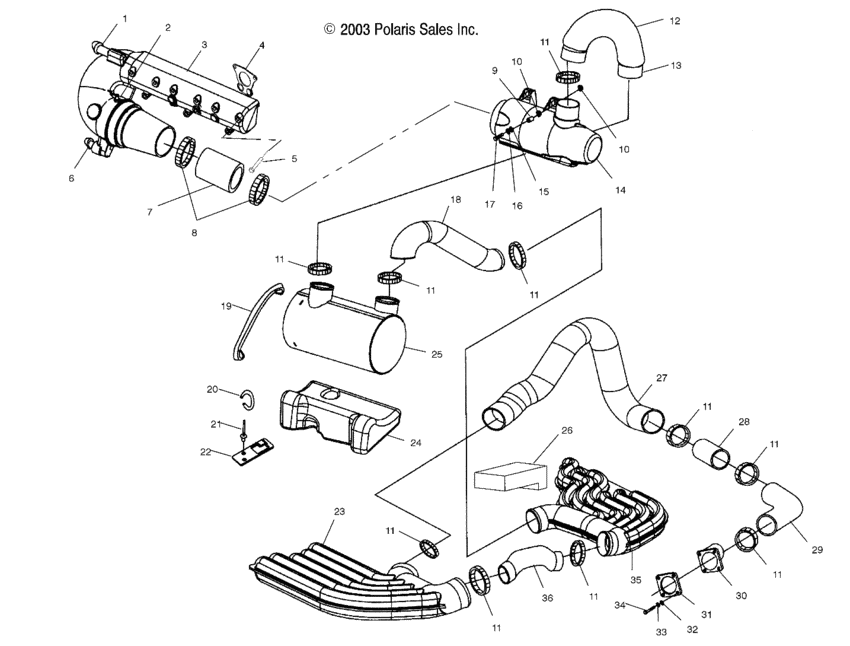

Exhaust system (W045098CA/IA) Diagram Polaris GENESIS I
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7052105
Fitting,screen,exh,
|
7052105 |
— | ||
|
2
|
2
7052251
Fitting-injector,exhaust,090
|
7052251 |
— | ||
|
3
|
3
1261259-329
Asm-manifold,ex log w/def,blk
Incl. 2,6; |
1261259-329 |
— | ||
|
4
|
4
5811045
Gasket,exh,flng
|
5811045 |
— | ||
|
5
|
5
7517562 Scr-m8x1,25x95-hx/fl-ss |
7517562 |
US $11.83 |
||
|
6
|
6
7052071 Fitting, pipe |
7052071 |
US $19.51 |
||
|
7
|
7
5411887
Hose,cover,exhaust pipe
|
5411887 |
— | ||
|
8
|
8
7080972 Clamp-hose constant torque 550 |
7080972 |
US $41.27 |
||
|
9
|
9
5132567
Tube-spacer,,402x,5x18ga ss23,
|
5132567 |
— | ||
|
10
|
10
5411547
Grommet,rbr,mld,
|
5411547 |
— | ||
|
11
|
11
7080907 Clamp,hose,3,75,ss |
7080907 |
US $9.85 |
||
|
12
|
12
5521546
Conduit, hose
|
5521546 |
— | ||
| replacement | |||||
|
12
|
12
5521547
Conduit-hose,3.0idx48
|
5521547 |
— | ||
|
13
|
13
5411784
Hose-pipe/silencer,3,03 id
|
5411784 |
— | ||
|
14
|
14
1261110-329
Weld-exhaust pipe,pwc 2,blk
|
1261110-329 |
— | ||
|
15
|
15
7555841
Washer, flat
|
7555841 |
— | ||
|
16
|
16
7552608
Washer, lock, ss,
|
7552608 |
— | ||
|
17
|
17
7516911
Screw
|
7516911 |
— | ||
|
18
|
18
5411843
Hose-silencer/resonator
|
5411843 |
— | ||
|
19
|
19
5410853
Strap,rubber
|
5410853 |
— | ||
|
20
|
20
5243775
Hook,strap,narrow
|
5243775 |
— | ||
|
21
|
21
7621479 Rivet(50) |
7621479 |
US $2.45 |
||
|
22
|
22
5240134
Clip, strap
|
5240134 |
— | ||
|
23
|
23
5433650
Resonator-genesis,1200,rh
|
5433650 |
— | ||
|
24
|
24
5812369
Foam-cradle,silencer,sp
|
5812369 |
— | ||
|
25
|
25
1261062-067
Asm-silencer exhaust,blk
|
1261062-067 |
— | ||
|
26
|
26
5812225
Foam-support,rear,reverse
|
5812225 |
— | ||
|
27
|
27
5411842
Hose-crossover,pump box
|
5411842 |
— | ||
|
28
|
28
5333875
Tube,3,0idx,083x4,0
|
5333875 |
— | ||
|
29
|
29
5412267
Hose-water,2 3/4",gates
|
5412267 |
— | ||
|
30
|
30
5132457
Ftng,exh,2,5id 1/4-18 npt
|
5132457 |
— | ||
|
31
|
31
5810529
Seal,exh,fitting
|
5810529 |
— | ||
|
32
|
32
7555838
Washer, lock, s,s,
|
7555838 |
— | ||
|
33
|
33
7555836 Washer |
7555836 |
US $2.28 |
||
|
34
|
34
7515116
Screw, s,s,
|
7515116 |
— | ||
|
35
|
35
5433649 Resonator-genesis,1200,lh |
5433649 |
US $108.80 |
||
|
36
|
36
5411844
Hose-resonator,lh/rh
|
5411844 |
— | ||
