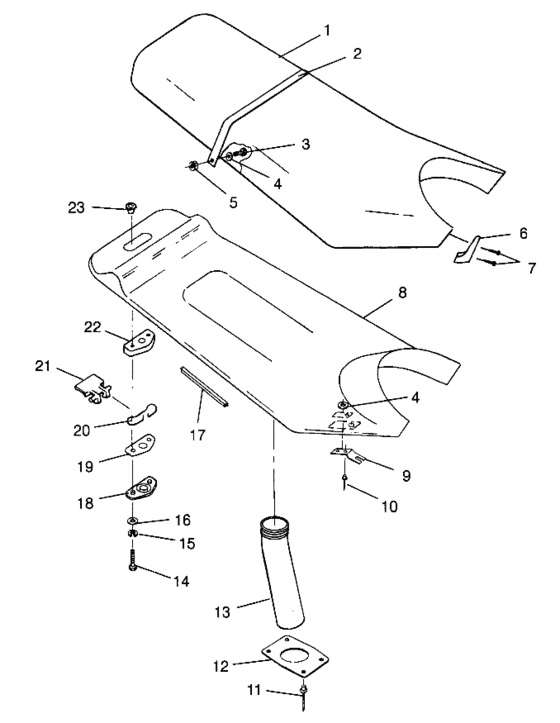

Seat (SL 700 B964066 and Intl. SL 700 I964066) Diagram Polaris INTL SL 700
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2681726-214
Cover,seat,pur.wave
|
2681726-214 |
— | ||
|
1
|
1
2681955-214
Seat asm,pur,wave ,pwc
Incl. 1, 14-23; |
2681955-214 |
— | ||
|
2
|
2
2690134-214
Strap,seat,pur,wave
|
2690134-214 |
— | ||
|
3
|
3
7512055
Screw
10; |
7512055 |
— | ||
| replacement | |||||
|
3
|
3
7512052
Screw
10; |
7512052 |
— | ||
|
4
|
4
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
5
|
5
7541935
Nut, weld
|
7541935 |
— | ||
|
6
|
6
5432124-214
Shield,lh seat,pur,wave
|
5432124-214 |
— | ||
|
6
|
6
5432125-214
Shield,rh seat,pur,wave
|
5432125-214 |
— | ||
|
7
|
7
7512089
Screw
10; |
7512089 |
— | ||
|
8
|
8
5432228
Base,seat
No Longer Available; |
5432228 |
— | ||
|
9
|
9
5222694
Clip,seat retainer
|
5222694 |
— | ||
|
10
|
10
7661834 Rivet(50)50; |
7661834 |
US $3.75 |
||
|
11
|
11
7621479 Rivet(50)50; |
7621479 |
US $2.45 |
||
|
12
|
12
5211347
Plate, retainer
|
5211347 |
— | ||
|
13
|
13
5431369
Duct, air outlet
|
5431369 |
— | ||
|
14
|
14
7515123
Bolt, ss,
10; |
7515123 |
— | ||
|
15
|
15
7555838
Washer, lock, s,s,
10; |
7555838 |
— | ||
|
16
|
16
7555839
Washer, flat, s,s,(10)
10; |
7555839 |
— | ||
|
17
|
17
5521368
Seal,seat protrusion
|
5521368 |
— | ||
|
18
|
18
5431357
Plate,latch,bot,seat base
|
5431357 |
— | ||
|
19
|
19
5211314
Plate,seatbase latch
|
5211314 |
— | ||
|
20
|
20
7042036
Spring,seatbase latch
|
7042036 |
— | ||
|
21
|
21
5431358
Handle, seat base latch
|
5431358 |
— | ||
|
22
|
22
5431359
Plate,top,seatbase latch
|
5431359 |
— | ||
|
23
|
23
7542137
Nut, tee
10; |
7542137 |
— | ||
