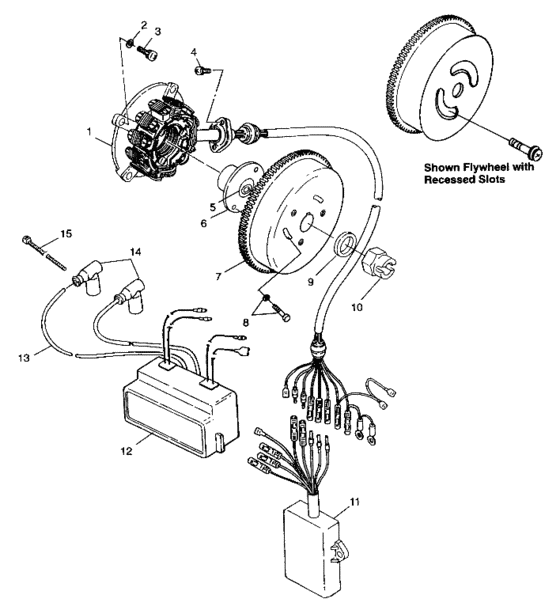

Magneto (B984673) Diagram Polaris INTL SLH
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2873022
2 cyl pwc ign update kit
|
2873022 |
— | ||
|
2
|
2
7555974 Washer10; |
7555974 |
US $1.89 |
||
|
3
|
3
7517229 Screw10; |
7517229 |
US $1.89 |
||
|
4
|
4
7516809
Bolt
10; |
7516809 |
— | ||
|
5
|
5
5411320
O-ring
|
5411320 |
— | ||
|
6
|
6
5432282
Holder, magnet
|
5432282 |
— | ||
|
7
|
7
4060164
Flywheel asm.
Incl. 5-8; |
4060164 |
— | ||
| replacement | |||||
|
7
|
7
4010189
Flywheel asm,pwc gen-3 pvl
Incl. 5-8; |
4010189 |
— | ||
|
8
|
8
2201228
Kit,timing screws,pvl
PWC; |
2201228 |
— | ||
|
9
|
9
7555907 Washer10; |
7555907 |
US $3.94 |
||
|
10
|
10
5020779
Nut,hex,(pump drive)
|
5020779 |
— | ||
|
11
|
11
4060148
Controller,ignition
|
4060148 |
— | ||
|
12
|
12
4060121
Coil,ignition,twin
|
4060121 |
— | ||
|
13
|
13
3070178 Wire,sparkplug,2m.KURABE; |
3070178 |
US $20.65 |
||
|
14
|
14
4020155 Cap, sparkplug |
4020155 |
US $33.02 |
||
|
15
|
15
7080483
Cable tie,4 inch
10; |
7080483 |
— | ||
