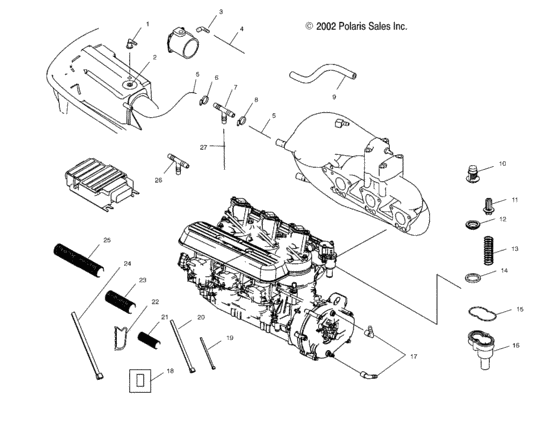

Cooling system (W035303CA/CB/IA/IB) Diagram Polaris MSX 140
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5434149-133
Fitting-thru hull,90 deg,wht
|
5434149-133 |
— | ||
|
2
|
2
5812237
Gasket-1,57odx1,02idx,10,buna
|
5812237 |
— | ||
|
3
|
3
5133884
Fitting-1/4nptx5/16,90?brs,brb
|
5133884 |
— | ||
|
4
|
4
5412374
Hose-water,3/4"x57,5"
|
5412374 |
— | ||
|
5
|
5
8450054-38
Hose, water
|
8450054-38 |
— | ||
|
5
|
5
8450054-42
Hose, water
|
8450054-42 |
— | ||
|
5
|
5
8450054-68
Hose, water
|
8450054-68 |
— | ||
|
5
|
5
8450054-150
Hose, water
|
8450054-150 |
— | ||
|
5
|
5
8450054-72
Hose, water
|
8450054-72 |
— | ||
|
6
|
6
7080476 Clamp, hose, s,s, |
7080476 |
US $9.10 |
||
|
7
|
7
5431784
Fitting,tee
|
5431784 |
— | ||
|
8
|
8
7080476 Clamp, hose, s,s, |
7080476 |
US $9.10 |
||
|
9
|
9
5412377
Hose-water,3/4-"s",t-fit/pipe
|
5412377 |
— | ||
|
10
|
10
7051008
Thermostat, (143 f,)
|
7051008 |
— | ||
|
11
|
11
5432799
Valve,pop-off
|
5432799 |
— | ||
|
12
|
12
5412014
Gasket-thermostat,60d
|
5412014 |
— | ||
|
13
|
13
7042276
Spring-compression,1200ho pop
|
7042276 |
— | ||
|
14
|
14
7556174
Washer-7/8x11/8x1/8,al,anodize
|
7556174 |
— | ||
|
15
|
15
5410860
Seal,o-ring/thermo/fitting
|
5410860 |
— | ||
|
16
|
16
5631136
Cover-thermostat,hf
|
5631136 |
— | ||
|
17
|
17
7052156 Fitting,1/4"hose |
7052156 |
US $37.24 |
||
|
18
|
18
7080464 Anchor, cable tie(10) |
7080464 |
US $3.75 |
||
|
19
|
19
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
20
|
20
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
21
|
21
5521398-60
Conduit, flex
|
5521398-60 |
— | ||
|
22
|
22
5521286-25
Conduit, wire
|
5521286-25 |
— | ||
|
23
|
23
8360011-34 Convolute tubing-3/4"id,34cm (1 |
8360011-34 |
US $5.64 |
||
|
24
|
24
7080598 Cable tie,21,25 inch |
7080598 |
US $5.11 |
||
|
25
|
25
5521287-20
Conduit,flex,1,250id
|
5521287-20 |
— | ||
|
25
|
25
5521287-117
Conduit, flex
|
5521287-117 |
— | ||
| replacement | |||||
|
25
|
25
5521287-132 Conduit,flex,1.250id |
5521287-132 |
US $13.14 |
||
|
26
|
26
7052340
Fitting-"t",5/16
|
7052340 |
— | ||
|
27
|
27
5412376
Hose-water,3/4x8cm
|
5412376 |
— | ||
