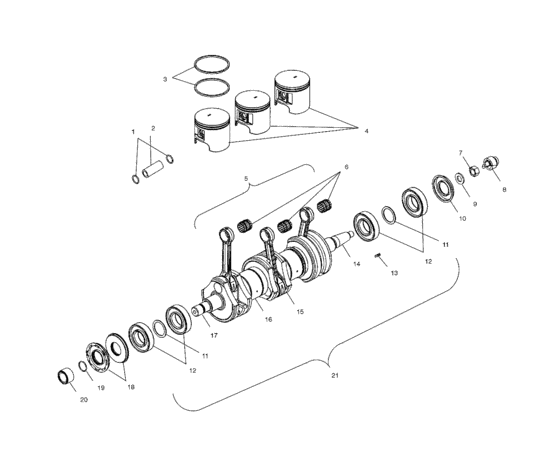

Crankshaft and piston (W035303CA/CB/IA/IB) Diagram Polaris MSX 140
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3021179 Circlip,piston,22mmx1,6 (2) |
3021179 |
US $8.17 |
||
|
2
|
2
3023030
Pin, piston
|
3023030 |
— | ||
| replacement | |||||
|
2
|
2
3021164
Pin,piston,22mm nitrated
|
3021164 |
— | ||
|
3
|
3
2201631
Kit,piston,ring,standard,85mm
Standard; |
2201631 |
— | ||
|
4
|
4
2202337 Kit-piston asm 85mm standard gStd.;Incl.1,2,3; |
2202337 |
US $304.87 |
||
|
5
|
5
2201445
Kit, connecting rod assembly
|
2201445 |
— | ||
|
6
|
6
3552112 Bearing,17ndl,pstnpin,If built before 10/15/03; |
3552112 |
US $44.26 |
||
|
6
|
6
3514357 Bearing-17-22x27x25,pnpin,koyoIf built after 10/15/03; |
3514357 |
US $43.21 |
||
|
7
|
7
7546909 Nut |
7546909 |
US $24.41 |
||
|
8
|
8
5432576
Coupler
|
5432576 |
— | ||
|
9
|
9
7555907 Washer |
7555907 |
US $3.94 |
||
|
10
|
10
3610044 Seal |
3610044 |
US $46.17 |
||
|
11
|
11
7555905 Bushing |
7555905 |
US $5.22 |
||
|
12
|
12
3585503 Bearing,ball |
3585503 |
US $40.25 |
||
|
13
|
13
7721117 Key,woodruff |
7721117 |
US $14.18 |
||
|
14
|
14
5131744
Crankweb, mag, 70 mm
|
5131744 |
— | ||
|
15
|
15
5131745
Crankweb, center, 70 mm
|
5131745 |
— | ||
|
16
|
16
5131086
Labyrinth
|
5131086 |
— | ||
|
17
|
17
5131746
Crankweb, pto, 70 mm
|
5131746 |
— | ||
|
18
|
18
5412091
Seal-flange,35x72x7,transcom
|
5412091 |
— | ||
|
19
|
19
5410613 O ring(10) |
5410613 |
US $52.50 |
||
|
20
|
20
5131195
Collar,crankshaft
|
5131195 |
— | ||
|
21
|
21
2202422
Kit-crankshaft 3 cyl ho
Incl. 6,11-17; |
2202422 |
— | ||
