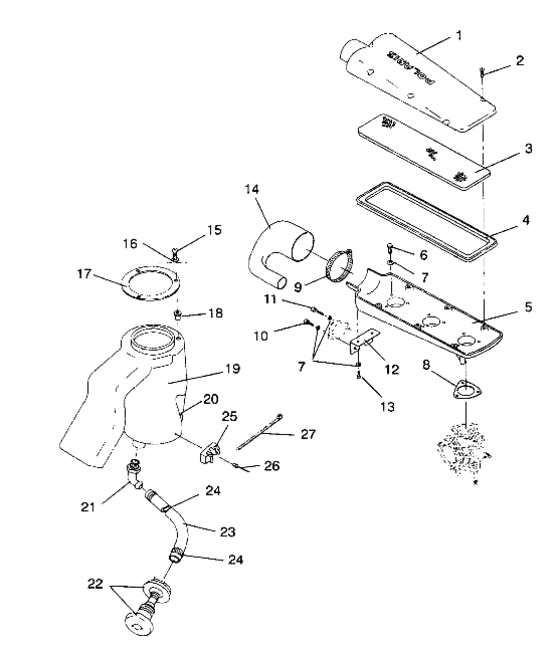

Air vent (SL 650 / B934058) Diagram Polaris SL 650
- Year
- 1993
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5431406-157
Intake,upper manifold
|
5431406-157 |
— | ||
|
2
|
2
7512060
Screw
10; |
7512060 |
— | ||
|
3
|
3
5222779
Screen, intake
|
5222779 |
— | ||
|
4
|
4
5410687
Gasket,int.screen
|
5410687 |
— | ||
|
5
|
5
5130873
Manifold, intake
|
5130873 |
— | ||
|
6
|
6
7516801 Bolt(10)10; |
7516801 |
US $1.89 |
||
|
7
|
7
7555838
Washer, lock, s,s,
10; |
7555838 |
— | ||
|
8
|
8
5830013
Gasket,arrestor/carb.
|
5830013 |
— | ||
|
9
|
9
7080457
Clamp, hose, s,s,
10; |
7080457 |
— | ||
|
10
|
10
7515127
Bolt
10; |
7515127 |
— | ||
|
11
|
11
7515129
Bolt
10; |
7515129 |
— | ||
|
12
|
12
1060103
Brkt, fuel pump,weld.
|
1060103 |
— | ||
|
13
|
13
7515121
Bolt, s,s,(10)
10; |
7515121 |
— | ||
|
14
|
14
5431599
Duct, inlet air
|
5431599 |
— | ||
|
15
|
15
7512041 Bolt, s,s,10; |
7512041 |
US $3.15 |
||
|
16
|
16
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
17
|
17
5410650
Seal,air int,duct
|
5410650 |
— | ||
|
18
|
18
7541901 Nut, well10; |
7541901 |
US $5.64 |
||
|
19
|
19
5431370
Duct,low.air intake
|
5431370 |
— | ||
|
20
|
20
5410682
Grommet, vent
|
5410682 |
— | ||
|
21
|
21
7052073 Elbow |
7052073 |
US $2.77 |
||
|
22
|
22
5431444
Fitting,thru hull,water
|
5431444 |
— | ||
| replacement | |||||
|
22
|
22
5431444-133
Fitting-thru hull,white
|
5431444-133 |
— | ||
|
23
|
23
2871057
Hose,bulk,3/4,waterline
No Longer Available; |
2871057 |
— | ||
|
24
|
24
7080470
Clamp, s.s.
10; |
7080470 |
— | ||
|
25
|
25
5521266 Retainer, vent hose |
5521266 |
US $2.77 |
||
|
26
|
26
7621479 Rivet(50)50; |
7621479 |
US $2.45 |
||
|
27
|
27
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
