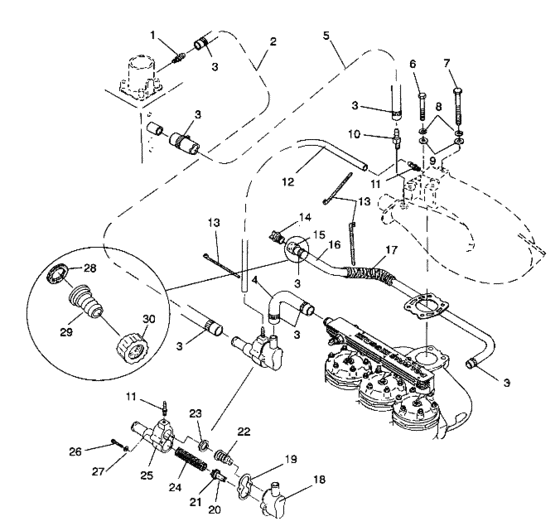

Cooling system (SL 650 / B934058) Diagram Polaris SL 650
- Year
- 1993
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7052071 Fitting, pipe |
7052071 |
US $19.51 |
||
|
2
|
2
5410782
Hose,thermostat hsg/ftg,
|
5410782 |
— | ||
|
3
|
3
7080475
Clamp,hose,ss
10; |
7080475 |
— | ||
|
4
|
4
5410783
Hose,manifold/thermostat hsg,
|
5410783 |
— | ||
|
5
|
5
5410776
Hose,water inlet
|
5410776 |
— | ||
|
6
|
6
7517002
Bolt, s,s,
|
7517002 |
— | ||
|
7
|
7
7517003
Bolt, s,s,
|
7517003 |
— | ||
|
8
|
8
7552611
Washer, lock,ss,
10; |
7552611 |
— | ||
|
9
|
9
7555856
Washer, flat, s,s,
10; |
7555856 |
— | ||
|
10
|
10
5020668
Fitting,water inlet
|
5020668 |
— | ||
|
11
|
11
7052074
Fitting, hose
|
7052074 |
— | ||
|
12
|
12
2871061
Hose,bulk,1/4"id
No Longer Available; |
2871061 |
— | ||
|
13
|
13
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
14
|
14
5431601
Plug, male drain
|
5431601 |
— | ||
|
15
|
15
1240009
Fitting asm,drain/flush
Incl. 28, 30; |
1240009 |
— | ||
|
16
|
16
5410777
Hose, drain eng,
|
5410777 |
— | ||
|
17
|
17
5521287-45
Conduit,flex,1,250id
|
5521287-45 |
— | ||
|
18
|
18
5130956
Housing, thermostat
|
5130956 |
— | ||
|
19
|
19
5830021
Gasket,thermostat hsg.
|
5830021 |
— | ||
|
20
|
20
5431588
Valve, pop-off
|
5431588 |
— | ||
|
21
|
21
5810861
Seal, pop-off valve
|
5810861 |
— | ||
|
22
|
22
7051008
Thermostat, (143 f,)
143 F.; |
7051008 |
— | ||
|
23
|
23
5410781
Gasket, thermostat
|
5410781 |
— | ||
| replacement | |||||
|
23
|
23
5412014
Gasket-thermostat,60d
|
5412014 |
— | ||
|
24
|
24
7041310
Spring, compression
|
7041310 |
— | ||
|
25
|
25
5130957
Cover,thermostat hsg,
|
5130957 |
— | ||
|
26
|
26
7515119 Bolt10; |
7515119 |
US $3.75 |
||
|
27
|
27
7555836 Washer10; |
7555836 |
US $2.28 |
||
|
28
|
28
5810881
Gasket
|
5810881 |
— | ||
|
29
|
29
7052091
Fitting,3/4 barb
|
7052091 |
— | ||
| replacement | |||||
|
29
|
29
1240009
Fitting asm,drain/flush
|
1240009 |
— | ||
|
30
|
30
5431646
Nut, swivel
|
5431646 |
— | ||
| replacement | |||||
|
30
|
30
1240009
Fitting asm,drain/flush
|
1240009 |
— | ||
