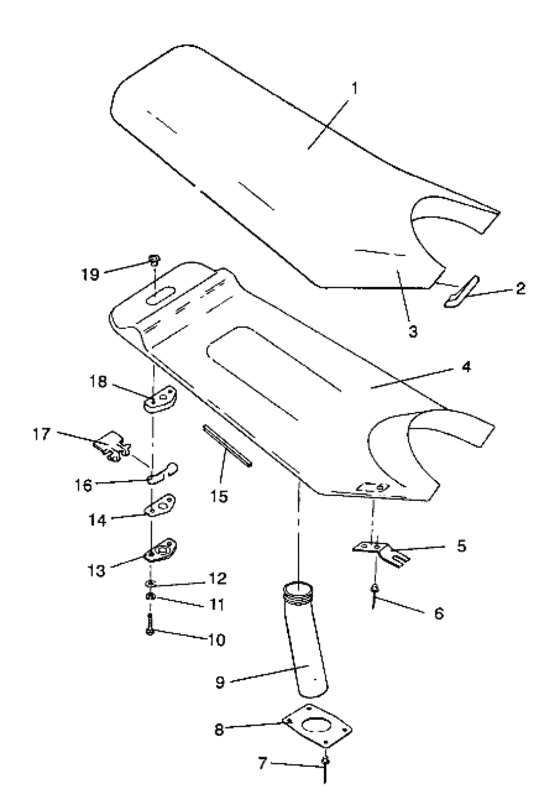

Seat assembly (SL 650 / B934058) Diagram Polaris SL 650
- Year
- 1993
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2681567
Seat asm, watercraft
Incl. 3-6,10-19; |
2681567 |
— | ||
|
2
|
2
5431613-157
Shield,rh seat,(b,blue)
B.BLUE; |
5431613-157 |
— | ||
|
2
|
2
5431612-157
Shield,lh seat,(b,blue)
B.BLUE; |
5431612-157 |
— | ||
|
3
|
3
2681573
Cover,seat,
PWC; |
2681573 |
— | ||
| replacement | |||||
|
3
|
3
2681726-157
Cover,seat,bon,blue
PWC; |
2681726-157 |
— | ||
|
4
|
4
5431375
Desc not available
No Longer Available; |
5431375 |
— | ||
|
5
|
5
5222694
Clip,seat retainer
|
5222694 |
— | ||
|
6
|
6
7661834 Rivet(50)50; |
7661834 |
US $3.75 |
||
|
7
|
7
7621479 Rivet(50)50; |
7621479 |
US $2.45 |
||
|
8
|
8
5211347
Plate, retainer
|
5211347 |
— | ||
|
9
|
9
5431369
Duct, air outlet
|
5431369 |
— | ||
|
10
|
10
7515123
Bolt, ss,
10; |
7515123 |
— | ||
|
11
|
11
7555838
Washer, lock, s,s,
10; |
7555838 |
— | ||
|
12
|
12
7555839
Washer, flat, s,s,(10)
10; |
7555839 |
— | ||
|
13
|
13
5431357
Plate,latch,bot,seat base
|
5431357 |
— | ||
|
14
|
14
5211314
Plate,seatbase latch
|
5211314 |
— | ||
|
15
|
15
5521288
Seal, seat
|
5521288 |
— | ||
| replacement | |||||
|
15
|
15
2200760
Kit,seat/seal asm,sl
|
2200760 |
— | ||
|
16
|
16
7042036
Spring,seatbase latch
|
7042036 |
— | ||
|
17
|
17
5431358
Handle, seat base latch
|
5431358 |
— | ||
|
18
|
18
5431359
Plate,top,seatbase latch
|
5431359 |
— | ||
|
19
|
19
7542137
Nut, tee
10; |
7542137 |
— | ||
