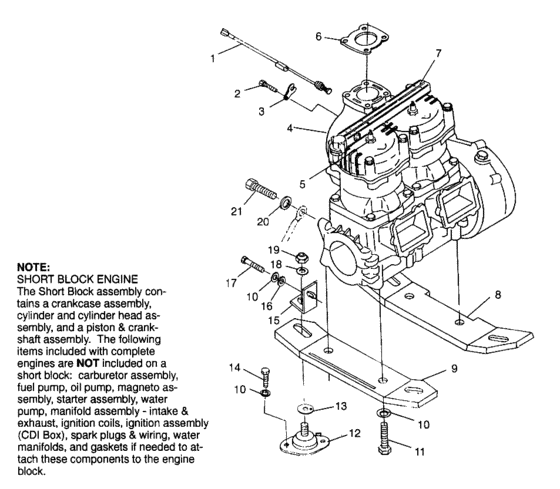

Engine mounting (SL 700 B964066 and Intl. SL 700 I964066) Diagram Polaris SL 700
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4110180
Switch asm,temp,
|
4110180 |
— | ||
|
2
|
2
7516603 Bolt(1)1; |
7516603 |
US $8.66 |
||
|
3
|
3
5240876
Clip,retain,temp,sw,
|
5240876 |
— | ||
|
4
|
4
2200681
Short block,twin,kit
No Longer Available; |
2200681 |
— | ||
|
6
|
6
5830051
Gasket,exh,pipe
|
5830051 |
— | ||
|
8
|
8
5630585
Plate,f.mount
|
5630585 |
— | ||
| replacement | |||||
|
8
|
8
5631128
New Genuine Part
|
5631128 |
— | ||
|
9
|
9
5630584
Plate,r.mount
|
5630584 |
— | ||
| replacement | |||||
|
9
|
9
5631129
New Genuine Part
|
5631129 |
— | ||
|
10
|
10
7555956
Washer,flat
|
7555956 |
— | ||
|
11
|
11
7512573
Bolt, s,s,(10)
10; |
7512573 |
— | ||
|
12
|
12
3110055
Mt,eng,anti-rotation
|
3110055 |
— | ||
| replacement | |||||
|
12
|
12
3021208
New Genuine Part
|
3021208 |
— | ||
|
13
|
13
5211727 Shim,eng,mt,(10)PWC; |
5211727 |
US $1.89 |
||
|
14
|
14
7515361
Bolt, s,s,
10; |
7515361 |
— | ||
|
15
|
15
5241546
Brkt,r.muffler
|
5241546 |
— | ||
| replacement | |||||
|
15
|
15
1060142
Brkt,r,muffler
|
1060142 |
— | ||
|
16
|
16
7555835
Washer, flat, s,s,,(10)
10; |
7555835 |
— | ||
|
17
|
17
7515357
Bolt, s,s,
10; |
7515357 |
— | ||
|
18
|
18
7555848 Washer, flat, s,s,10; |
7555848 |
US $6.69 |
||
|
19
|
19
7542725 Nut, nylok, s,s,10; |
7542725 |
US $5.64 |
||
| replacement | |||||
|
19
|
19
7547001
Nut
10; |
7547001 |
— | ||
|
20
|
20
7552610
Washer, lock, s,s,
10; |
7552610 |
— | ||
|
21
|
21
7516809
Bolt
10; |
7516809 |
— | ||
