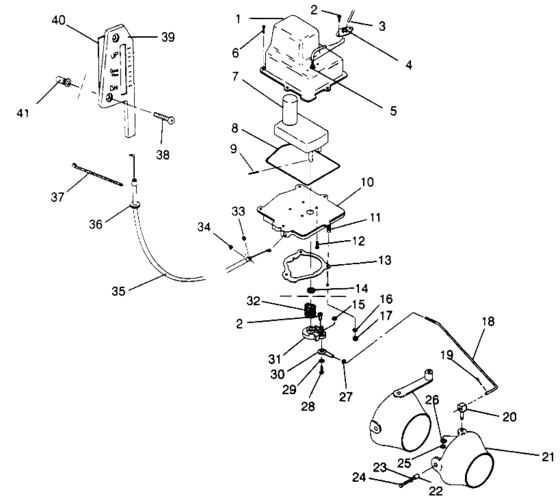

Trim package (SL 700 B964066 and Intl. SL 700 I964066) Diagram Polaris SL 700
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5431551 Cover,trim mtr, |
5431551 |
US $103.18 |
||
|
2
|
2
7511873
Screw
10; |
7511873 |
— | ||
|
3
|
3
2460481
Harness,trim
|
2460481 |
— | ||
|
4
|
4
5410771
Grommet,trim motor
|
5410771 |
— | ||
|
5
|
5
5410778
Grommet,trim indic,
|
5410778 |
— | ||
|
6
|
6
7512052
Screw
10; |
7512052 |
— | ||
|
7
|
7
4170004
Gear asm, motor
|
4170004 |
— | ||
|
8
|
8
5410756
O ring,mtr.cover
|
5410756 |
— | ||
|
9
|
9
7661417
Pin, drive
|
7661417 |
— | ||
| replacement | |||||
|
9
|
9
7661418
Pin,drive
|
7661418 |
— | ||
|
10
|
10
5630448
Base, motor
|
5630448 |
— | ||
|
11
|
11
5131050
Stud,s,s,
10; |
5131050 |
— | ||
|
12
|
12
7511872
Screw
10; |
7511872 |
— | ||
|
13
|
13
5810818
Gasket, motor base
|
5810818 |
— | ||
|
14
|
14
3610042
Seal, oil
|
3610042 |
— | ||
|
15
|
15
7541931 Nut, hex, s,s,10; |
7541931 |
US $3.43 |
||
|
16
|
16
7555839
Washer, flat, s,s,(10)
10; |
7555839 |
— | ||
|
17
|
17
7542133
Nut,nylok,s,s,
10; |
7542133 |
— | ||
|
18
|
18
5224550
Linkage,threaded
|
5224550 |
— | ||
|
19
|
19
7661010 Pin, cotter10; |
7661010 |
US $1.65 |
||
|
20
|
20
5130939
Swivel, rod end
|
5130939 |
— | ||
| replacement | |||||
|
20
|
20
5131463
Swivel,rod end
|
5131463 |
— | ||
|
21
|
21
5431765
Nozzle,trim
|
5431765 |
— | ||
|
22
|
22
5130938
Collar
|
5130938 |
— | ||
|
23
|
23
7555874 Washer,flat,s,s,(10)10; |
7555874 |
US $3.75 |
||
|
24
|
24
7515361
Bolt, s,s,
10; |
7515361 |
— | ||
|
25
|
25
7710427 Ring-e,ret,10; |
7710427 |
US $3.75 |
||
|
26
|
26
7555866
Washer
10; |
7555866 |
— | ||
|
27
|
27
1860102
Nut (10)
10; |
1860102 |
— | ||
|
28
|
28
7512041 Bolt, s,s,10; |
7512041 |
US $3.15 |
||
|
29
|
29
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
30
|
30
7060154
Rod end, s,s,
|
7060154 |
— | ||
|
31
|
31
5431550
Lever, trim
|
5431550 |
— | ||
|
32
|
32
7041469
Spring,trim,hvy,
|
7041469 |
— | ||
|
33
|
33
7710429
Ring,retaining(10)
10; |
7710429 |
— | ||
|
34
|
34
7710428
Ring,retaining,ext,(10)
10; |
7710428 |
— | ||
|
35
|
35
7080497
Cable,trim indicator
|
7080497 |
— | ||
|
36
|
36
5410778
Grommet,trim indic,
|
5410778 |
— | ||
|
37
|
37
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
38
|
38
7512045 Bolt, ss,10; |
7512045 |
US $2.45 |
||
|
39
|
39
5431564-133
Trim,indic,,white
|
5431564-133 |
— | ||
|
40
|
40
7073866
Decal, indicator
|
7073866 |
— | ||
|
41
|
41
7541932
Insert, brass
10; |
7541932 |
— | ||
