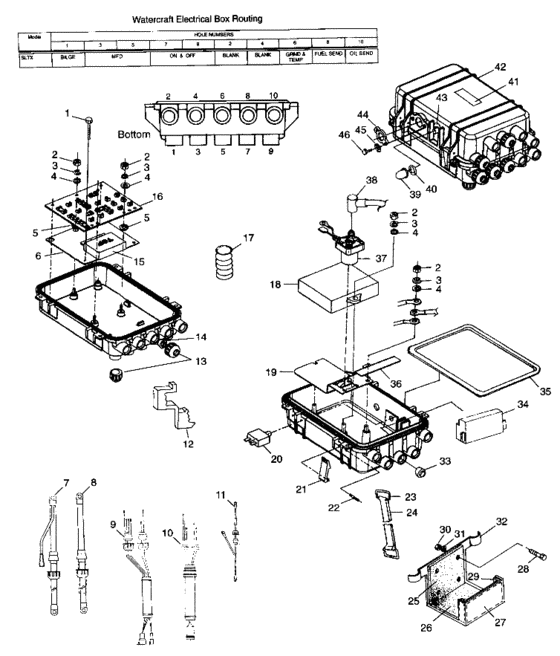

Electrical box (I984590) Diagram Polaris SLTX
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512042 Bolt, s,s,10; |
7512042 |
US $3.26 |
||
|
2
|
2
7547036
Nut, ss,
10; |
7547036 |
— | ||
|
3
|
3
7552615 Washer, lock10; |
7552615 |
US $2.45 |
||
|
4
|
4
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
5
|
5
7555870
Washer,rubber(10)
10; |
7555870 |
— | ||
|
6
|
6
5211761
Plate,btm,e-box
|
5211761 |
— | ||
|
12
|
12
7080471 Clip, ignition cable10; |
7080471 |
US $4.43 |
||
|
13
|
13
5432502
Cap,grommet
|
5432502 |
— | ||
|
14
|
14
5411213 Grommet,1 hole,large |
5411213 |
US $2.45 |
||
|
15
|
15
4060171
Reg./rect/cutoff,lr23
|
4060171 |
— | ||
| replacement | |||||
|
15
|
15
4010302
Regulator-rect/cutoff-lr31-2
|
4010302 |
— | ||
|
16
|
16
2434014
Term,board asm,mfd
|
2434014 |
— | ||
|
17
|
17
4010051-05
Conduit,convol.
|
4010051-05 |
— | ||
| replacement | |||||
|
17
|
17
4010051-30 Conduit,convoluted(30 cm) |
4010051-30 |
US $6.11 |
||
|
19
|
19
5211760
Plate,top,e-box
|
5211760 |
— | ||
|
20
|
20
2434011
Ckt,breaker,15a,(water,)
WATER.; |
2434011 |
— | ||
|
21
|
21
5432503
Latch
|
5432503 |
— | ||
| replacement | |||||
|
21
|
21
2632136
Electrical box,plastic,asm,
|
2632136 |
— | ||
|
22
|
22
5333544 Pin,latch |
5333544 |
US $13.14 |
||
|
23
|
23
5224472
Hook,'d',sst/ss,(10)
10; |
5224472 |
— | ||
|
24
|
24
5430621 Strap |
5430621 |
US $15.26 |
||
|
33
|
33
5411235
Grommet
|
5411235 |
— | ||
|
35
|
35
5432569
Seal
|
5432569 |
— | ||
| replacement | |||||
|
35
|
35
2632136
Electrical box,plastic,asm,
|
2632136 |
— | ||
|
36
|
36
5241999
Brkt,coil/solenoid
|
5241999 |
— | ||
| replacement | |||||
|
36
|
36
5243538
Brkt,coil/solenoid,,078 thk
|
5243538 |
— | ||
|
38
|
38
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
39
|
39
7080461
Boot,threaded
|
7080461 |
— | ||
|
40
|
40
5411491
O-ring
|
5411491 |
— | ||
|
41
|
41
7073713
Decal,warn,hi.volt.
|
7073713 |
— | ||
|
42
|
42
2620120
Boxtop asm,elec,plastic
Incl. 14,21,22,35; |
2620120 |
— | ||
| replacement | |||||
|
42
|
42
2632136
Electrical box,plastic,asm,
Incl. 14,21,22,35; |
2632136 |
— | ||
|
43
|
43
7073734
Decal, "electric box reset"
|
7073734 |
— | ||
|
44
|
44
5432574
Plate,stator,1 hole
|
5432574 |
— | ||
|
45
|
45
7555836 Washer10; |
7555836 |
US $2.28 |
||
|
46
|
46
7515113 Bolt,ss10; |
7515113 |
US $3.75 |
||
