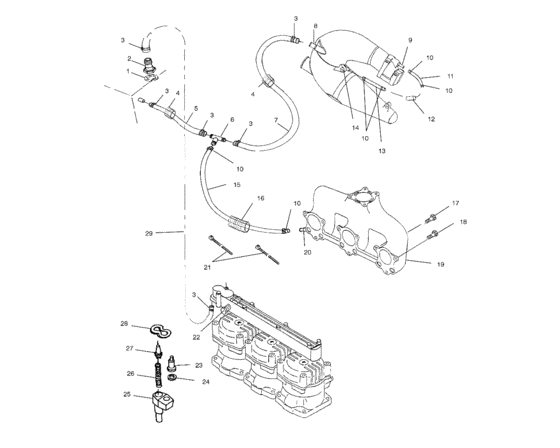

Cooling system (W014699D) Diagram Polaris SLX
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811317
Gasket
|
5811317 |
— | ||
|
2
|
2
5431444-133
Fitting-thru hull,white
|
5431444-133 |
— | ||
|
3
|
3
7080475
Clamp,hose,ss
10; |
7080475 |
— | ||
|
4
|
4
5521287-20
Conduit,flex,1,250id
|
5521287-20 |
— | ||
|
5
|
5
5411335
Hose,water inlet
|
5411335 |
— | ||
|
6
|
6
5431784
Fitting,tee
|
5431784 |
— | ||
|
7
|
7
5411793
Hose, water in, exhaust pipe
|
5411793 |
— | ||
|
10
|
10
7080476 Clamp, hose, s,s,10; |
7080476 |
US $9.10 |
||
|
11
|
11
5412043
Hose-4.0" .31id
|
5412043 |
— | ||
|
12
|
12
7052303
Valve-check,3/8x3/8 3.5psi
|
7052303 |
— | ||
|
13
|
13
5412042
Hose-16,5"w/90deg,31id
|
5412042 |
— | ||
|
15
|
15
8450054-50
Hose,water,50cm
|
8450054-50 |
— | ||
| replacement | |||||
|
15
|
15
8450054-100
Hose,water
|
8450054-100 |
— | ||
|
16
|
16
5521398-42
Conduit, flex
.75"ID; |
5521398-42 |
— | ||
| replacement | |||||
|
16
|
16
5521398-96 Conduit,flex(,75"id).75"ID; |
5521398-96 |
US $7.09 |
||
|
17
|
17
7516727
Bolt
|
7516727 |
— | ||
|
18
|
18
7516725
Bolt, s,s,(10)
10; |
7516725 |
— | ||
|
19
|
19
1260809
Manifold asm,exh,
TRIPLE; |
1260809 |
— | ||
|
20
|
20
5020746 Fitting,drain |
5020746 |
US $15.75 |
||
|
21
|
21
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
22
|
22
7051527
Plug,pipe
10; |
7051527 |
— | ||
|
23
|
23
7051008
Thermostat, (143 f,)
143 F.; |
7051008 |
— | ||
|
24
|
24
5412014
Gasket-thermostat,60d
|
5412014 |
— | ||
|
25
|
25
5631136
Cover-thermostat,hf
|
5631136 |
— | ||
|
26
|
26
7041310
Spring, compression
|
7041310 |
— | ||
|
27
|
27
5433823
Valve-pop off,pwc,hf
|
5433823 |
— | ||
|
28
|
28
5410860
Seal,o-ring/thermo/fitting
|
5410860 |
— | ||
|
29
|
29
5411310
Hose, water outlet
|
5411310 |
— | ||
