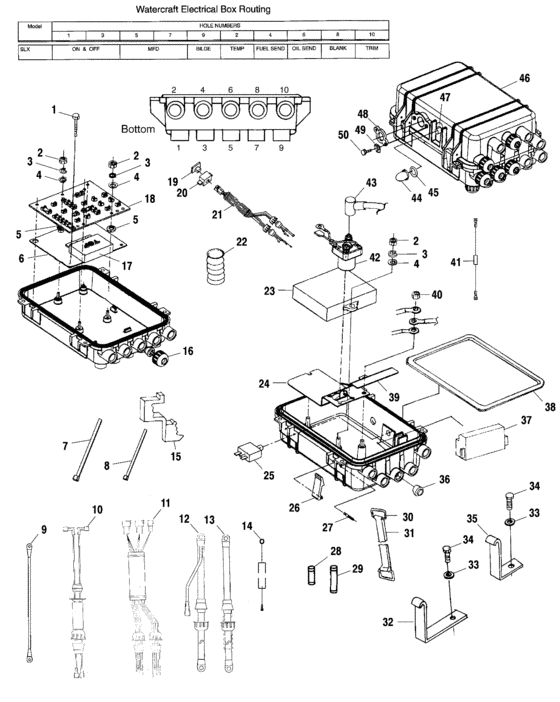

Electrical box (W014699D) Diagram Polaris SLX
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512072
Screw,s,s,(10)
10; |
7512072 |
— | ||
|
2
|
2
7547036
Nut, ss,
10; |
7547036 |
— | ||
|
3
|
3
7552615 Washer, lock10; |
7552615 |
US $2.45 |
||
|
4
|
4
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
5
|
5
7555870
Washer,rubber(10)
10; |
7555870 |
— | ||
|
6
|
6
5211761
Plate,btm,e-box
|
5211761 |
— | ||
|
7
|
7
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
8
|
8
7080483
Cable tie,4 inch
10; |
7080483 |
— | ||
|
9
|
9
2460831
Harness,wire,grnd,jumper
|
2460831 |
— | ||
|
10
|
10
2460635
Harness,trim,2hole grommet
|
2460635 |
— | ||
|
11
|
11
2460675
Harness,60 in,10 wire
|
2460675 |
— | ||
|
12
|
12
4010122
Cable,red,batt/sol.,cap
|
4010122 |
— | ||
|
13
|
13
4010123
Cable,red,sol./strtr,cap
|
4010123 |
— | ||
|
14
|
14
2460931
Harness-diode
|
2460931 |
— | ||
|
15
|
15
7080471 Clip, ignition cable10; |
7080471 |
US $4.43 |
||
|
16
|
16
5432502
Cap,grommet
|
5432502 |
— | ||
|
17
|
17
4010302
Regulator-rect/cutoff-lr31-2
|
4010302 |
— | ||
|
18
|
18
2434014
Term,board asm,mfd
|
2434014 |
— | ||
|
19
|
19
4010245 Deutsch-12 pin wedgelock |
4010245 |
US $2.45 |
||
|
20
|
20
4010243
Connect-deutsch,12
|
4010243 |
— | ||
|
21
|
21
2460598
Harness,wire,mfd,
|
2460598 |
— | ||
|
22
|
22
4010051-05
Conduit,convol.
|
4010051-05 |
— | ||
| replacement | |||||
|
22
|
22
4010051-30 Conduit,convoluted(30 cm) |
4010051-30 |
US $6.11 |
||
|
24
|
24
5211760
Plate,top,e-box
|
5211760 |
— | ||
|
25
|
25
2434011
Ckt,breaker,15a,(water,)
WATER.; |
2434011 |
— | ||
|
26
|
26
5432503
Latch
|
5432503 |
— | ||
| replacement | |||||
|
26
|
26
2632136
Electrical box,plastic,asm,
|
2632136 |
— | ||
|
27
|
27
5333544 Pin,latch |
5333544 |
US $13.14 |
||
|
28
|
28
4060111
Fuse,1/4 amp (10)
10; |
4060111 |
— | ||
|
29
|
29
4060161
Fuse,3amp,agw
No Longer Available; |
4060161 |
— | ||
|
30
|
30
5224472
Hook,'d',sst/ss,(10)
10; |
5224472 |
— | ||
|
31
|
31
5410853
Strap,rubber
|
5410853 |
— | ||
|
32
|
32
5242994
Brkt,batt,strap,in-bd
|
5242994 |
— | ||
|
33
|
33
7552613
Washer, lock
10; |
7552613 |
— | ||
|
34
|
34
7512043
Bolt(10)
10; |
7512043 |
— | ||
|
35
|
35
5242995
Brkt,batt,strap,out-bd
|
5242995 |
— | ||
|
36
|
36
5411235
Grommet
|
5411235 |
— | ||
|
38
|
38
5432569
Seal
|
5432569 |
— | ||
| replacement | |||||
|
38
|
38
2632136
Electrical box,plastic,asm,
|
2632136 |
— | ||
|
39
|
39
5243538
Brkt,coil/solenoid,,078 thk
|
5243538 |
— | ||
|
40
|
40
7547061
Nut,nylok,ss
|
7547061 |
— | ||
|
41
|
41
2460928 Harness-jumper |
2460928 |
US $17.24 |
||
|
43
|
43
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
44
|
44
7080461
Boot,threaded
|
7080461 |
— | ||
|
45
|
45
5411491
O-ring
|
5411491 |
— | ||
|
46
|
46
2632136
Electrical box,plastic,asm,
Incl. 26,27,38; |
2632136 |
— | ||
|
47
|
47
7077691
Decal-"reset elec system"
|
7077691 |
— | ||
|
48
|
48
5432574
Plate,stator,1 hole
|
5432574 |
— | ||
|
49
|
49
7555836 Washer10; |
7555836 |
US $2.28 |
||
|
50
|
50
7515113 Bolt,ss10; |
7515113 |
US $3.75 |
||
