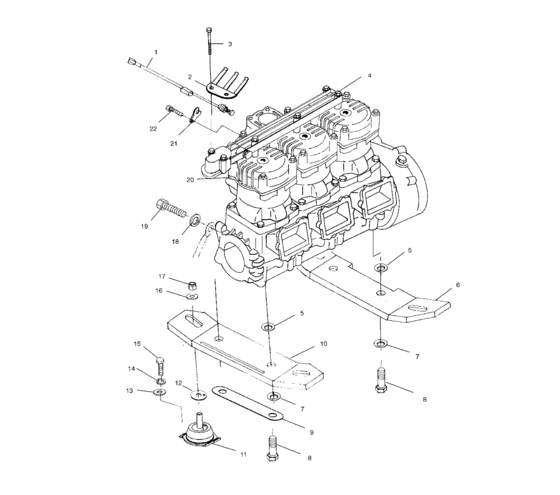

Engine mounting (W014699D) Diagram Polaris SLX
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410188
Switch,temp,160 w/grommet
|
2410188 |
— | ||
|
2
|
2
5242476
Ground,sparkplug,3cyl
|
5242476 |
— | ||
|
3
|
3
7515149
Screw,shoulder,s,s,
10; |
7515149 |
— | ||
|
5
|
5
7556184
Washer-flat,,44x1,25x,10,ss
|
7556184 |
— | ||
|
6
|
6
5631166
Plate-front mount w/washer
|
5631166 |
— | ||
|
7
|
7
7556170
Washer-flat,,44x,94x,06,18-8ss
|
7556170 |
— | ||
|
8
|
8
7517330
Screw, ss,
|
7517330 |
— | ||
|
9
|
9
5245460
Lock-mount plate
|
5245460 |
— | ||
|
10
|
10
5631167
Plate-rear mount w/washer
|
5631167 |
— | ||
|
11
|
11
3021254
Mount-engine,lord,bent,50-520
|
3021254 |
— | ||
|
12
|
12
5211727 Shim,eng,mt,(10)PWC; |
5211727 |
US $1.89 |
||
|
13
|
13
7555866
Washer
10; |
7555866 |
— | ||
|
14
|
14
7552610
Washer, lock, s,s,
10; |
7552610 |
— | ||
|
15
|
15
7517627
Screw
10; |
7517627 |
— | ||
|
16
|
16
7555848 Washer, flat, s,s,10; |
7555848 |
US $6.69 |
||
|
17
|
17
7542725 Nut, nylok, s,s,10; |
7542725 |
US $5.64 |
||
| replacement | |||||
|
17
|
17
7547001
Nut
10; |
7547001 |
— | ||
|
18
|
18
7556055
Washer,lock,ss, (10)
|
7556055 |
— | ||
|
19
|
19
7517497 Bolt,ss, |
7517497 |
US $5.64 |
||
|
20
|
20
2201704
Kit, short block, 1200 triple
|
2201704 |
— | ||
|
21
|
21
5240876
Clip,retain,temp,sw,
|
5240876 |
— | ||
|
22
|
22
7516603 Bolt(1)1; |
7516603 |
US $8.66 |
||
