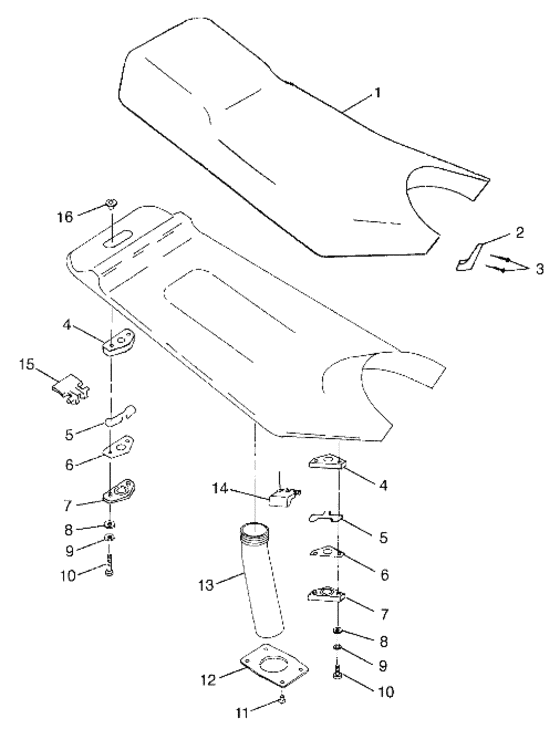

Seat (B974978) Diagram Polaris SLX PRO 785
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2682188
Cover,seat,slx 785
|
2682188 |
— | ||
|
1
|
1
2682207
Seat asm,slx 785
Incl. 1,10-16; |
2682207 |
— | ||
|
2
|
2
5432124-136
Shield,lh seat,p,red
|
5432124-136 |
— | ||
|
2
|
2
5432125-136
Shield,rh seat,p,red
|
5432125-136 |
— | ||
|
3
|
3
7512089
Screw
10; |
7512089 |
— | ||
|
4
|
4
5431359
Plate,top,seatbase latch
|
5431359 |
— | ||
|
5
|
5
7042036
Spring,seatbase latch
|
7042036 |
— | ||
|
6
|
6
5211314
Plate,seatbase latch
|
5211314 |
— | ||
|
7
|
7
5431357
Plate,latch,bot,seat base
|
5431357 |
— | ||
|
8
|
8
7555839
Washer, flat, s,s,(10)
10; |
7555839 |
— | ||
|
9
|
9
7555838
Washer, lock, s,s,
10; |
7555838 |
— | ||
|
10
|
10
7515123
Bolt, ss,
10; |
7515123 |
— | ||
|
11
|
11
7621834
Desc not_available
|
7621834 |
— | ||
|
12
|
12
5211347
Plate, retainer
|
5211347 |
— | ||
|
13
|
13
5431369
Duct, air outlet
|
5431369 |
— | ||
|
14
|
14
5432622
Handle,seatbase,side
|
5432622 |
— | ||
|
15
|
15
5431358
Handle, seat base latch
|
5431358 |
— | ||
|
16
|
16
7542137
Nut, tee
10; |
7542137 |
— |
