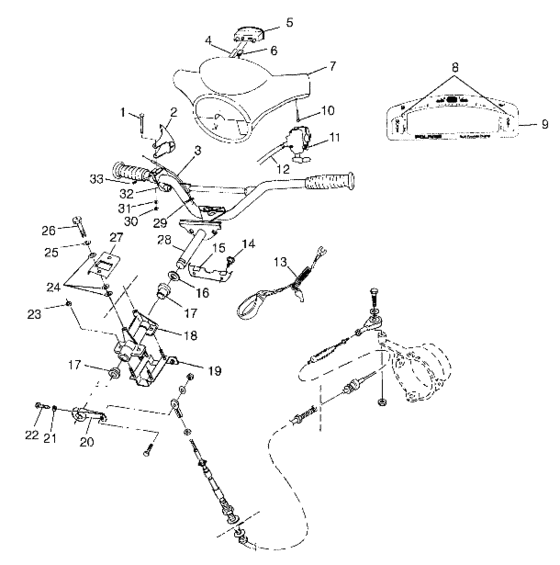

Steering (B974978) Diagram Polaris SLX PRO 785
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661628
Pin, retaining
|
7661628 |
— | ||
|
2
|
2
5432372
Lever,throttle
|
5432372 |
— | ||
|
3
|
3
7080504
Cable,throttle
|
7080504 |
— | ||
|
4
|
4
8450070-235 Pitot line,90deg formed,235cm, |
8450070-235 |
US $30.08 |
||
| replacement | |||||
|
4
|
4
8450070-277
New Genuine Part
|
8450070-277 |
— | ||
|
5
|
5
3280278
Gauge,mfd,8pin,3rpm
|
3280278 |
— | ||
|
6
|
6
2460598
Harness,wire,mfd,
|
2460598 |
— | ||
|
7
|
7
5432510-070
Pad,h`bar,mfd,gl.blk.
|
5432510-070 |
— | ||
|
8
|
8
2200826
Kit,mfd.button
|
2200826 |
— | ||
| replacement | |||||
|
8
|
8
2201263
Kit,mfd button,95-98,(pwc)
|
2201263 |
— | ||
|
9
|
9
3280266
Bezel,mfd,w/overlay
|
3280266 |
— | ||
|
10
|
10
7512047
Screw, ss,
10; |
7512047 |
— | ||
|
11
|
11
4110221
Switch
|
4110221 |
— | ||
|
12
|
12
7080668 Cable,choke,67,92 |
7080668 |
US $43.72 |
||
|
13
|
13
7080675
Lanyard,w/whistle
|
7080675 |
— | ||
|
14
|
14
7515387
Bolt,shoulder(10)
10; |
7515387 |
— | ||
|
15
|
15
5222677 Stop, steering |
5222677 |
US $11.11 |
||
|
16
|
16
7555875
Bush
10; |
7555875 |
— | ||
|
17
|
17
5431382 Bushing,strg,support |
5431382 |
US $50.42 |
||
|
18
|
18
5131509
Hub,sprt.strg/anode.
|
5131509 |
— | ||
|
19
|
19
1060101
Plate, bolt
|
1060101 |
— | ||
|
20
|
20
5131441
Arm,strng,,anodized
|
5131441 |
— | ||
|
21
|
21
7552610
Washer, lock, s,s,
10; |
7552610 |
— | ||
|
22
|
22
7515375
Bolt, s,s,
10; |
7515375 |
— | ||
|
23
|
23
7542335
Nut, hex, s,s,(10)
10; |
7542335 |
— | ||
|
24
|
24
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
25
|
25
7552615 Washer, lock10; |
7552615 |
US $2.45 |
||
|
26
|
26
7512051
Screw, s,s,
10; |
7512051 |
— | ||
|
27
|
27
5211860
Plate,latch,slt
|
5211860 |
— | ||
| replacement | |||||
|
27
|
27
5243533
Plate-receiver,latch,slt-pro
|
5243533 |
— | ||
|
28
|
28
2201087
Handgrip asm,w/thrtlbk,molded
No Longer Available; |
2201087 |
— | ||
|
29
|
29
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
30
|
30
7710426
Ring,retaining,ext,,s,s,
10; |
7710426 |
— | ||
|
31
|
31
7555840
Washer, flat, s,s,
10; |
7555840 |
— | ||
|
32
|
32
5432339
Block, throttle
|
5432339 |
— | ||
|
33
|
33
7515115
Screw, set, s,s,
10; |
7515115 |
— | ||
