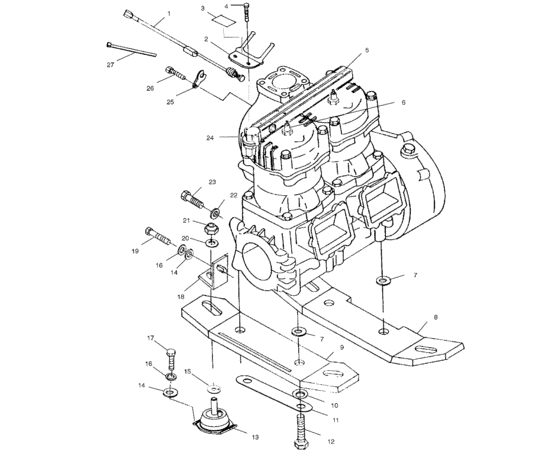

Engine mounting (W035197DA/W035197IA) Diagram Polaris VIRAGE
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410187
Switch,temp,w/connector
|
2410187 |
— | ||
|
2
|
2
5242488 Ground,sparkplug,2cyl |
5242488 |
US $10.61 |
||
|
3
|
3
7077026 Decal,sparkplug rec, |
7077026 |
US $3.64 |
||
|
4
|
4
7515149
Screw,shoulder,s,s,
|
7515149 |
— | ||
|
7
|
7
7556184
Washer-flat,,44x1,25x,10,ss
|
7556184 |
— | ||
|
8
|
8
5631166-329
Plate-front mount w/washer,blk
|
5631166-329 |
— | ||
|
9
|
9
5631167-329
Plate-rear mount w/washer,blk
|
5631167-329 |
— | ||
|
10
|
10
7556170
Washer-flat,,44x,94x,06,18-8ss
|
7556170 |
— | ||
|
11
|
11
5245460
Lock-mount plate
|
5245460 |
— | ||
|
12
|
12
7517330
Screw, ss,
|
7517330 |
— | ||
|
13
|
13
3021254
Mount-engine,lord,bent,50-520
|
3021254 |
— | ||
|
14
|
14
7555835
Washer, flat, s,s,,(10)
|
7555835 |
— | ||
|
15
|
15
5211727 Shim,eng,mt,(10) |
5211727 |
US $1.89 |
||
|
16
|
16
7552610
Washer, lock, s,s,
|
7552610 |
— | ||
|
17
|
17
7517627
Screw
|
7517627 |
— | ||
|
18
|
18
1060142
Brkt,r,muffler
|
1060142 |
— | ||
|
19
|
19
7515357
Bolt, s,s,
|
7515357 |
— | ||
|
20
|
20
7555848 Washer, flat, s,s, |
7555848 |
US $6.69 |
||
|
21
|
21
7542725 Nut, nylok, s,s, |
7542725 |
US $5.64 |
||
| replacement | |||||
|
21
|
21
7547001
Nut
|
7547001 |
— | ||
|
22
|
22
7556055
Washer,lock,ss, (10)
|
7556055 |
— | ||
|
23
|
23
7517497 Bolt,ss, |
7517497 |
US $5.64 |
||
|
24
|
24
2202071
Kit, short block
NOTE: The Short Block assembly contains a crankcase assembly, cylinder, and cylinder head assembly.; |
2202071 |
— | ||
|
25
|
25
5240876
Clip,retain,temp,sw,
|
5240876 |
— | ||
|
26
|
26
7516603 Bolt(1) |
7516603 |
US $8.66 |
||
|
27
|
27
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
