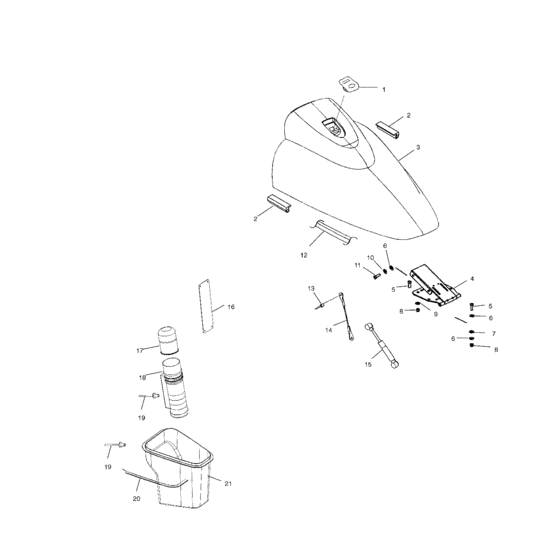

Front storage compartment (W035197DA/W035197IA) Diagram Polaris VIRAGE
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2632297
Asm-latch,hood
|
2632297 |
— | ||
|
2
|
2
5521617
Bumper-door/deck
|
5521617 |
— | ||
|
3
|
3
5433999-442
Door-compartment,h red clr met
|
5433999-442 |
— | ||
|
4
|
4
1013943 Asm-hinge,comp door |
1013943 |
US $120.05 |
||
|
5
|
5
7517644 Screw |
7517644 |
US $3.94 |
||
|
6
|
6
7555839
Washer, flat, s,s,(10)
|
7555839 |
— | ||
|
7
|
7
5811440
Washer
|
5811440 |
— | ||
|
8
|
8
7546704
Nut, nylok, ss,
|
7546704 |
— | ||
|
9
|
9
7555890
Washer
|
7555890 |
— | ||
| replacement | |||||
|
9
|
9
7555891 Washer,s,s,(10) |
7555891 |
US $1.89 |
||
|
10
|
10
7552613
Washer, lock
|
7552613 |
— | ||
|
11
|
11
7516805
Screw, s,s,(10)
|
7516805 |
— | ||
|
12
|
12
5521565
Seal,door compartment
|
5521565 |
— | ||
|
13
|
13
7621235 Rivet,ss (50) |
7621235 |
US $1.89 |
||
|
14
|
14
7080853
Cable,limiter,hinge
|
7080853 |
— | ||
|
15
|
15
7042121
Asm., spring, gas
|
7042121 |
— | ||
|
16
|
16
5211548
Plate, fire extinguisher
|
5211548 |
— | ||
| replacement | |||||
|
16
|
16
5244773
New Genuine Part
|
5244773 |
— | ||
|
17
|
17
5431842
Cover, fire extinguisher
|
5431842 |
— | ||
| replacement | |||||
|
17
|
17
1060114
Asm,,container,fire extinguishe
|
1060114 |
— | ||
|
18
|
18
1060114
Asm,,container,fire extinguishe
Incl. 17 and Container; |
1060114 |
— | ||
|
18
|
18
5431841
Container, fire extinguisher
|
5431841 |
— | ||
| replacement | |||||
|
18
|
18
1060114
Asm,,container,fire extinguishe
|
1060114 |
— | ||
|
19
|
19
7621480
Rivet(50)
|
7621480 |
— | ||
|
20
|
20
5411865
Seal,bucket,front
|
5411865 |
— | ||
|
21
|
21
5433464
Bucket-storage,front
|
5433464 |
— | ||
