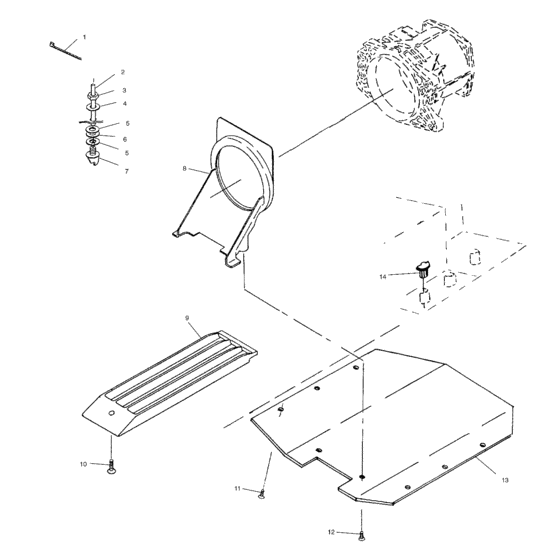

Water inlet (W035197DA/W035197IA) Diagram Polaris VIRAGE
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080483
Cable tie,4 inch
|
7080483 |
— | ||
|
3
|
3
7547003 Nut |
7547003 |
US $1.89 |
||
|
4
|
4
7555873
Washer,flat,nylon(10)
|
7555873 |
— | ||
|
5
|
5
5810879 Gasket, pitot |
5810879 |
US $1.89 |
||
|
6
|
6
7555848 Washer, flat, s,s, |
7555848 |
US $6.69 |
||
|
7
|
7
5431634 Fitting,pilot,molded |
5431634 |
US $15.02 |
||
|
8
|
8
5133650
Scoop-inlet,2
|
5133650 |
— | ||
|
9
|
9
5630542-067
Grate,inlet,cast,blk,
|
5630542-067 |
— | ||
|
10
|
10
7515155
Bolt, s,s,
|
7515155 |
— | ||
|
11
|
11
7517267 Screw (10) |
7517267 |
US $1.89 |
||
|
12
|
12
7515126 Bolt, ss(10) |
7515126 |
US $1.89 |
||
|
13
|
13
5631080-329
Plate-ride,hp,blk
|
5631080-329 |
— | ||
|
14
|
14
7010083
Insert,sponson / rideplate
|
7010083 |
— |
