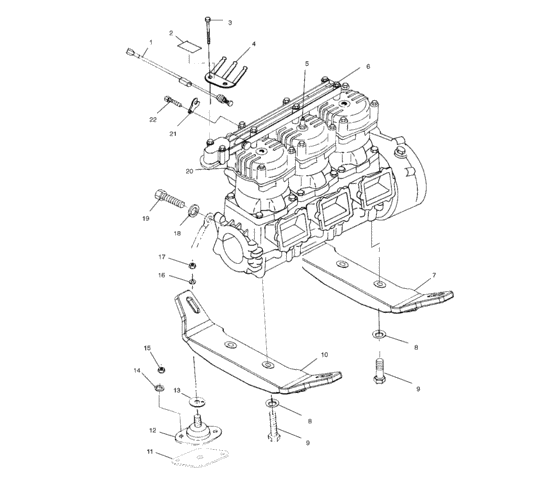

Engine mounting (W005199I) Diagram Polaris VIRAGE TX
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410187
Switch,temp,w/connector
|
2410187 |
— | ||
|
2
|
2
7077026 Decal,sparkplug rec, |
7077026 |
US $3.64 |
||
|
3
|
3
7515149
Screw,shoulder,s,s,
10; |
7515149 |
— | ||
|
4
|
4
5242476
Ground,sparkplug,3cyl
|
5242476 |
— | ||
|
7
|
7
5630585
Plate,f.mount
|
5630585 |
— | ||
| replacement | |||||
|
7
|
7
5631128
New Genuine Part
|
5631128 |
— | ||
|
8
|
8
7552609
Washer,lock,s,s,
|
7552609 |
— | ||
|
9
|
9
7517330
Screw, ss,
|
7517330 |
— | ||
|
10
|
10
5630584
Plate,r.mount
|
5630584 |
— | ||
| replacement | |||||
|
10
|
10
5631129
New Genuine Part
|
5631129 |
— | ||
|
11
|
11
5244508
Plate,repair,gen,frt mnt
|
5244508 |
— | ||
|
12
|
12
3021103
Mount-engine,pwc
|
3021103 |
— | ||
| replacement | |||||
|
12
|
12
3021208
New Genuine Part
|
3021208 |
— | ||
|
13
|
13
5211727 Shim,eng,mt,(10)PWC; |
5211727 |
US $1.89 |
||
|
14
|
14
7552610
Washer, lock, s,s,
10; |
7552610 |
— | ||
|
15
|
15
7517627
Screw
10; |
7517627 |
— | ||
|
16
|
16
7555848 Washer, flat, s,s,10; |
7555848 |
US $6.69 |
||
|
17
|
17
7542725 Nut, nylok, s,s,10; |
7542725 |
US $5.64 |
||
| replacement | |||||
|
17
|
17
7547001
Nut
10; |
7547001 |
— | ||
|
18
|
18
7556055
Washer,lock,ss, (10)
|
7556055 |
— | ||
|
19
|
19
7517497 Bolt,ss, |
7517497 |
US $5.64 |
||
|
20
|
20
2201704
Kit, short block, 1200 triple
See Footnote; |
2201704 |
— | ||
|
21
|
21
5240876
Clip,retain,temp,sw,
|
5240876 |
— | ||
|
22
|
22
7516603 Bolt(1)1; |
7516603 |
US $8.66 |
||
