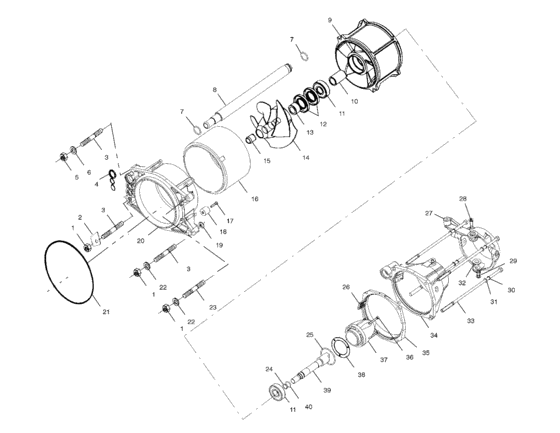

Propulsion (W005199D) Diagram Polaris VIRAGE TX
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542455 Nut,hex,s,s,(10)10; |
7542455 |
US $1.89 |
||
|
2
|
2
5244556
Brkt,steering cable nut
|
5244556 |
— | ||
|
3
|
3
5132355
Stud,mount,pump,1,38 int,
|
5132355 |
— | ||
|
4
|
4
5411107
Seal,water pipe
|
5411107 |
— | ||
|
5
|
5
7542454 Nut, hex, s,s,,10; |
7542454 |
US $1.89 |
||
|
6
|
6
7552607
Washer, lock, s,s,
10; |
7552607 |
— | ||
|
7
|
7
5410735 O ring,(10)10; |
5410735 |
US $1.89 |
||
|
8
|
8
5432269
Pipe,water,eng,(x-pump)
X-PUMP; |
5432269 |
— | ||
|
9
|
9
5132088
Stator,ss,asia trend
|
5132088 |
— | ||
|
10
|
10
5010294
Spacer
|
5010294 |
— | ||
|
11
|
11
3514008
Bearing
|
3514008 |
— | ||
|
12
|
12
3610043
Seal,brg,stator
|
3610043 |
— | ||
|
13
|
13
5010295
Spacer, impeller
|
5010295 |
— | ||
|
14
|
14
5132202
Impeller-7,0,,550 clearance
|
5132202 |
— | ||
|
15
|
15
5411644
Seal
|
5411644 |
— | ||
|
16
|
16
5131196
Extension, pump
|
5131196 |
— | ||
|
17
|
17
7522019 Screw(10)10; |
7522019 |
US $1.89 |
||
|
18
|
18
5630598
Anode, zinc
|
5630598 |
— | ||
| replacement | |||||
|
18
|
18
2200745
Kit,anode,(94-95)
|
2200745 |
— | ||
|
19
|
19
7555941
Washer,pumpstud,seal
|
7555941 |
— | ||
|
20
|
20
5131573
Hsg,pump,w/o ring,int stud
|
5131573 |
— | ||
|
21
|
21
5410652
O-ring,pump hsg/hull
|
5410652 |
— | ||
|
22
|
22
7555966 Washer |
7555966 |
US $3.26 |
||
|
23
|
23
5132111
Stud,mount,pump,long int,
|
5132111 |
— | ||
|
24
|
24
5410817 O-ring(10)10; |
5410817 |
US $1.89 |
||
|
25
|
25
5410819 O-ring(10)10; |
5410819 |
US $1.89 |
||
|
26
|
26
5431523
Screen,eng,inlet
|
5431523 |
— | ||
|
27
|
27
5130999
Nozzle,steering
|
5130999 |
— | ||
|
28
|
28
7515366
Bolt, s,s,
10; |
7515366 |
— | ||
|
29
|
29
5130938
Collar
|
5130938 |
— | ||
|
30
|
30
7552610
Washer, lock, s,s,
10; |
7552610 |
— | ||
|
31
|
31
7555835
Washer, flat, s,s,,(10)
10; |
7555835 |
— | ||
|
32
|
32
5431518 Brg,strg,nozzle10; |
5431518 |
US $314.88 |
||
|
33
|
33
7515389
Bolt
|
7515389 |
— | ||
|
34
|
34
5131569
Nozzle,stat,,0x4 wedge
|
5131569 |
— | ||
|
35
|
35
5432841
Wedge,pump,0x4,molded
|
5432841 |
— | ||
|
36
|
36
7512064
Screw
10; |
7512064 |
— | ||
|
37
|
37
5431519
Cone, pump
|
5431519 |
— | ||
|
38
|
38
5811984
Seal,tailcone
|
5811984 |
— | ||
|
39
|
39
5020697
Shaft, stub
|
5020697 |
— | ||
| replacement | |||||
|
39
|
39
5132674
Shaft-stub
|
5132674 |
— | ||
|
40
|
40
5410818 O-ring(10)10; |
5410818 |
US $1.89 |
||
