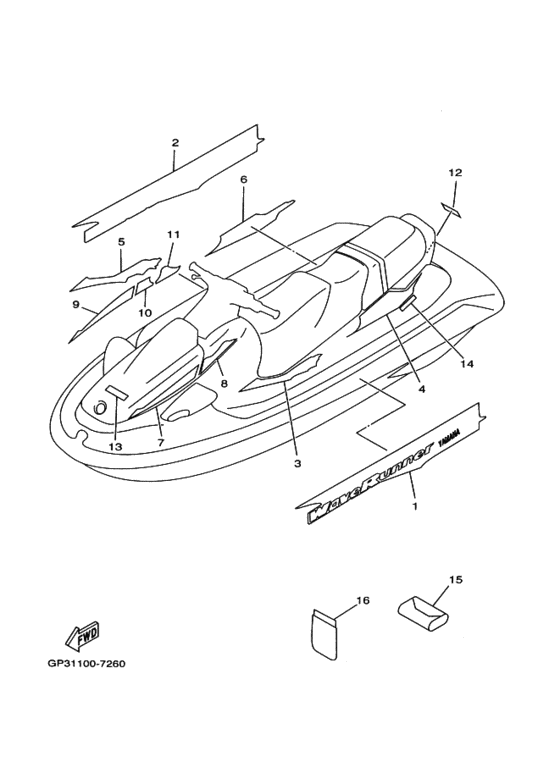

Graphic. tool Diagram Yamaha 1100VN
- Model code
- GR12
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GR1-6417B-10-00
Graphic 1
ＧＲＡＰＨＩＣ １; |
GR1-6417B-10-00 |
— | ||
|
2
|
2
GR1-6417C-10-00
Graphic 2
ＧＲＡＰＨＩＣ ２; |
GR1-6417C-10-00 |
— | ||
|
3
|
3
GR1-6417D-20-00
Graphic 3
ＧＲＡＰＨＩＣ ３; |
GR1-6417D-20-00 |
— | ||
|
4
|
4
GR1-6417D-30-00
Graphic 3
ＧＲＡＰＨＩＣ ３; |
GR1-6417D-30-00 |
— | ||
|
5
|
5
GR1-6417E-20-00
Graphic 4
ＧＲＡＰＨＩＣ ４; |
GR1-6417E-20-00 |
— | ||
|
6
|
6
GR1-6417E-30-00
Graphic 4
ＧＲＡＰＨＩＣ ４; |
GR1-6417E-30-00 |
— | ||
|
7
|
7
GR1-6417F-20-00
Graphic 5
ＧＲＡＰＨＩＣ ５; |
GR1-6417F-20-00 |
— | ||
|
8
|
8
GR1-6417F-30-00
Graphic 5
ＧＲＡＰＨＩＣ ５; |
GR1-6417F-30-00 |
— | ||
|
9
|
9
GR1-6417G-30-00
Graphic 6
ＧＲＡＰＨＩＣ ６; |
GR1-6417G-30-00 |
— | ||
|
10
|
10
GR1-6417G-40-00
Graphic 6
ＧＲＡＰＨＩＣ ６; |
GR1-6417G-40-00 |
— | ||
|
11
|
11
GR1-6417G-50-00
Graphic 6
ＧＲＡＰＨＩＣ ６; |
GR1-6417G-50-00 |
— | ||
|
12
|
12
GR1-64114-10-00
Mark, Yamaha A
ＭＡＲＫ， ＹＡＭＡＨＡ Ａ; |
GR1-64114-10-00 |
— | ||
|
13
|
13
GR1-64123-00-00
Emblem,3
ＥＭＢＬＥＭ ３; |
GR1-64123-00-00 |
— | ||
|
14
|
14
GR1-64115-10-00
Mark, Yamaha 2
ＭＡＲＫ， ＹＡＭＡＨＡ Ｂ; |
GR1-64115-10-00 |
— | ||
|
15
|
15
EU0-65986-10-00 Tool SetＴＯＯＬ ＳＥＴ; |
EU0-65986-10-00 |
from US $33.20 |
||
| replacement | |||||
|
15
|
15
EU0-65986-13-00 Tool SetＴＯＯＬ ＳＥＴ; |
EU0-65986-13-00 |
from US $33.20 |
||
|
16
|
16
EU0-65901-01-00
Tool Bag
ＴＯＯＬ ＢＡＧ; |
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
16
|
16
EU0-65901-02-00 Tool BagＴＯＯＬ ＢＡＧ; |
EU0-65901-02-00 |
from US $13.55 |
||
|
16
|
16
EU0-65901-03-00 Bag, VinylＴＯＯＬ ＢＡＧ; |
EU0-65901-03-00 |
from US $17.43 |
||
