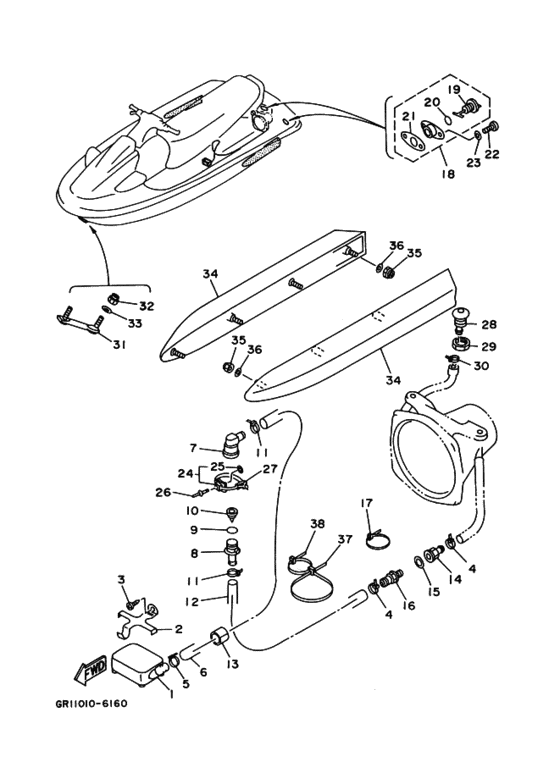

Hull. deck Diagram Yamaha 1100VN
- Model code
- GR12
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GD0-6761D-00-00 Strainer, BilgeＳＴＲＡＩＮＥＲ， ＢＩＬＧＥ; |
GD0-6761D-00-00 |
from US $28.62 |
||
|
2
|
2
EW2-67618-00-00 Base, Strainer BligeＢＡＳＥ， ＳＴＲＡＩＮＥＲ ＢＬＩＧＥ; |
EW2-67618-00-00 |
from US $24.51 |
||
|
3
|
3
97780-50112-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50112-00 |
US $1.98 |
||
| replacement | |||||
|
3
|
3
97780-50612-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50612-00 |
from US $1.98 |
||
|
4
|
4
90601-20005-00 BandＢＡＮＤ; |
90601-20005-00 |
from US $1.98 |
||
|
5
|
5
90601-20005-00 BandＢＡＮＤ; |
90601-20005-00 |
from US $1.98 |
||
|
6
|
6
90445-19M12-00 HoseＨＯＳＥ; |
90445-19M12-00 |
US $36.32 |
||
| replacement | |||||
|
6
|
6
90445-19M01-00 HoseＨＯＳＥ; |
90445-19M01-00 |
US $36.32 |
||
|
7
|
7
63M-51162-00-00 Joint, HoseＪＯＩＮＴ， ＨＯＳＥ; |
63M-51162-00-00 |
from US $32.44 |
||
| replacement | |||||
|
7
|
7
68N-5112T-00-00 Joint, HoseＪＯＩＮＴ， ＨＯＳＥ; |
68N-5112T-00-00 |
from US $32.44 |
||
|
8
|
8
63M-51165-00-00 Joint, Hose 2Ｊ０ＩＮＴ， ＨＯＳＥ ２; |
63M-51165-00-00 |
US $6.68 |
||
|
9
|
9
93210-22ME5-00 O-RingＯ−ＲＩＮＧ; |
93210-22ME5-00 |
from US $2.83 |
||
|
10
|
10
63M-5316M-00-00 Valve 1ＶＡＬＶＥ １; |
63M-5316M-00-00 |
from US $28.62 |
||
|
11
|
11
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
12
|
12
90445-19M08-00 Hose (L500)ＨＯＳＥ; |
90445-19M08-00 |
US $36.32 |
||
| replacement | |||||
|
12
|
12
90445-19M01-00 HoseＨＯＳＥ; |
90445-19M01-00 |
US $36.32 |
||
|
13
|
13
GJ1-67578-10-00 Packing, Hose 2ＰＡＣＫＩＮＧ， ＨＯＳＥ ２; |
GJ1-67578-10-00 |
from US $5.67 |
||
|
14
|
14
90604-80759-00 Connection, Thru-Hull 1/4ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
90604-80759-00 |
from US $15.30 |
||
|
15
|
15
90430-13909-00 GasketＧＡＳＫＥＴ; |
90430-13909-00 |
from US $1.90 |
||
|
16
|
16
90604-80775-00 Through, Hull ConnectionＴＨＲＯＵＧＨ， ＨＵＬＬ ＣＯＮＮＥＣＴＩＯＮ; |
90604-80775-00 |
from US $14.17 |
||
|
17
|
17
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
17
|
17
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
18
|
18
EU0-62280-00-00 Drain Plug AssyＤＲＡＩＮ ＰＬＵＧ ＡＳＳＹ; |
EU0-62280-00-00 |
from US $43.24 |
||
|
19
|
19
EU0-62282-00-00 Plug, DrainＰＬＵＧ， ＤＲＡＩＮ; |
EU0-62282-00-00 |
from US $3.26 |
||
|
20
|
20
EU0-62283-00-00 O-RingＯ−ＲＩＮＧ; |
EU0-62283-00-00 |
from US $1.28 |
||
|
21
|
21
EU0-62285-01-00 Packing Drain (Eu0)ＰＡＣＫＩＮＧ， ＤＲＡＩＮ; |
EU0-62285-01-00 |
from US $5.10 |
||
|
22
|
22
97780-50520-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50520-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
97780-50620-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50620-00 |
from US $1.56 |
||
|
23
|
23
92990-05200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-05200-00 |
from US $1.56 |
||
|
24
|
24
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ; |
90600-91736-00 |
from US $1.98 |
||
|
25
|
25
90201-05925-00
Washer, Plain
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05925-00 |
— | ||
|
26
|
26
90267-48931-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48931-00 |
from US $3.28 |
||
| replacements | |||||
|
26
|
26
90267-48934-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48934-00 |
from US $3.59 |
||
|
26
|
26
90267-489U9-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-489U9-00 |
from US $3.83 |
||
|
27
|
27
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
27
|
27
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
28
|
28
FN8-6269B-00-00 SpoutＳＰＯＵＴ; |
FN8-6269B-00-00 |
from US $15.87 |
||
|
29
|
29
EU0-61652-00-00 NutＮＵＴ; |
EU0-61652-00-00 |
from US $6.94 |
||
|
30
|
30
90600-91755-00 ClampＣＬＩＰ; |
90600-91755-00 |
from US $4.68 |
||
|
31
|
31
FN8-61624-01-00 Boweye 1 (S)ＢＯＷＥＹＥ １ ; Ｓ |
FN8-61624-01-00 |
US $42.64 |
||
| replacement | |||||
|
31
|
31
FN8-U1624-00-00
Bow Eye 1
ＢＯＷＥＹＥ １ ; Ｓ |
FN8-U1624-00-00 |
— | ||
|
32
|
32
95720-08300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-08300-00 |
from US $4.11 |
||
|
33
|
33
92990-08200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-08200-00 |
from US $1.18 |
||
|
34
|
34
GJ3-6883M-20-00
Stabilizer
ＳＴＡＢＩＬＩＺＥＲ; |
GJ3-6883M-20-00 |
— | ||
|
35
|
35
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
36
|
36
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.18 |
||
|
37
|
37
90601-20016-00 BandＢＡＮＤ; |
90601-20016-00 |
from US $3.97 |
||
|
38
|
38
90601-20021-00 BandＢＡＮＤ; |
90601-20021-00 |
US $4.39 |
||
